System Diagram

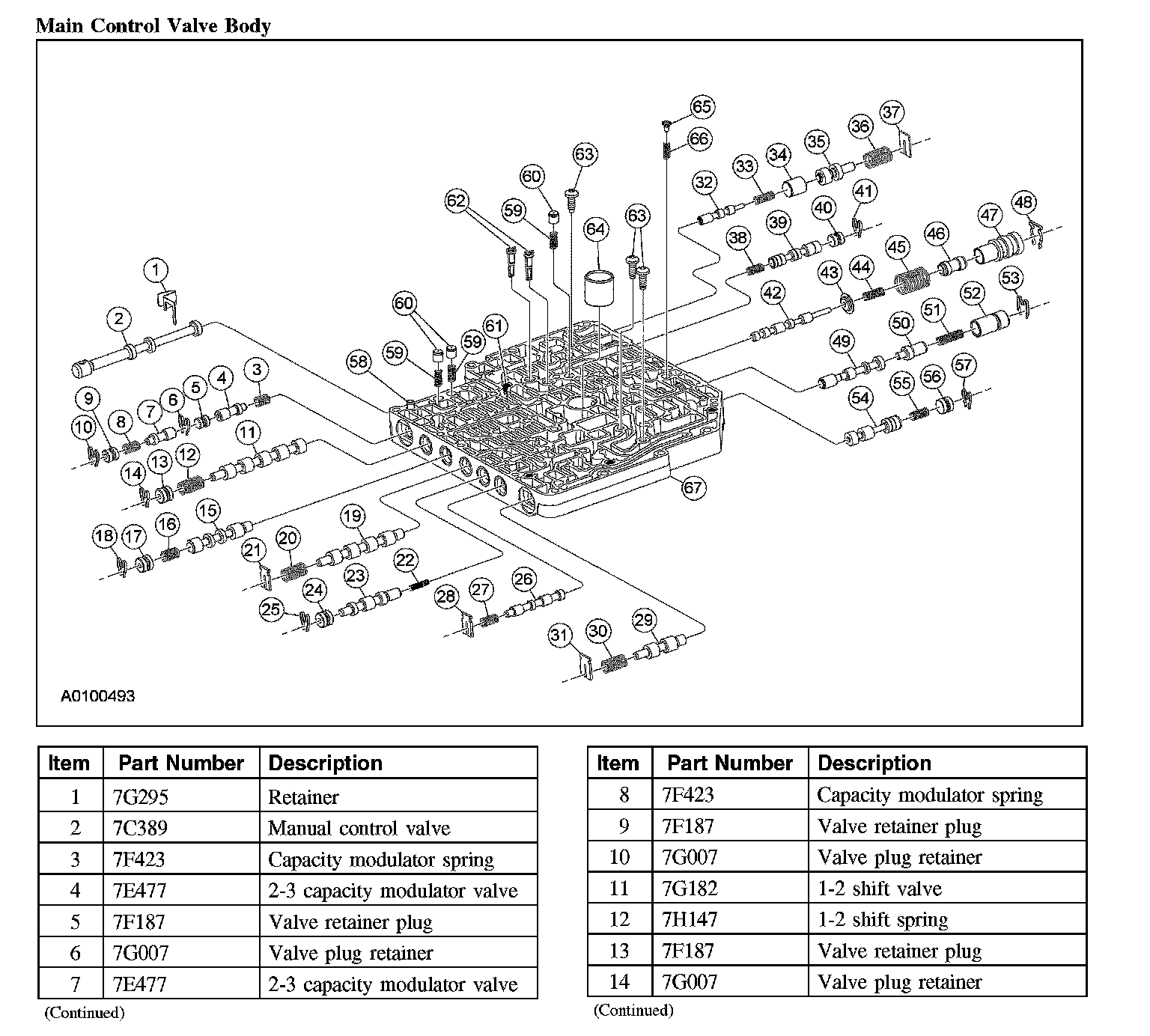

Main Control Valve Body

Main Control Valve Body (Part 1):




Main Control Valve Body (Part 2):

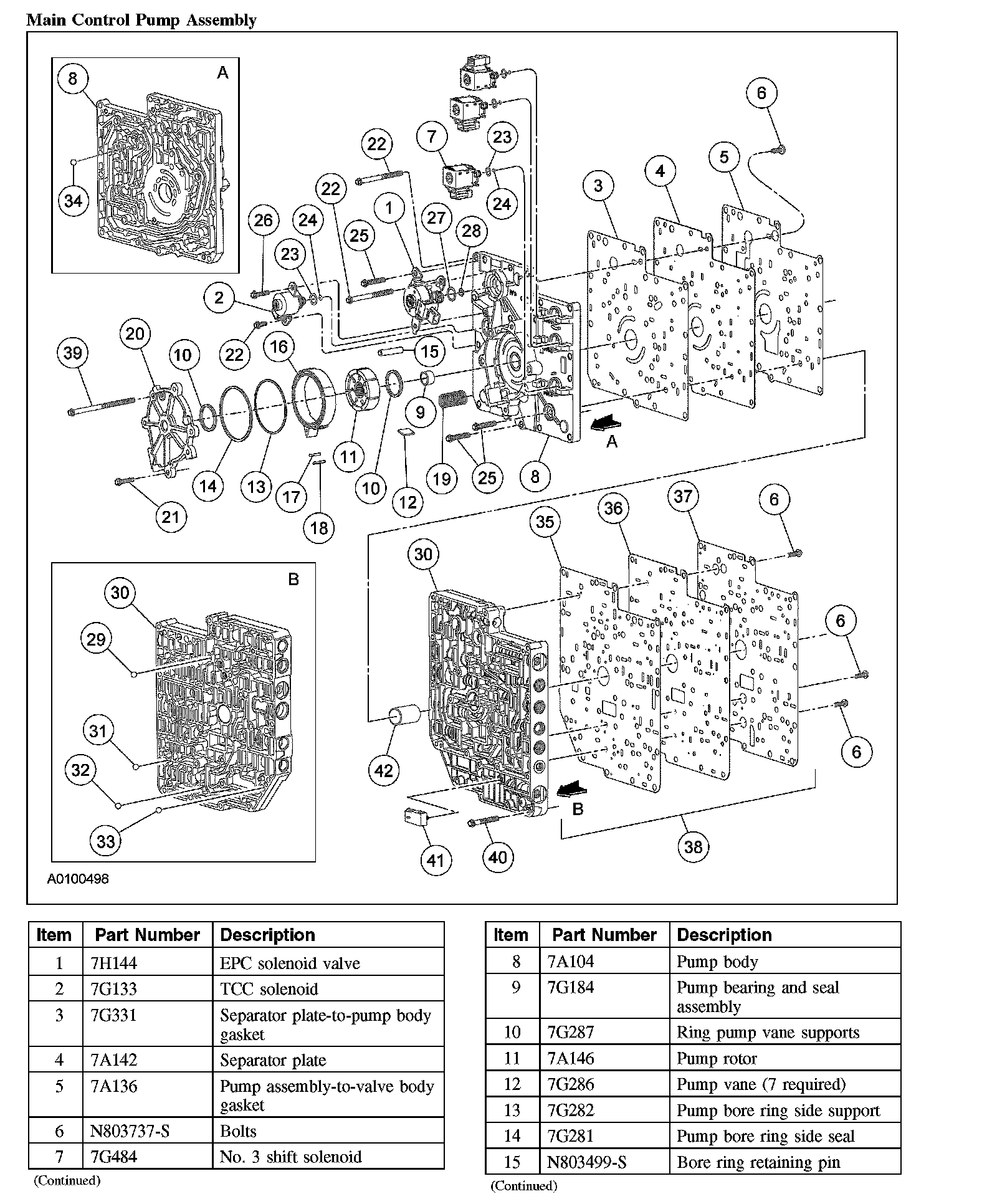

Main Control Pump Assembly

Main Control Pump Assembly (Part 1):




Main Control Pump Assembly (Part 2):
