Speed Control Servo Connector

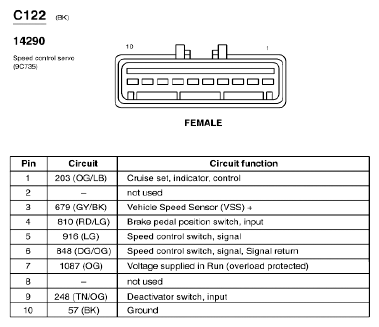

Fig 1: Speed Control Servo Connector End View (C122)

G07850133

Courtesy of FORD MOTOR CO.
