Symbols

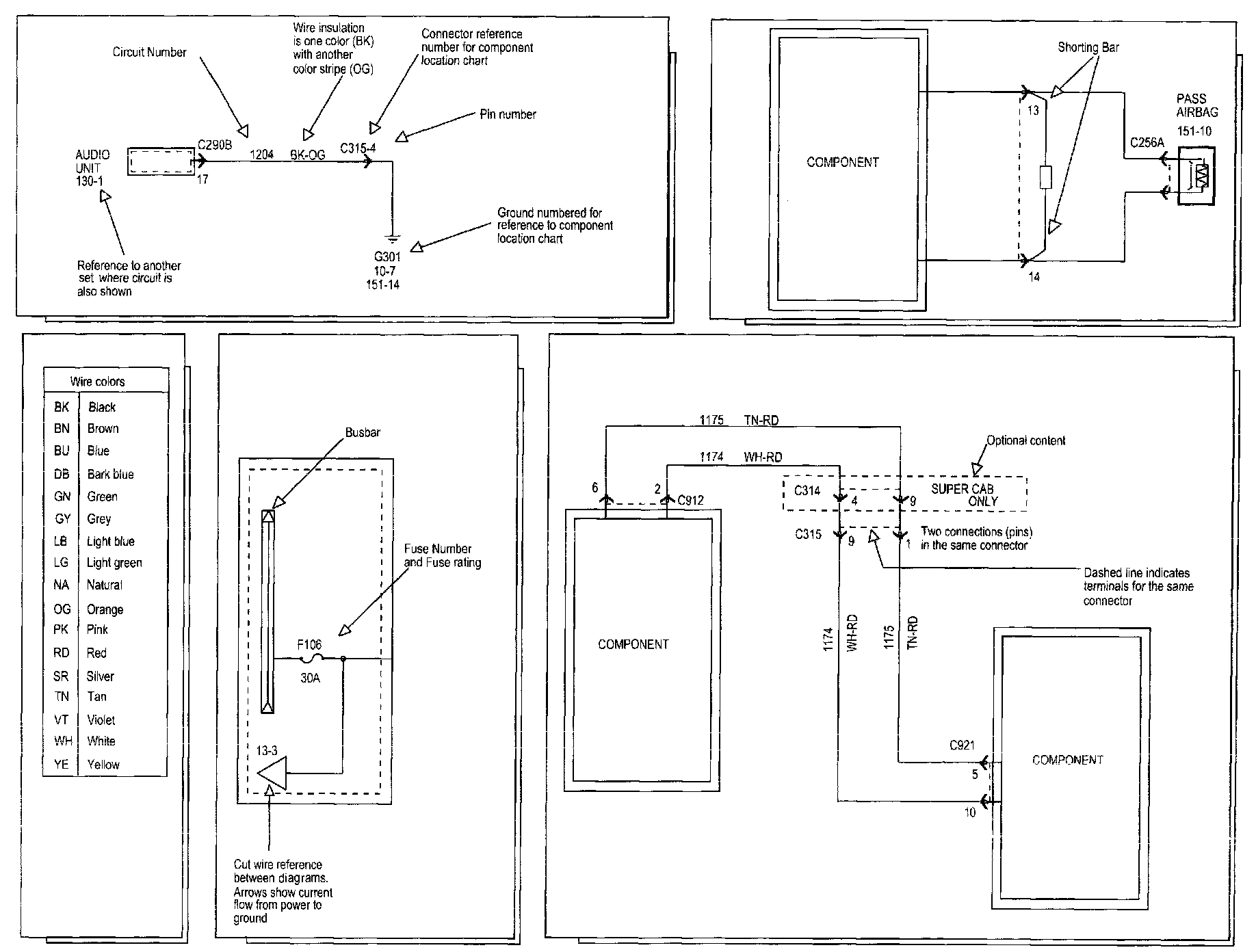

Symbols (Part 1):

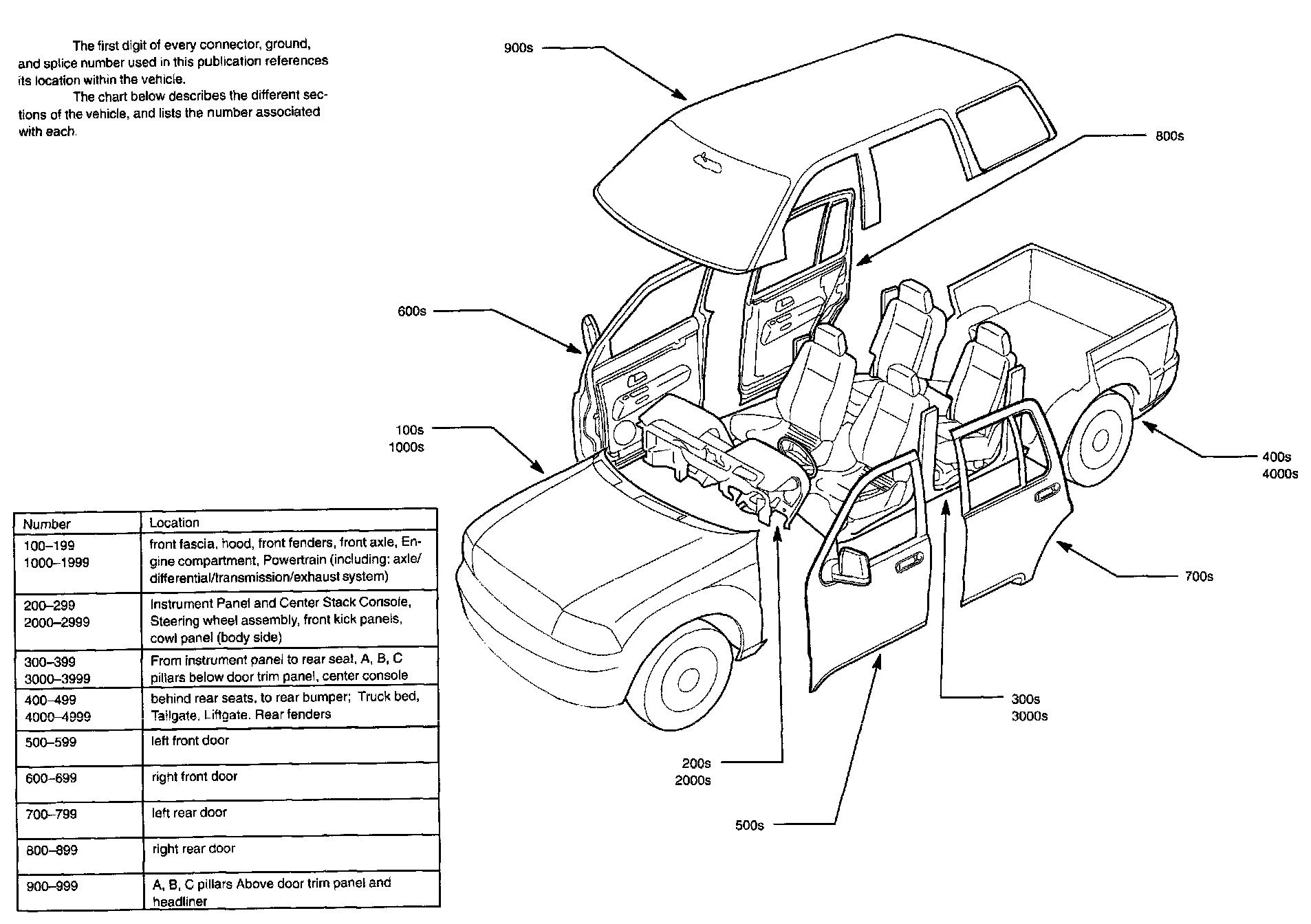

Symbols (Part 2):

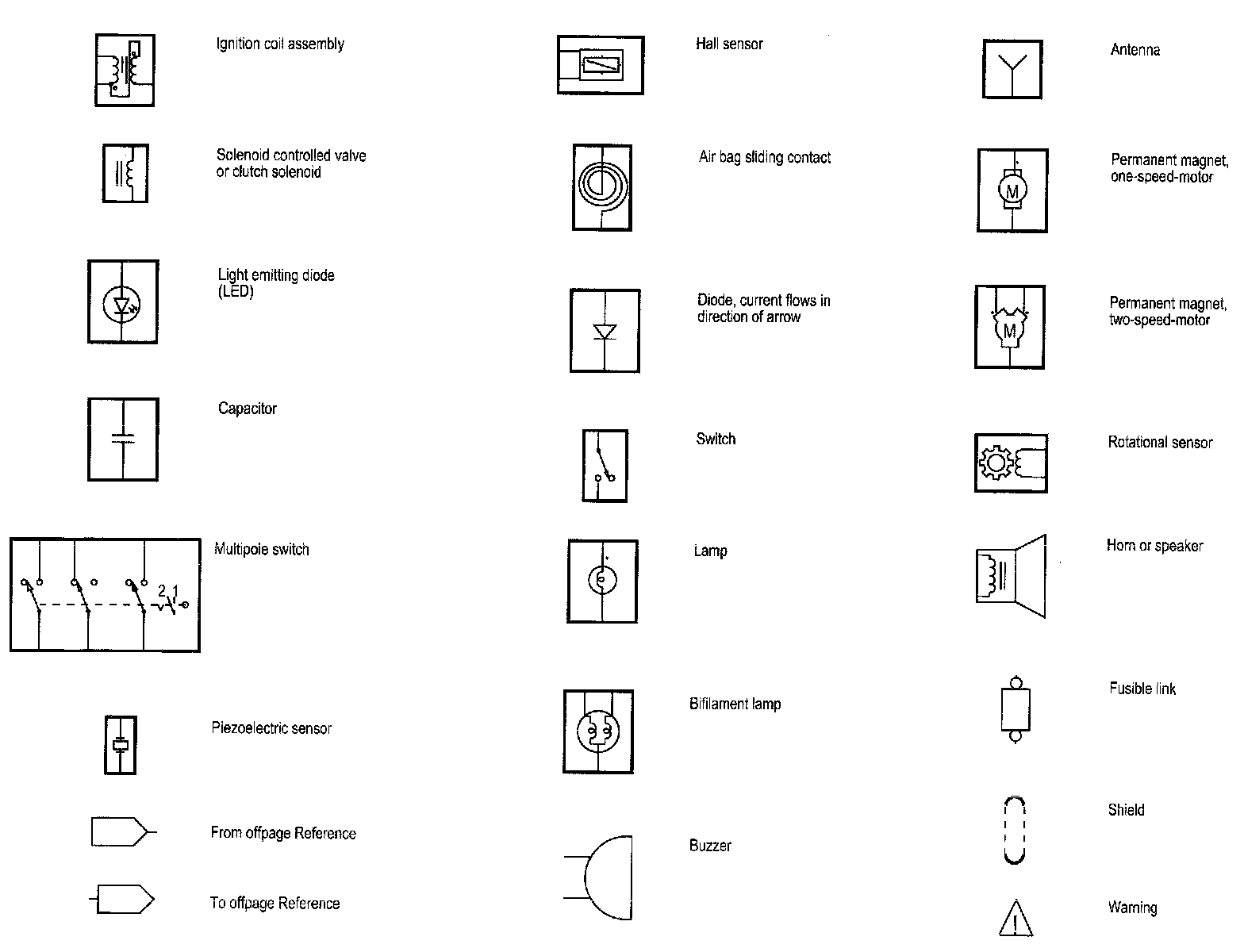

Symbols (Part 3):

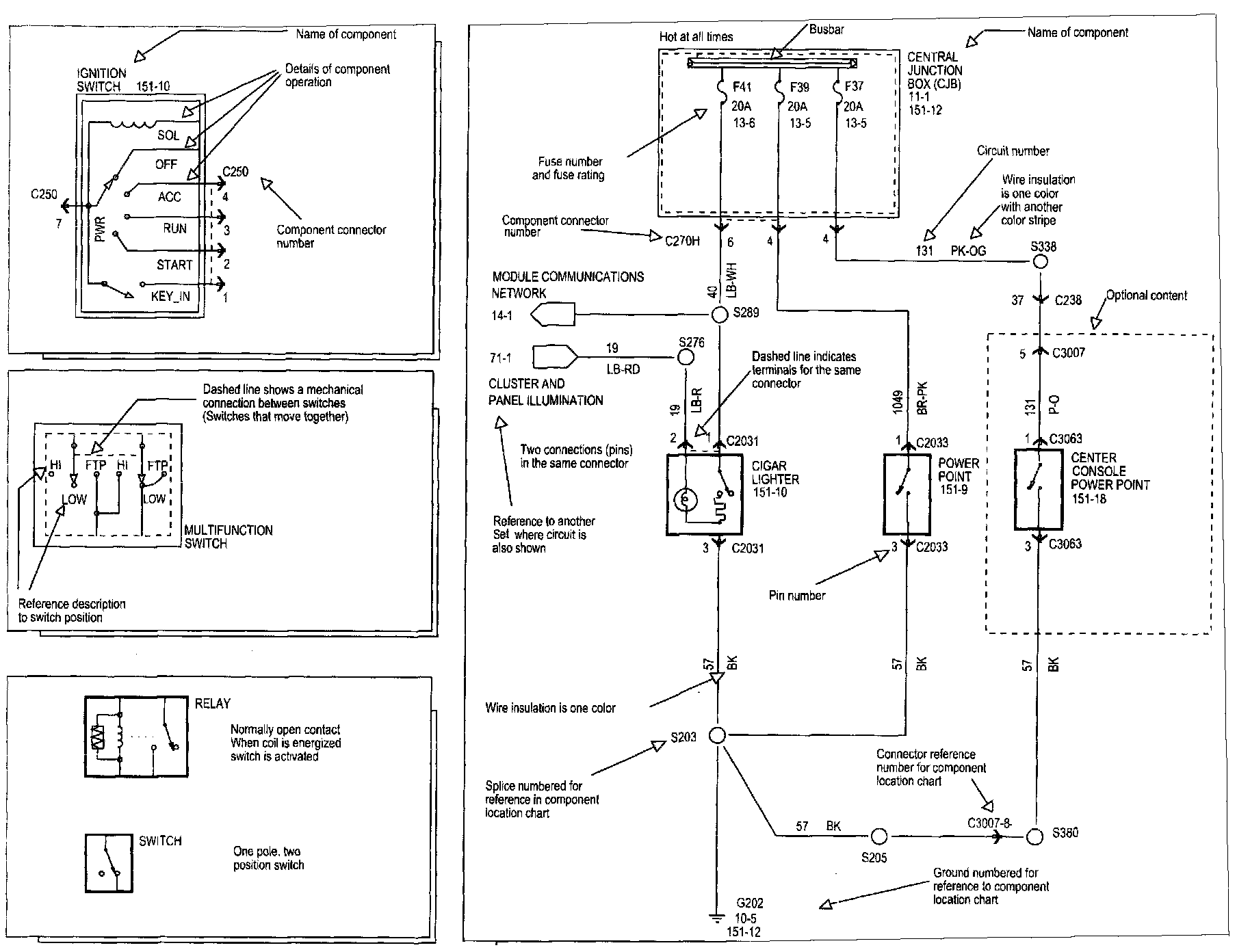

Symbols (Part 4):






Symbols (Part 5):
