Trunk / Liftgate
Trunk / Liftgate

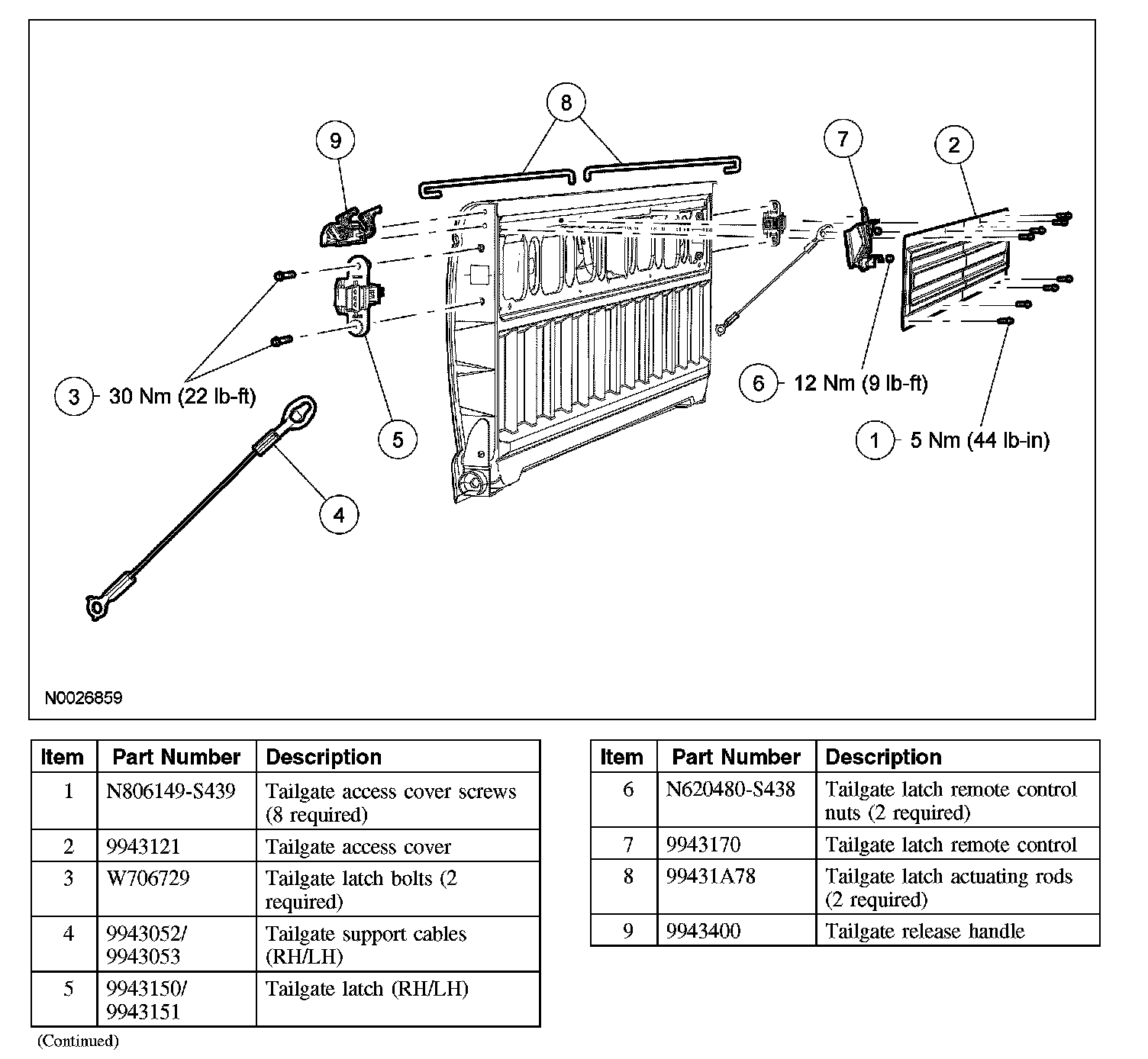

TAILGATE HANDLE, LOCK AND LATCHES - EXPLODED VIEW
Removal and Installation
1.
For additional information, refer to the procedures.
