Home >> Ford >> 2007 >> Ranger 4WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

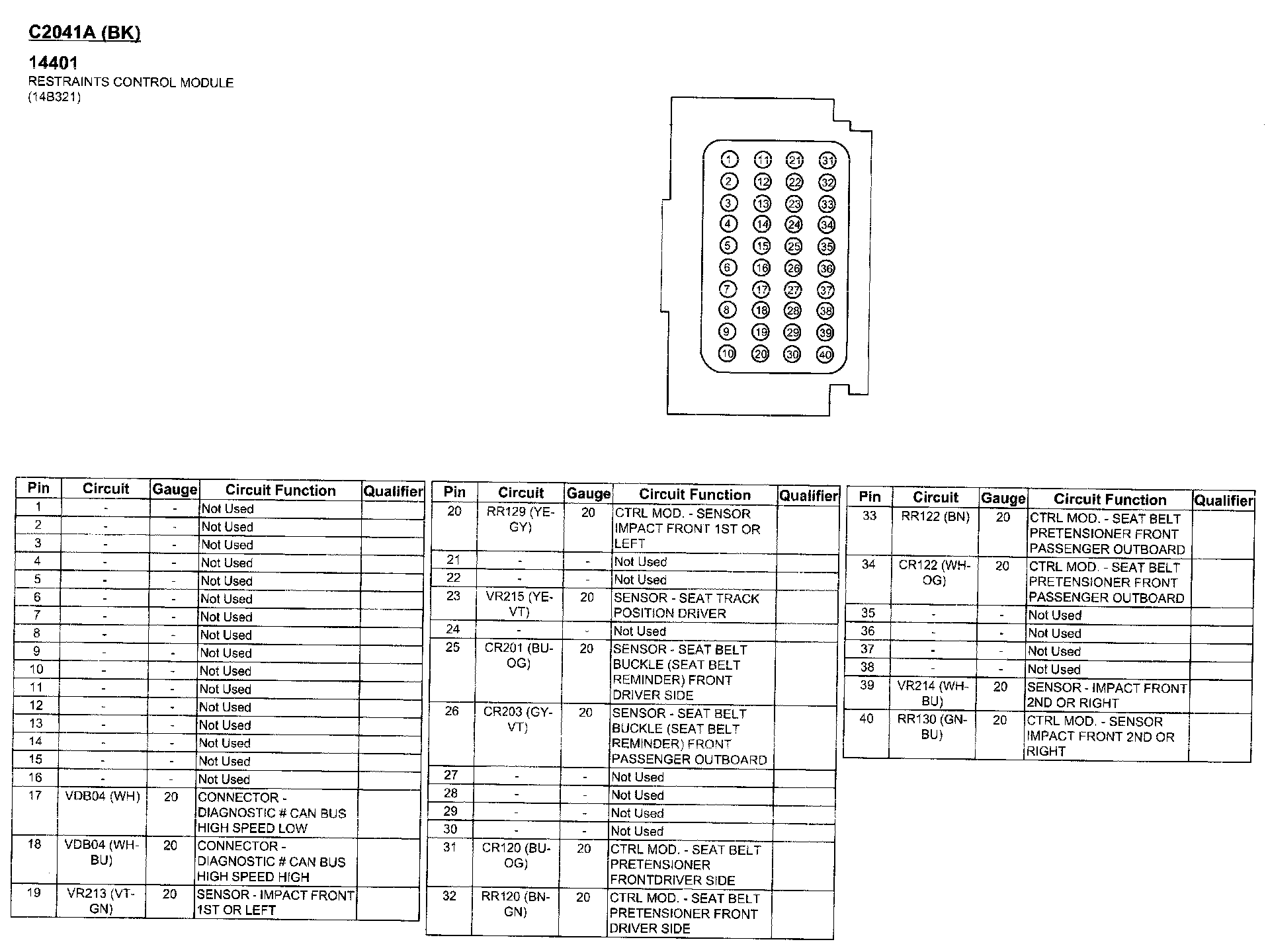

C2041A:

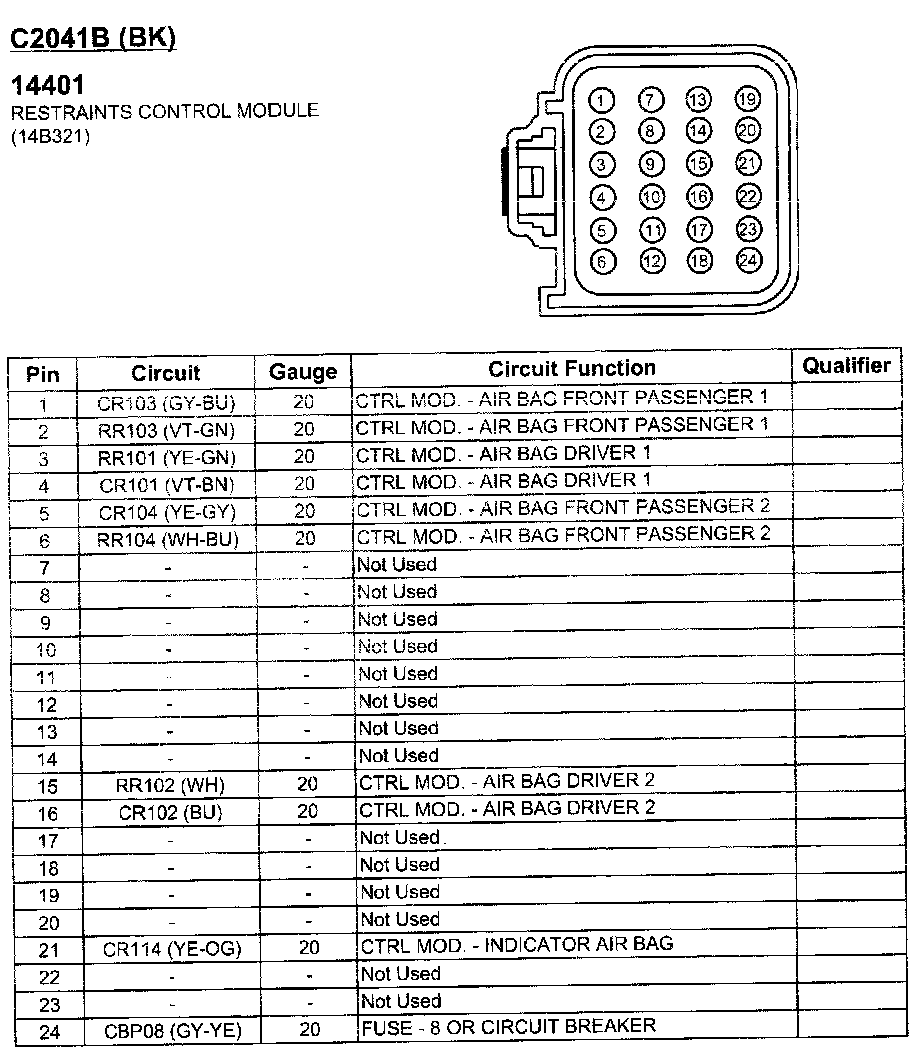

C2041B:
