Home >> Ford >> 2007 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle

Manual Transmission/Transaxle

Exploded Views

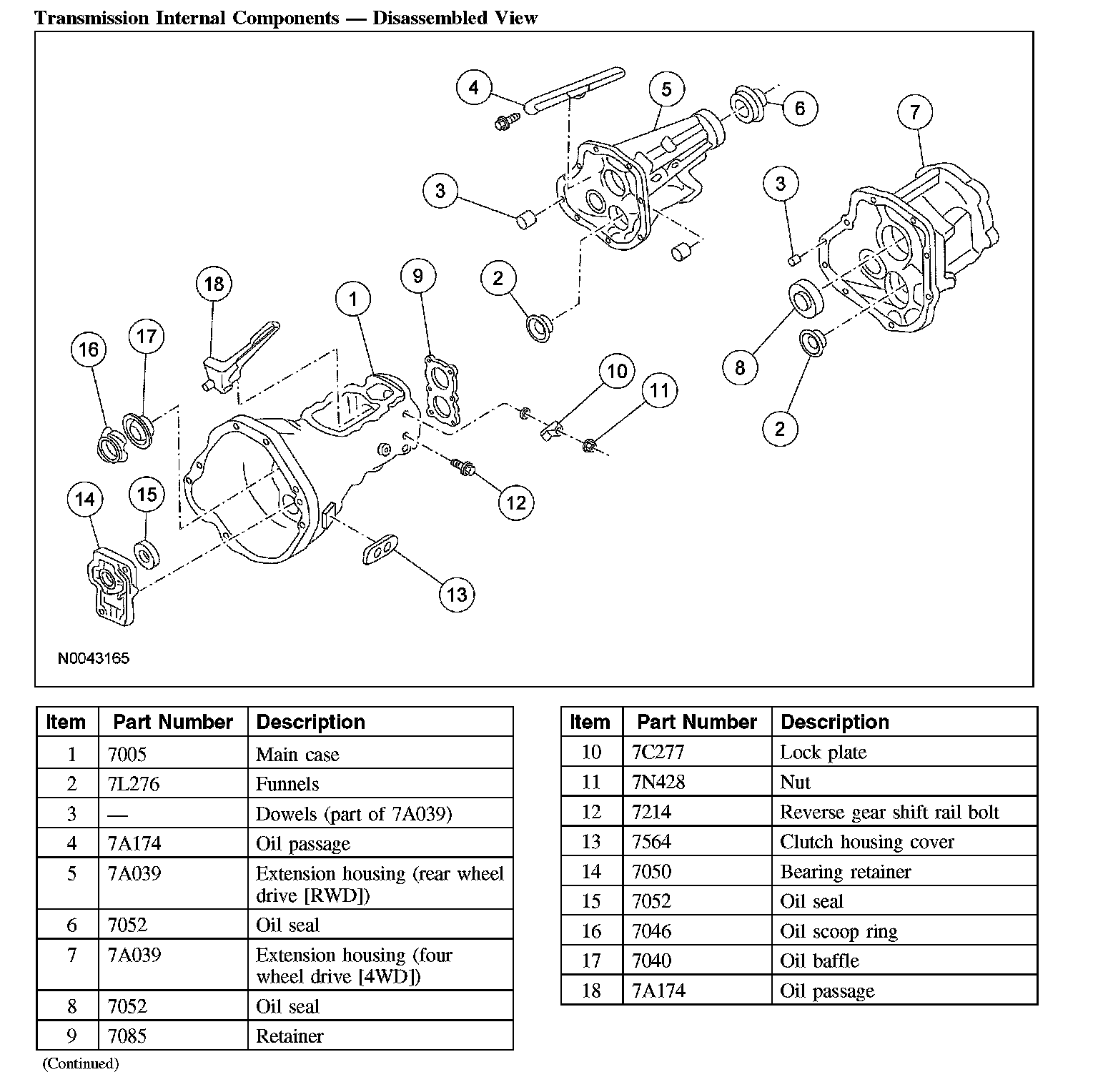

Transmission Internal Components - Disassembled View (Part 1):

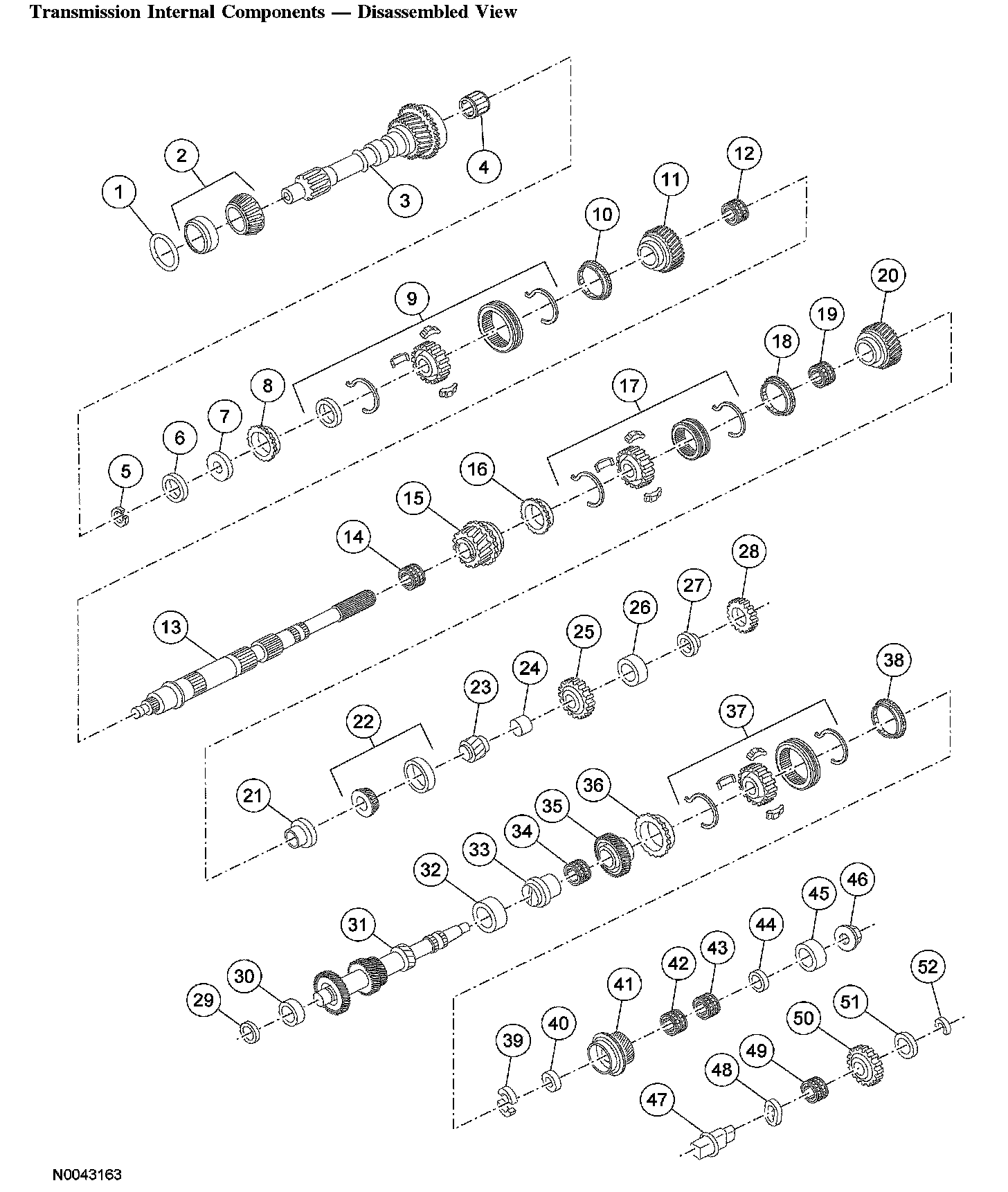

Transmission Internal Components - Disassembled View (Part 2):

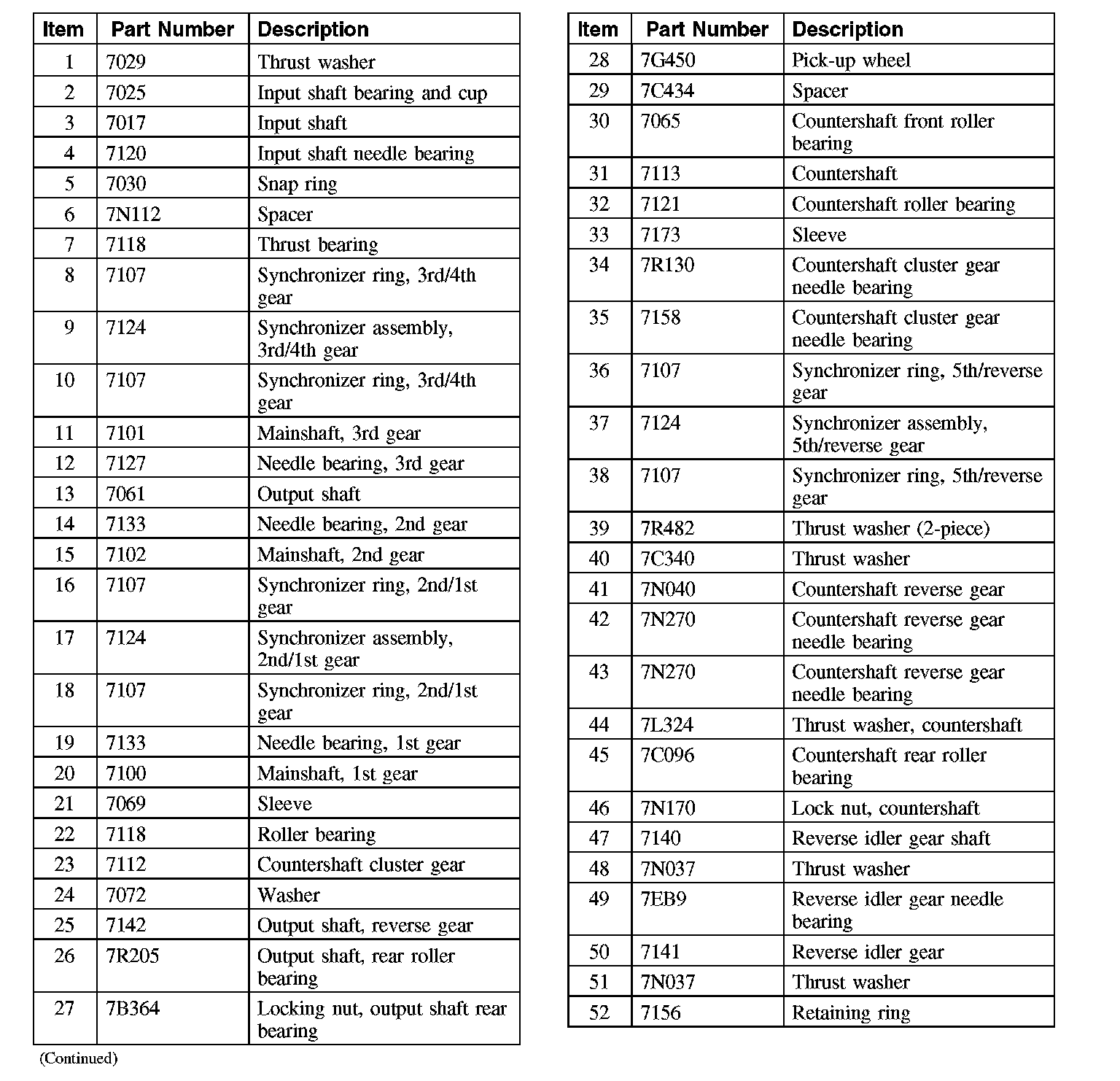

Transmission Internal Components - Disassembled View (Part 3):

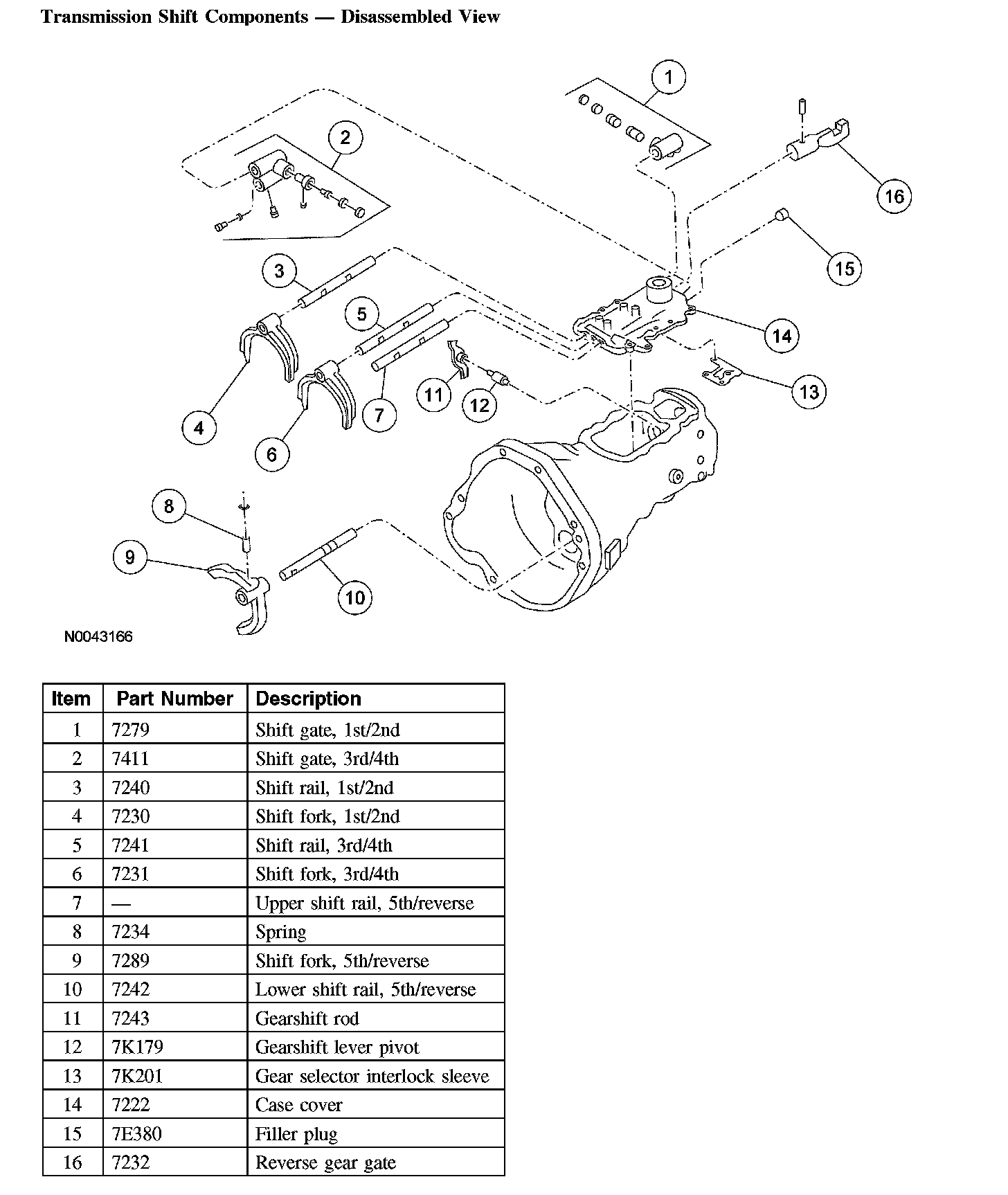

Transmission Shift Components - Disassembled View:
