Body Control Systems: Testing and Inspection
DIAGNOSTIC TROUBLE CODE (DTC) CHART

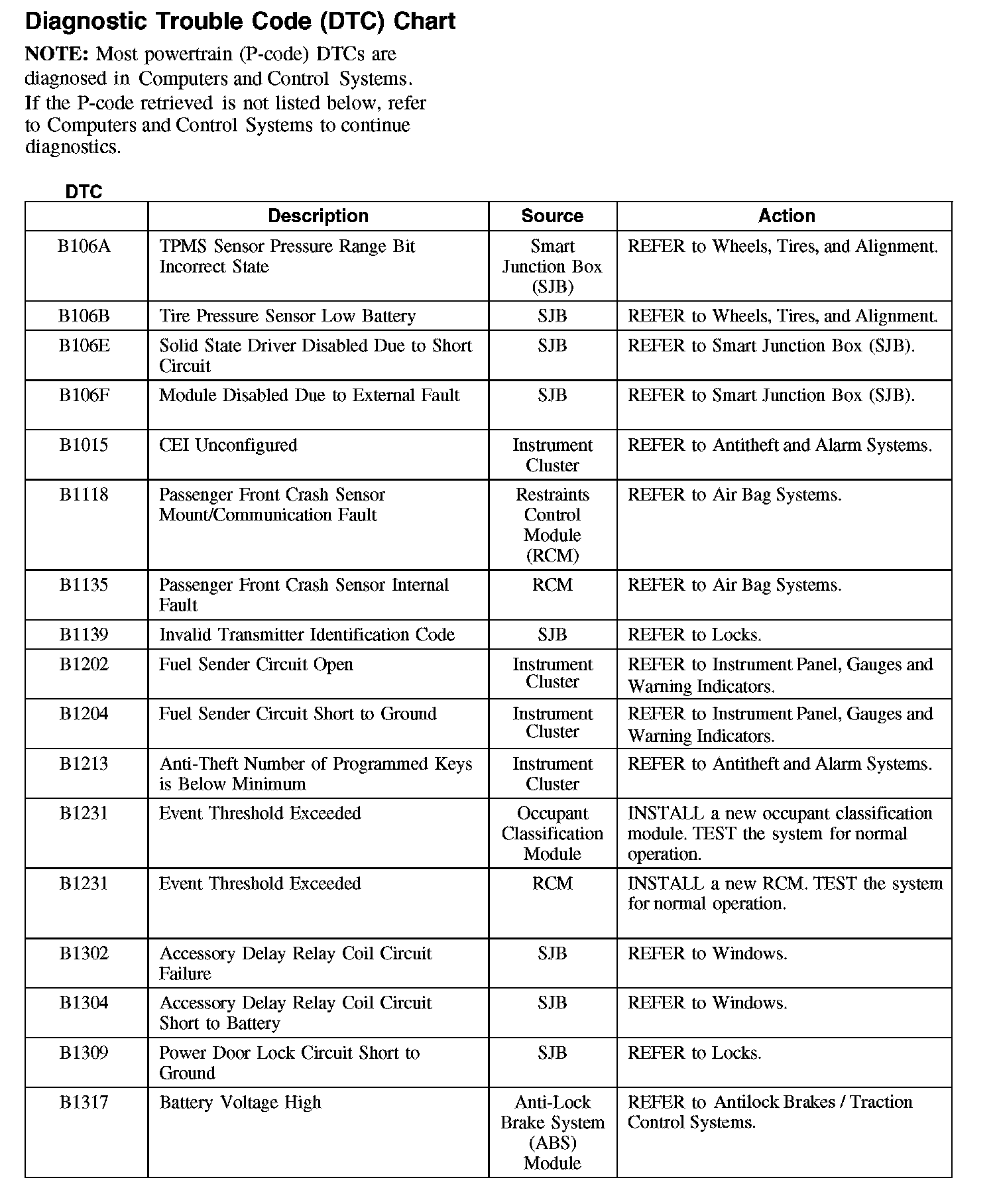

B106A-B1317:

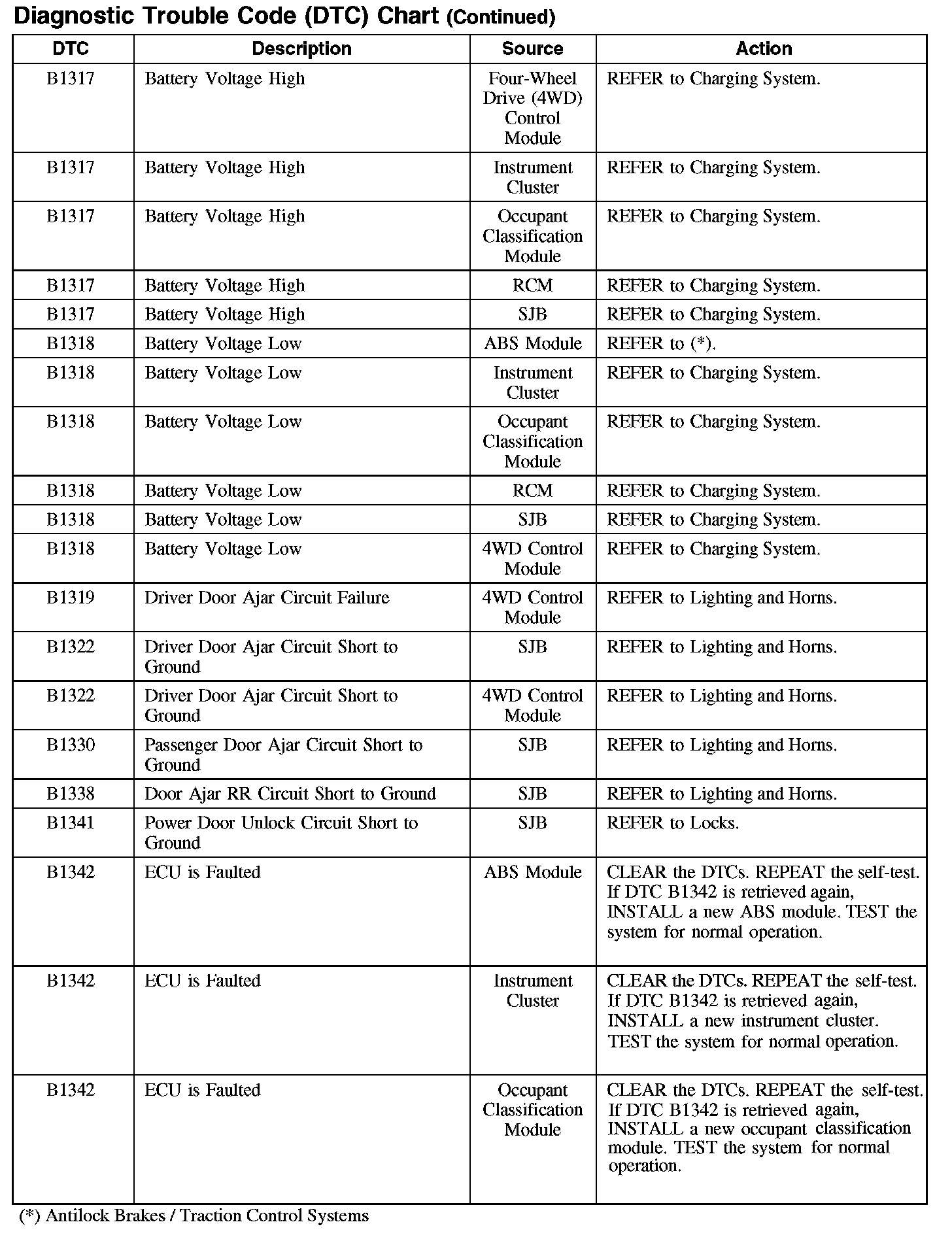

B1317-B1342:

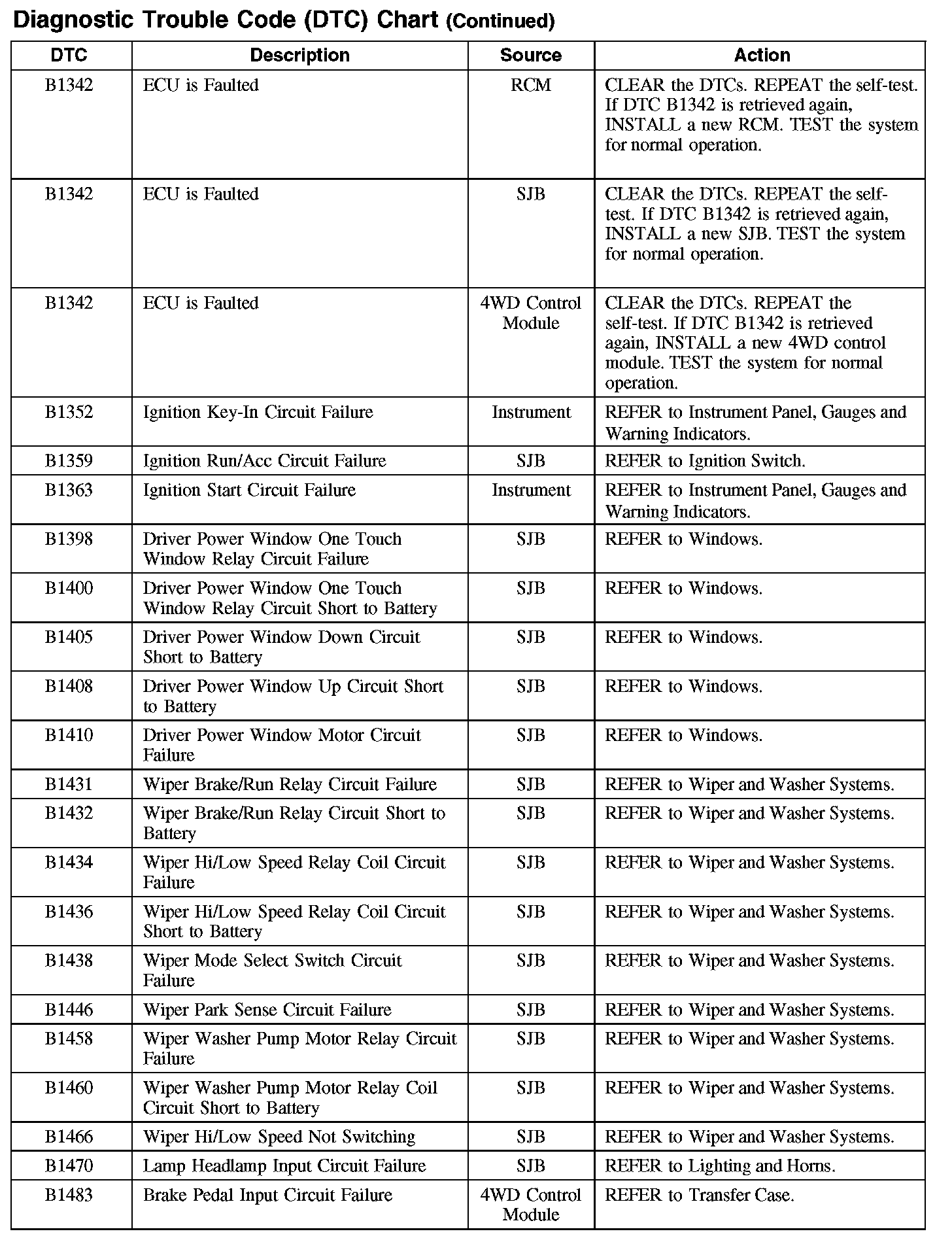

B1342-B1483:

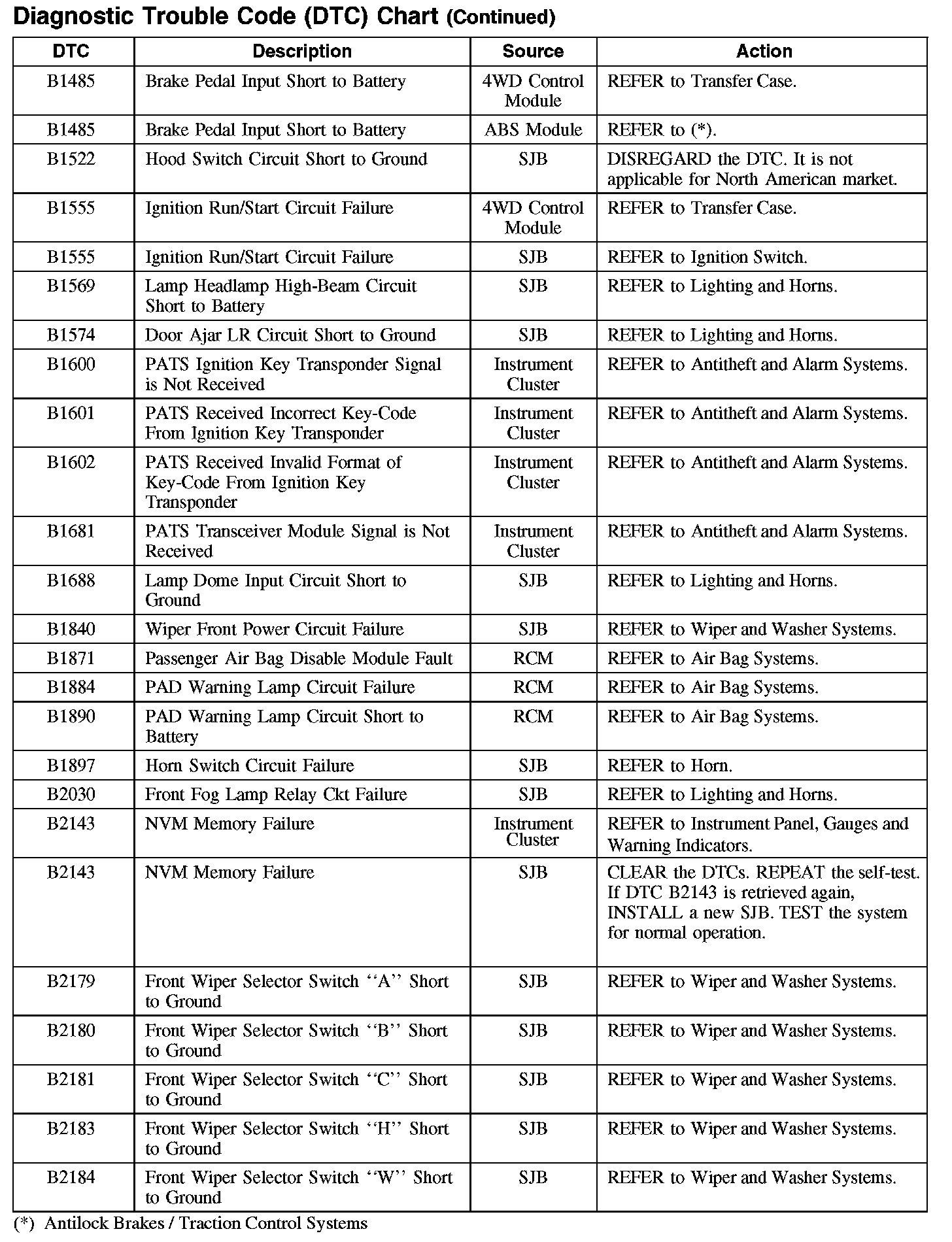

B1485-B2184:

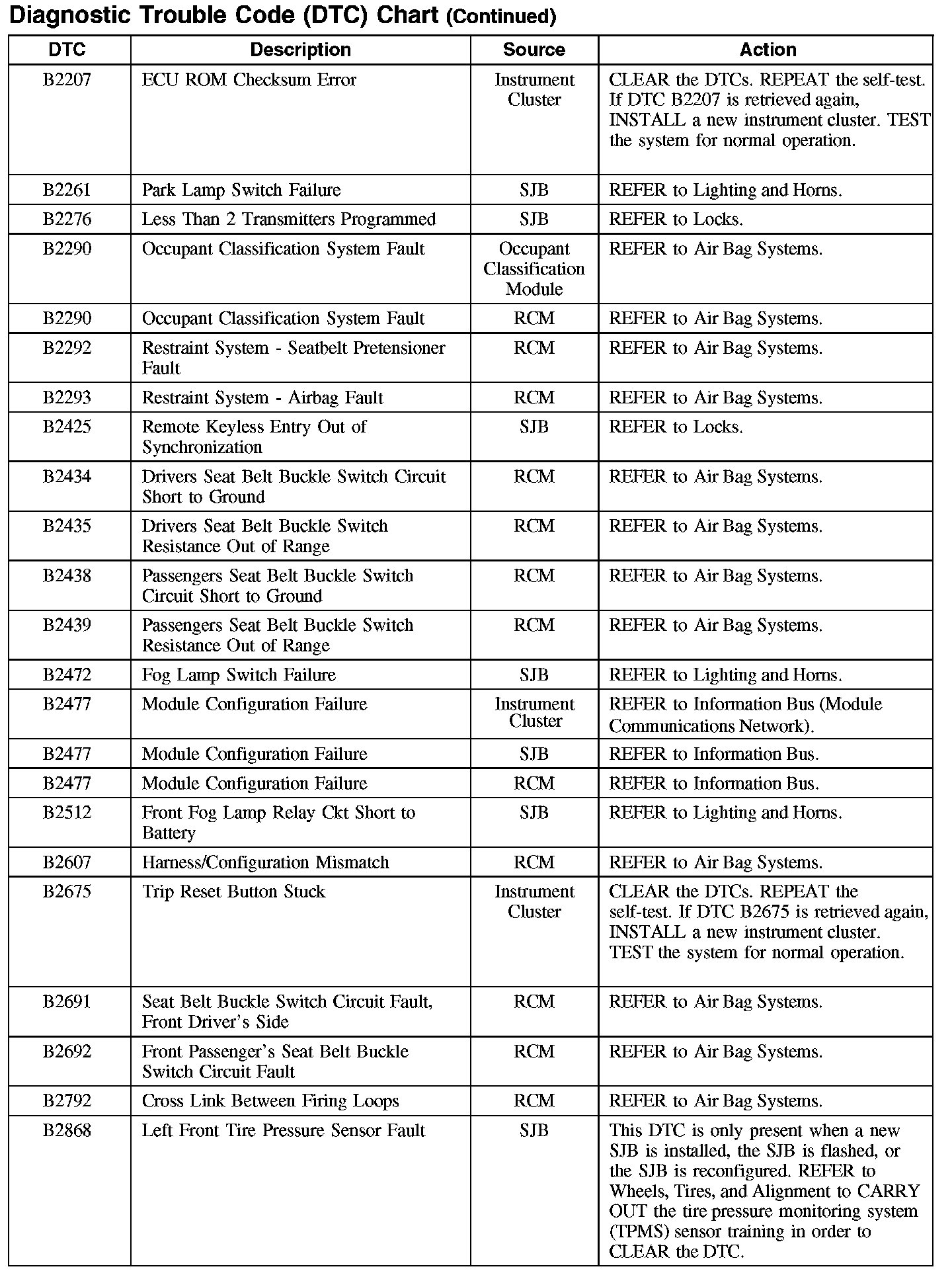

B2207-B2868:

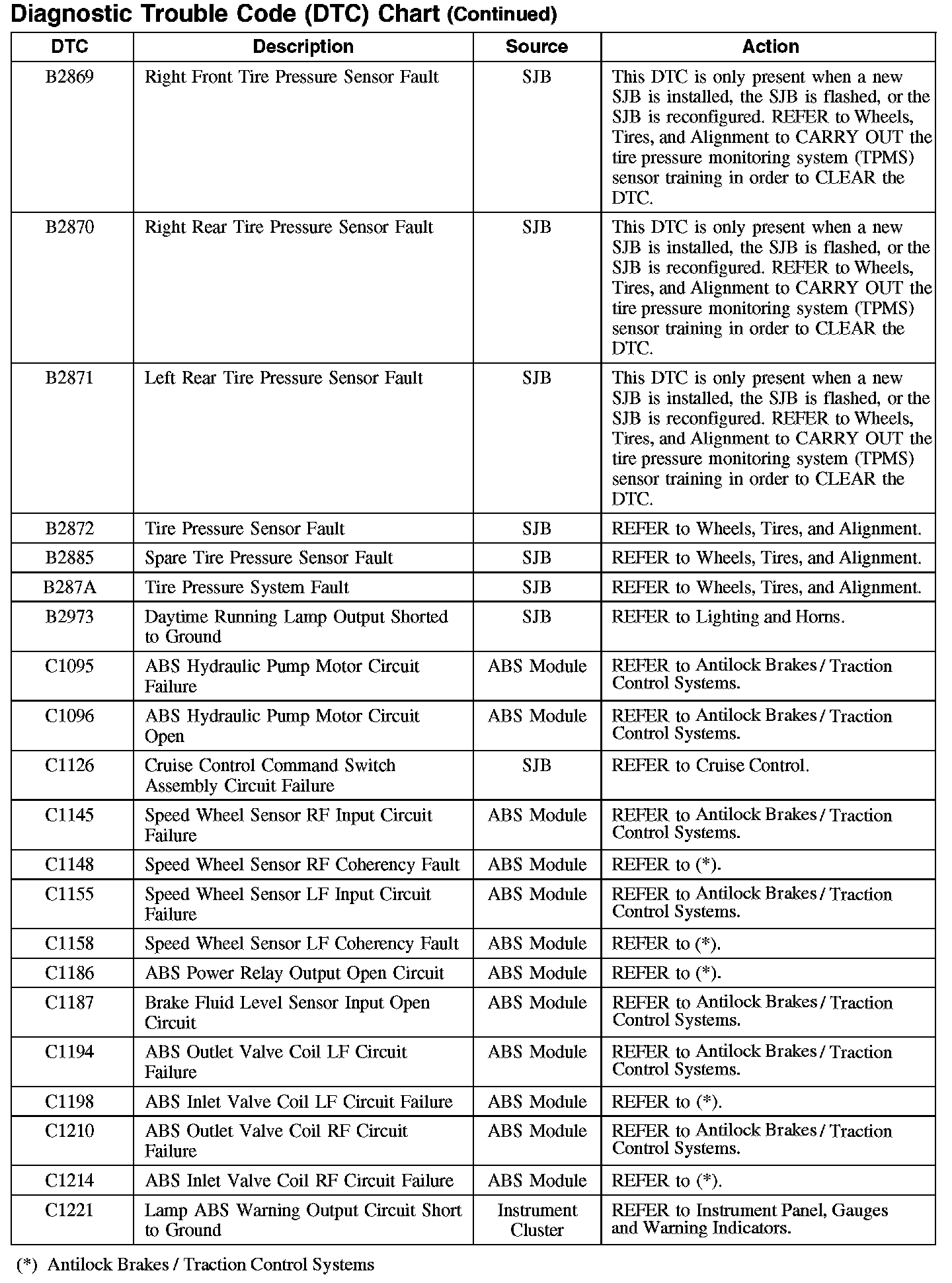

B2869-B2973 / C1095-C1221:

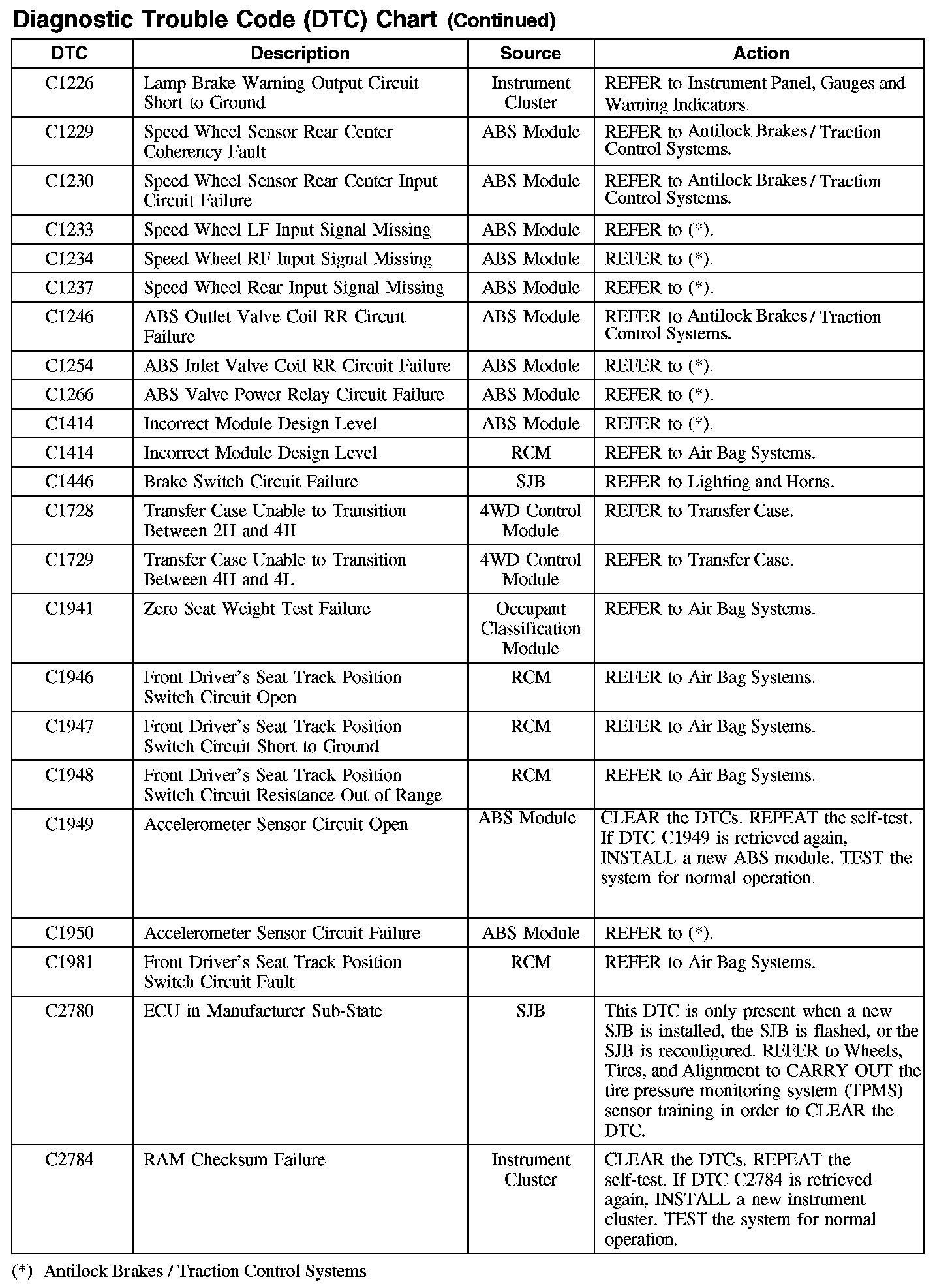

C1226-C2784:

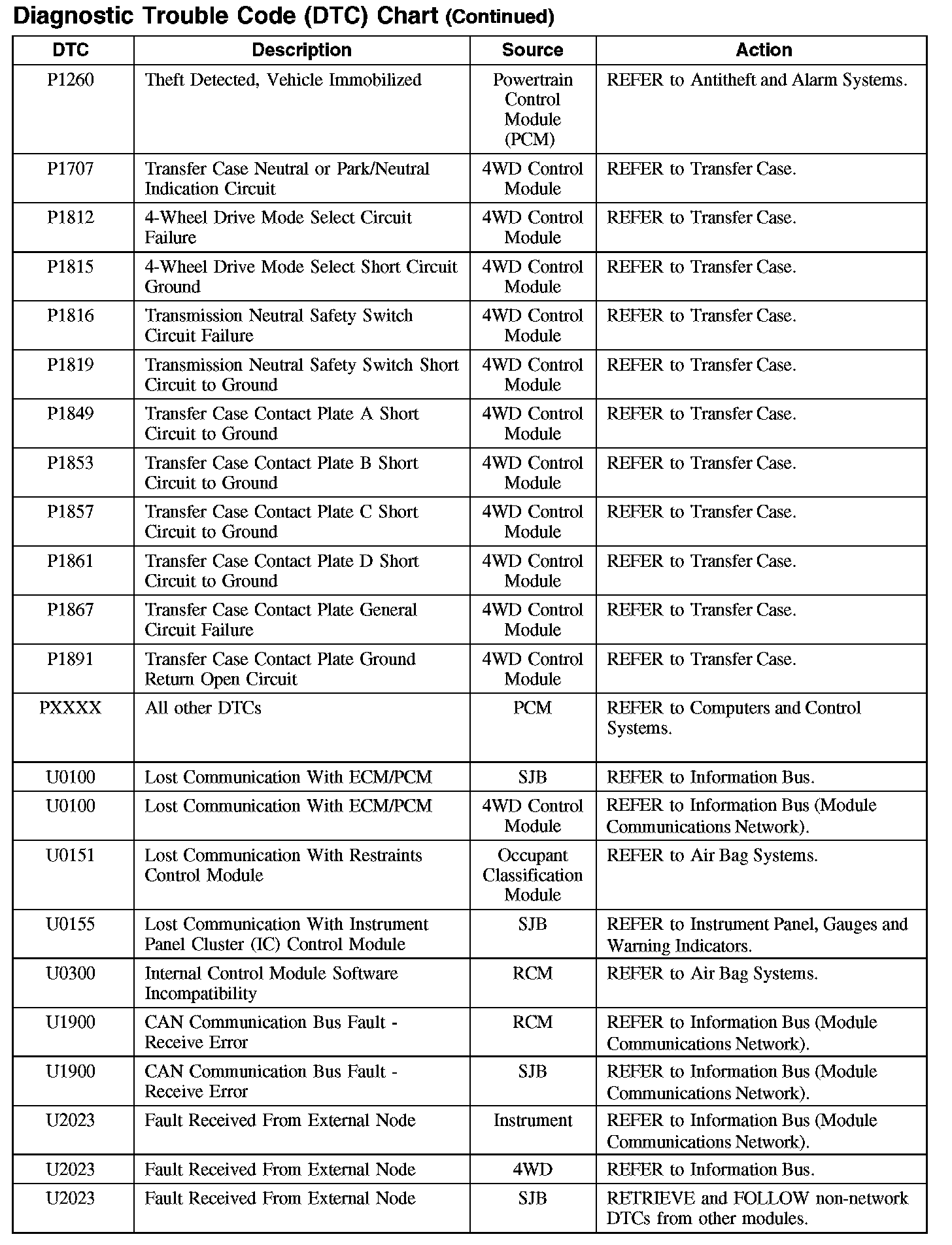

P1260-PXXXX / U0100-U2023:

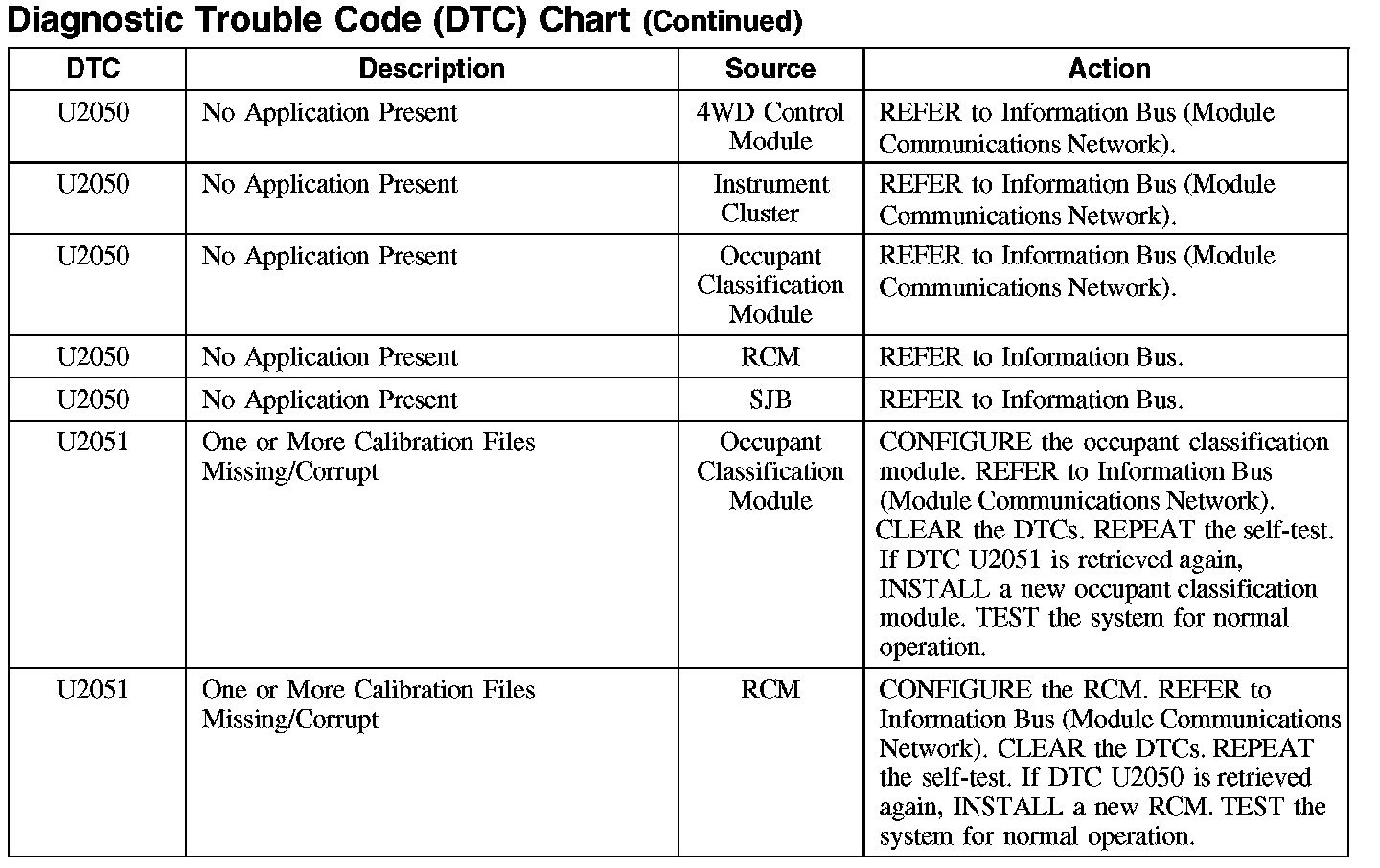

U2050-U2051:
