Engine Ignition Components - Exploded View

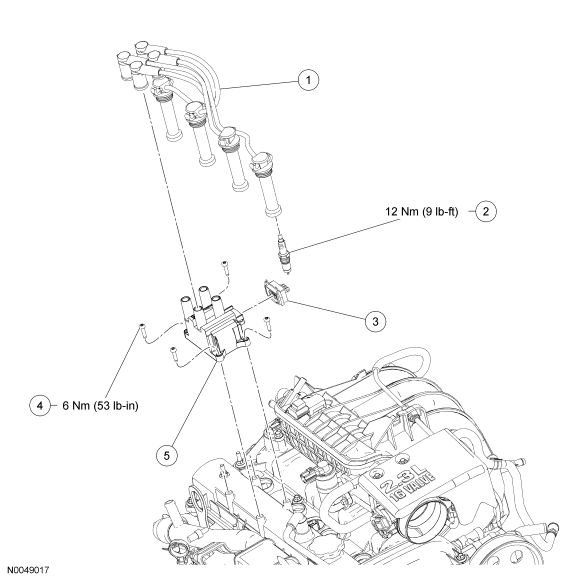

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	12280	Spark plug wire (4 required)
2	12405	Spark plug (4 required)
3	-	Ignition coil electrical connector (part of 12B637)
4	W706995	Ignition coil bolt (4 required)
5	12026	Ignition coil

1. For additional information, refer to the appropriate procedures.
