Engine Control Module: Locations

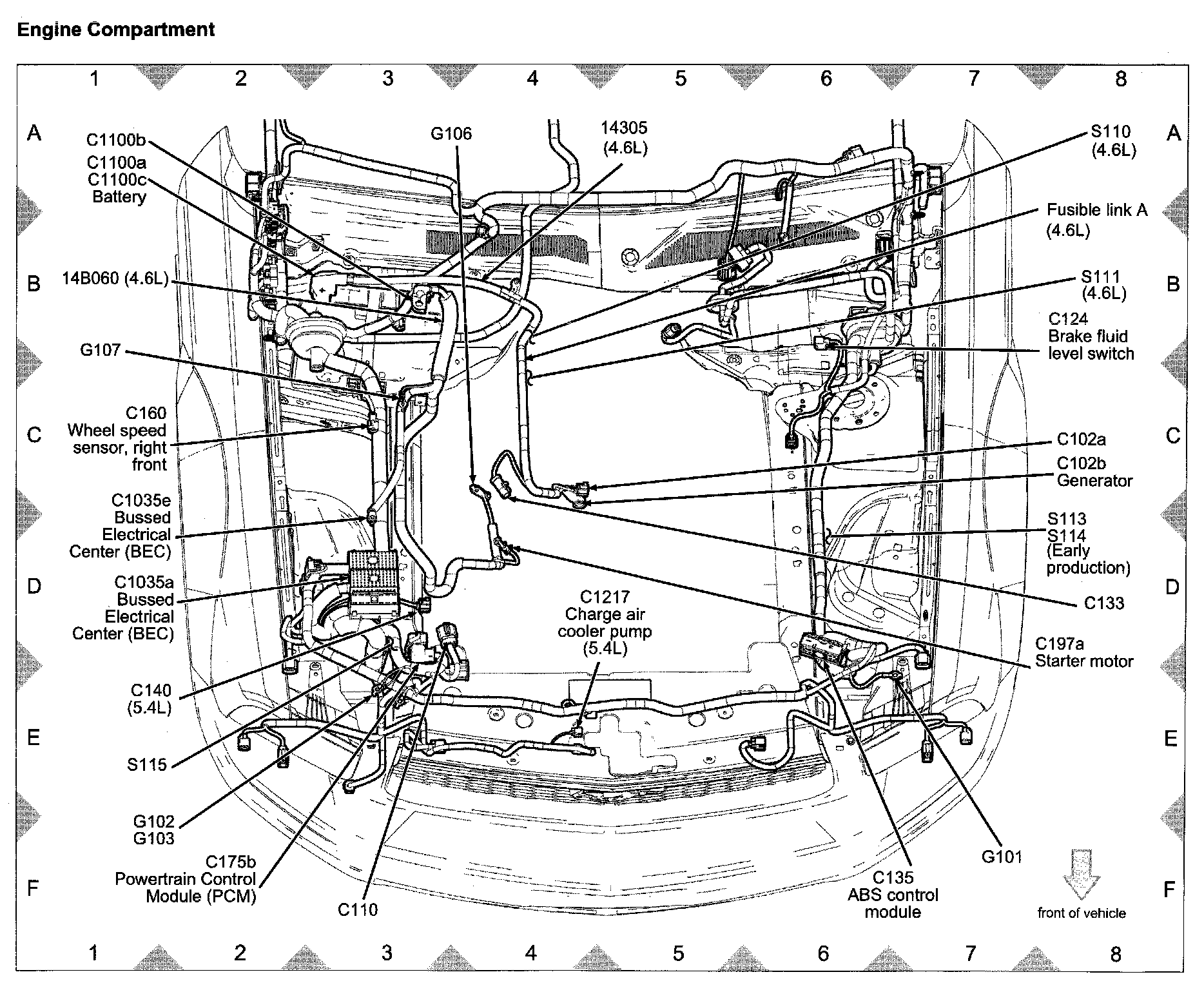

View 151-2 (Engine Compartment):



View 151-7 (Engine, Rear - 4.6L):
