Flywheel

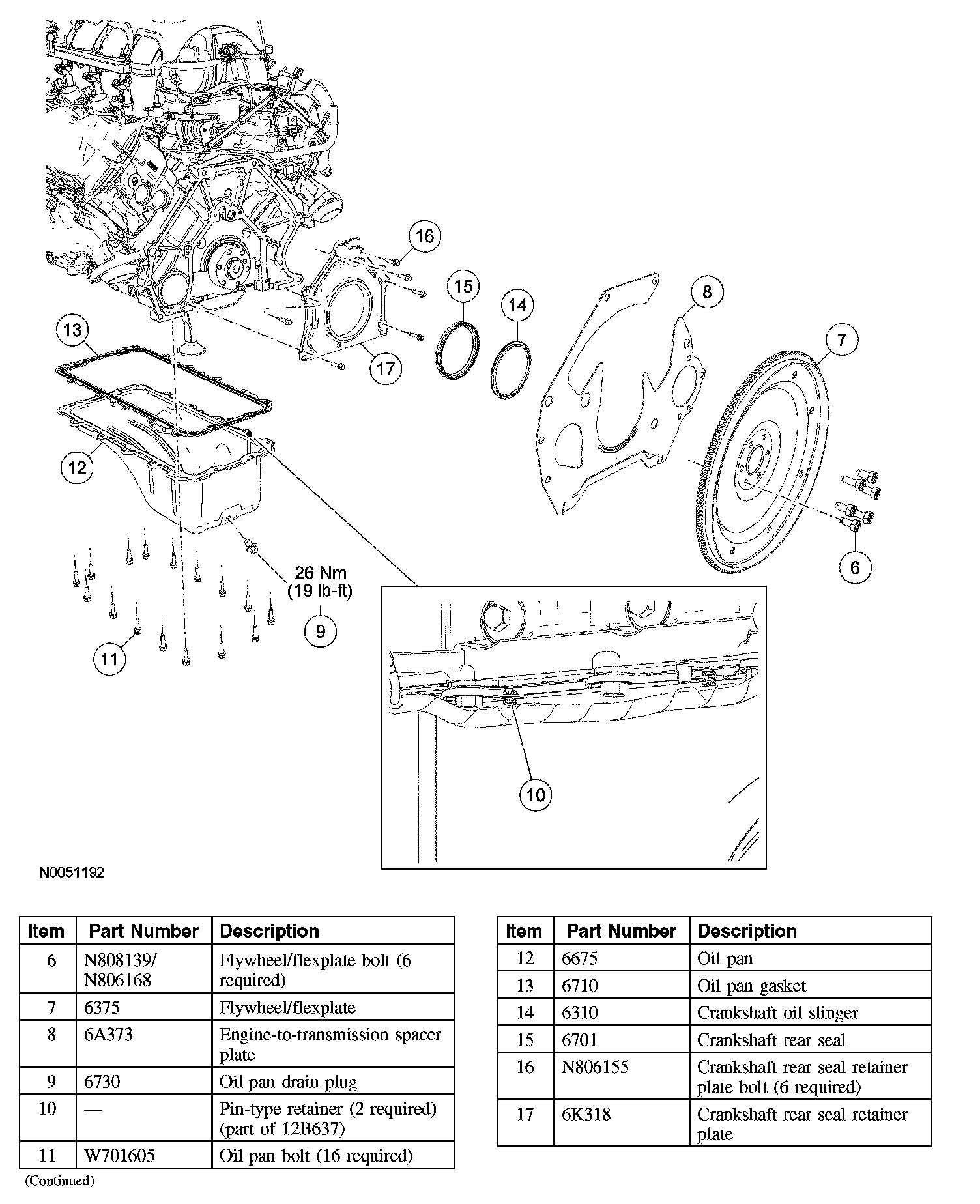

Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal:



Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal:
