Disc Brake System
>>
Front
Front

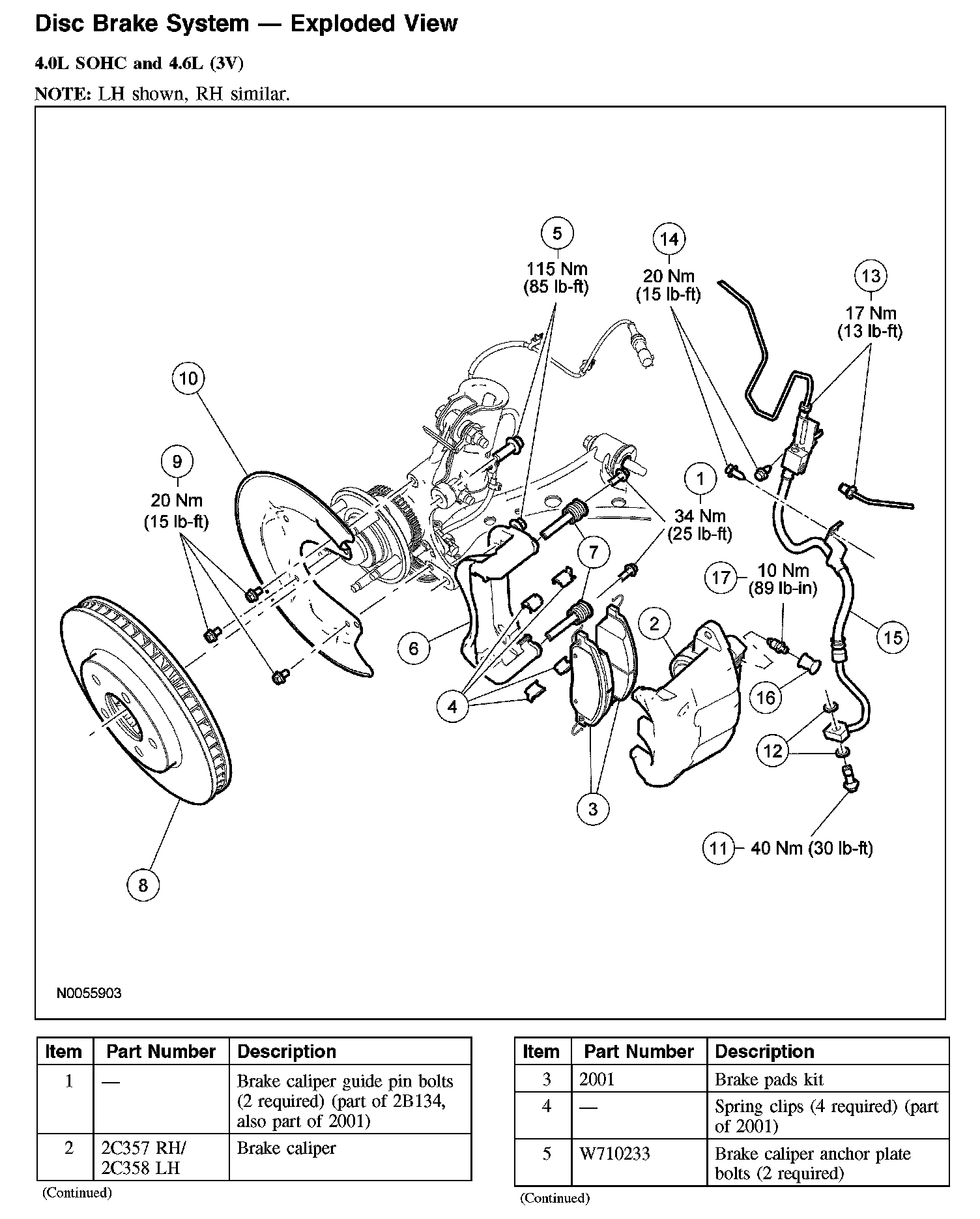

Disc Brake System - Exploded View:
Disc Brake System - Exploded View:
