Home >> Ford >> 2007 >> Mustang V8-4.6L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

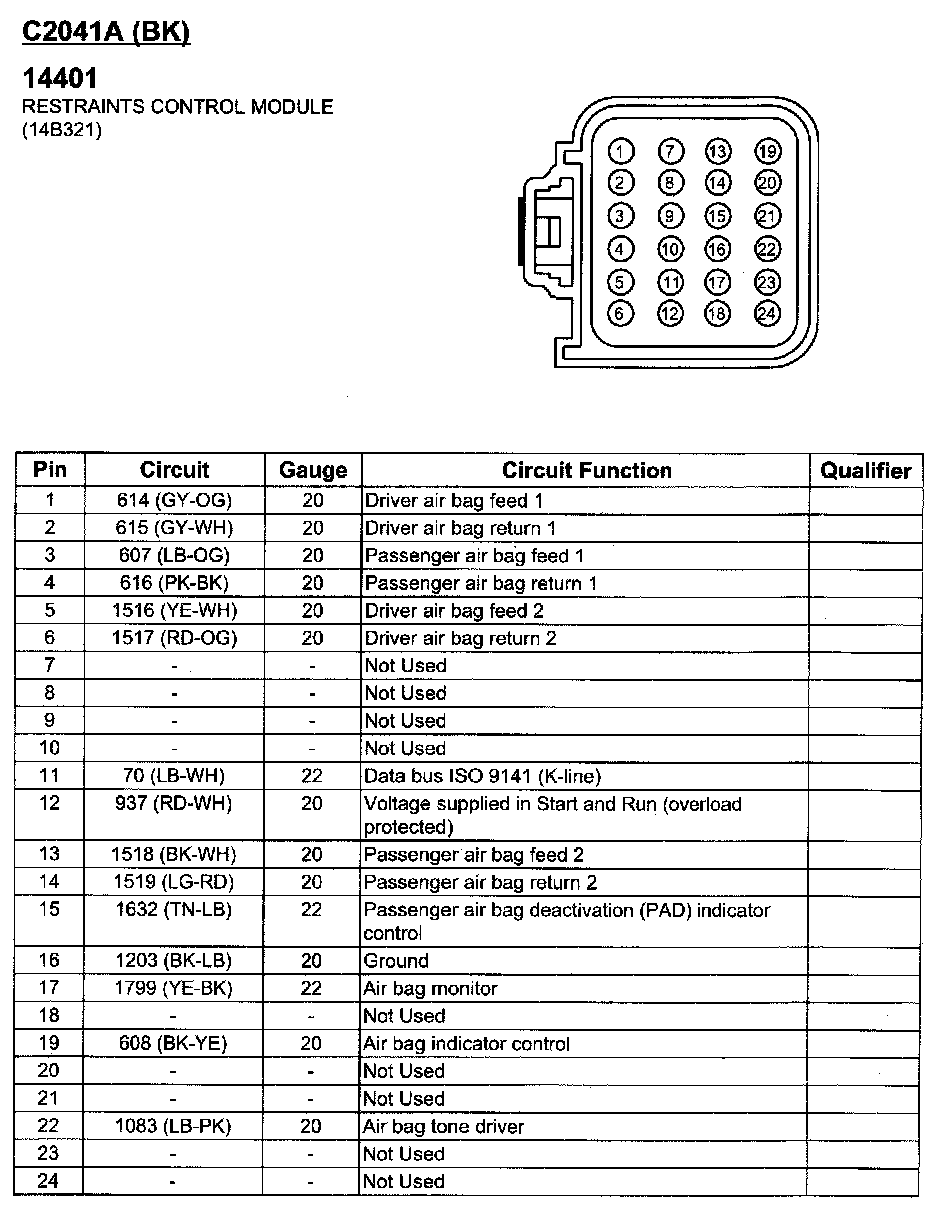

C2041A:

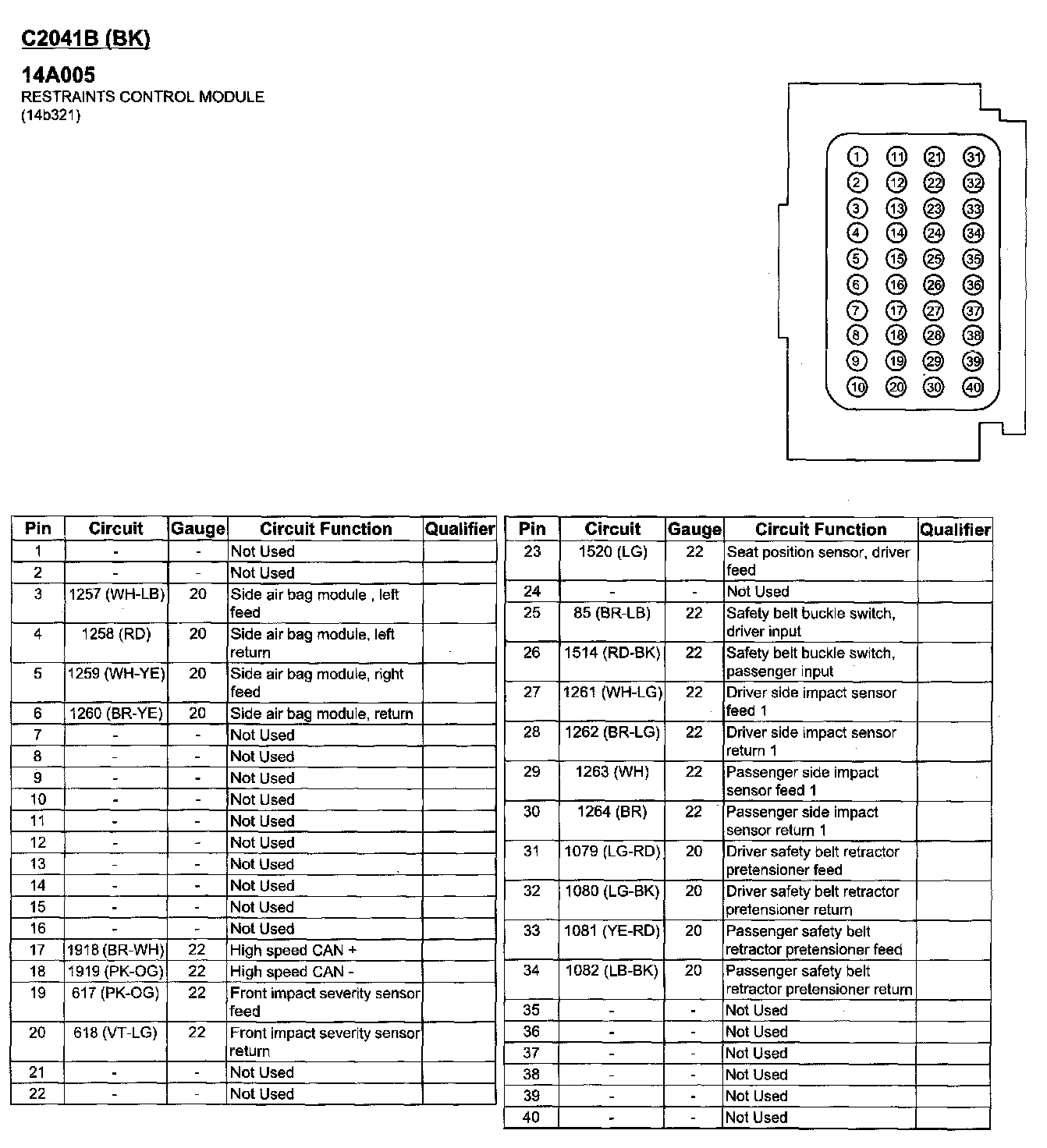

C2041B:
