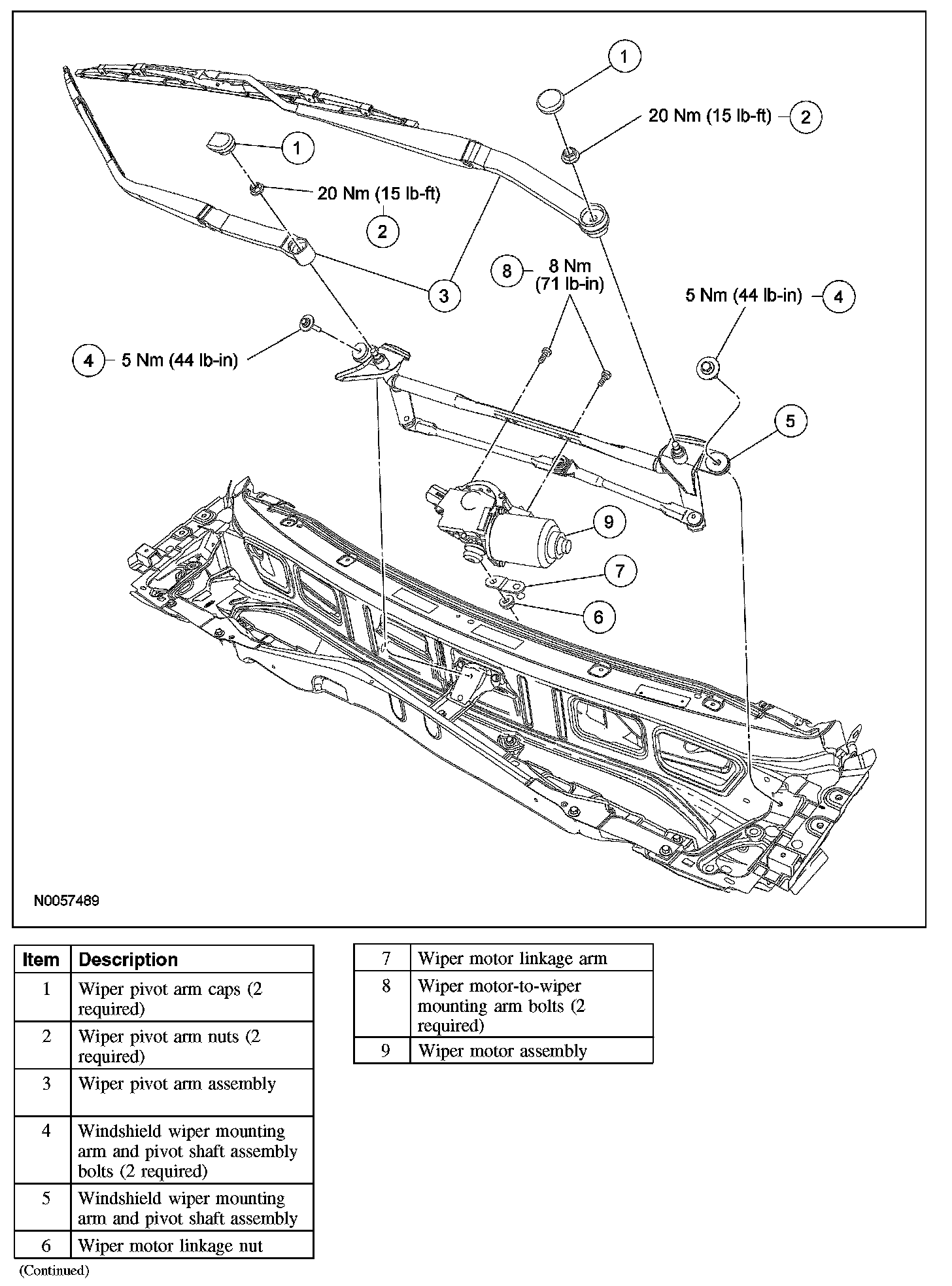

WIPER AND WASHER SYSTEM - EXPLODED VIEW
Removal and Installation
1.
For additional information, refer to the procedures.
