Antenna - Keyless Entry: Service and Repair

ANTENNA - REMOTE KEYLESS ENTRY (RKE)

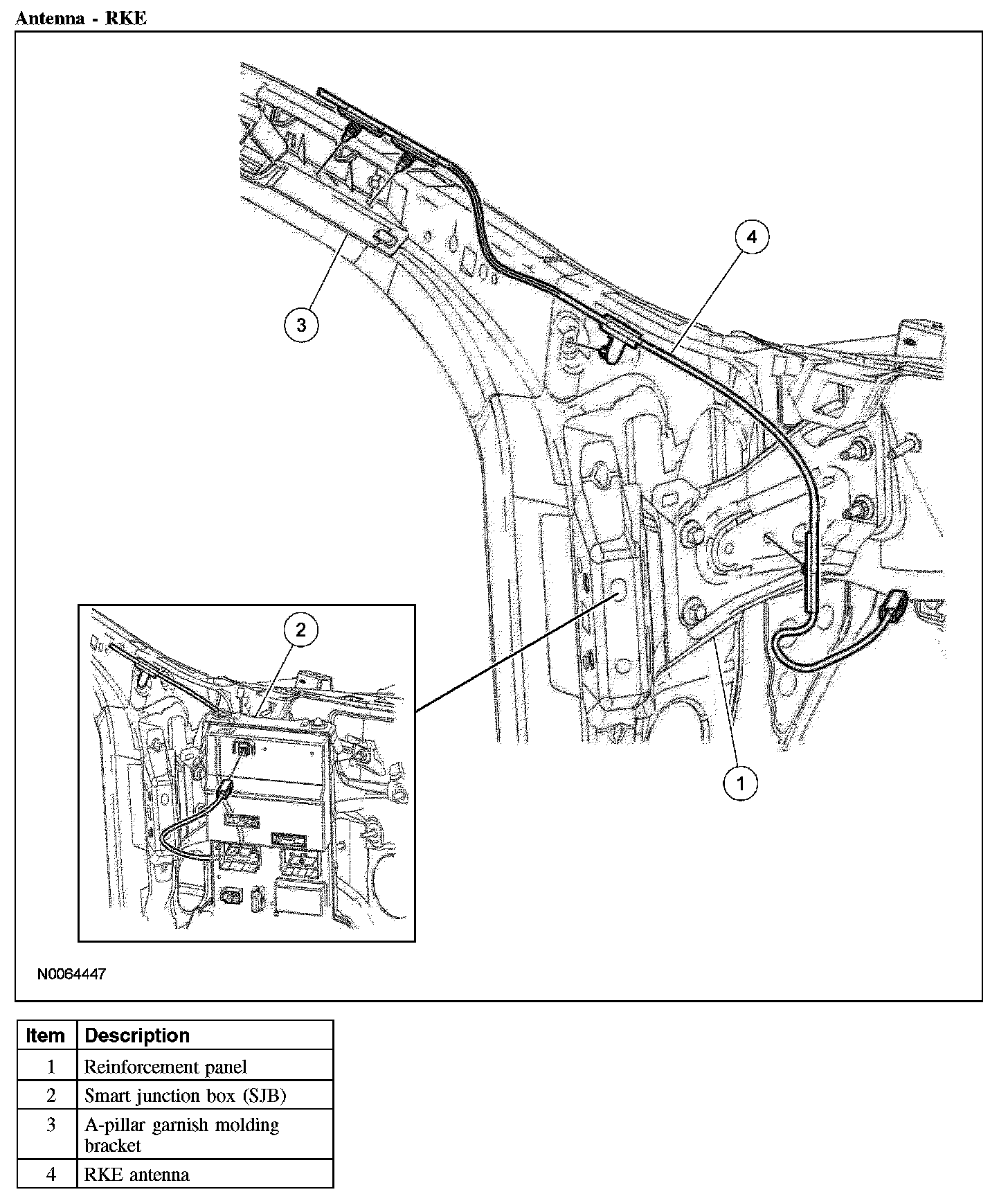

Antenna - RKE:

Removal and Installation
1. Remove the smart junction box (SJB).
2. Remove the LH A-pillar trim panel.
3. Remove the RKE antenna.
- Disconnect the antenna retaining clips.
- Remove the RKE antenna.

4. To install, reverse the removal procedure.
