Home >> Ford >> 2007 >> Freestyle AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

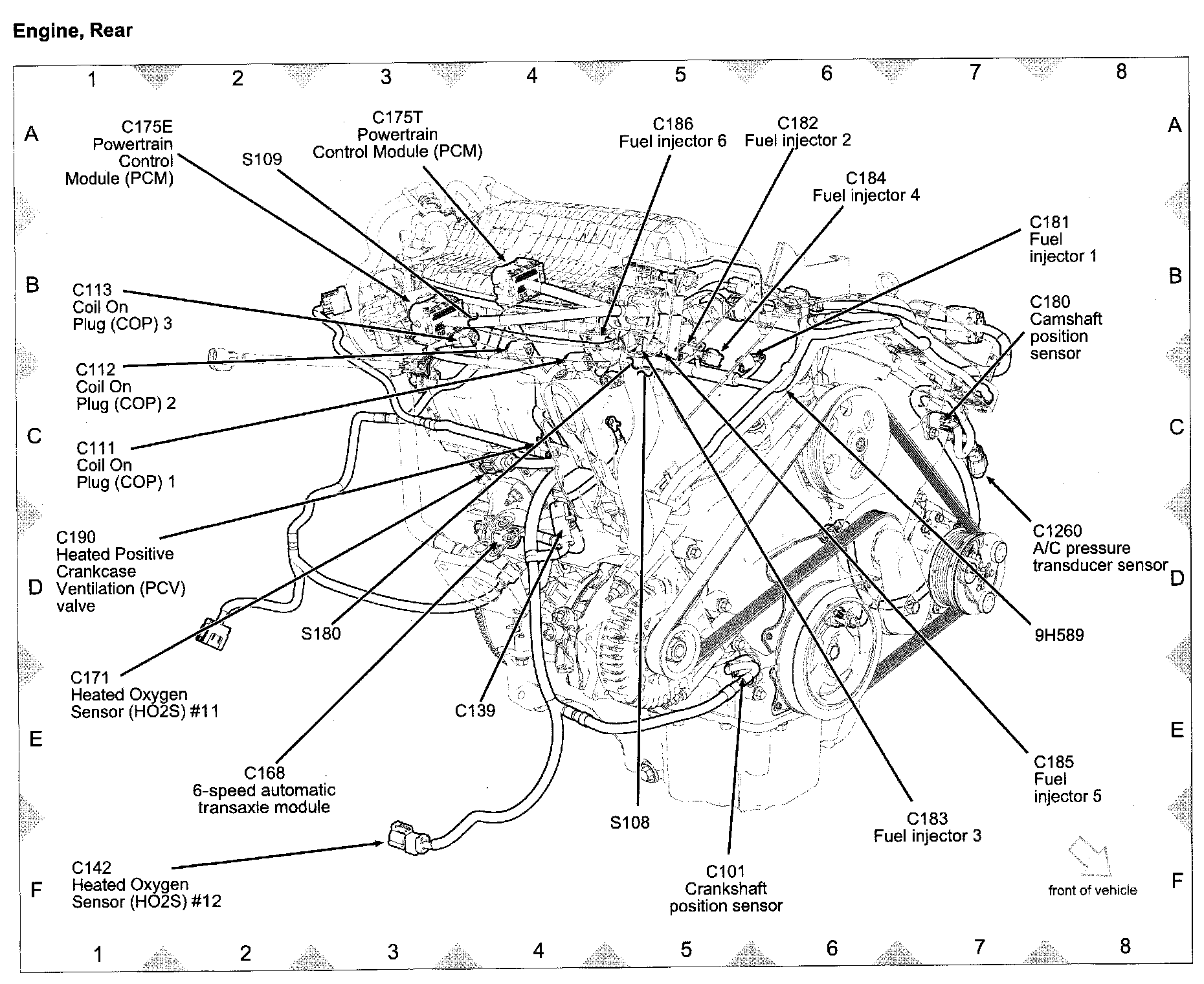

View 151-5 (Engine, Rear):
