Trunk / Liftgate
Trunk / Liftgate

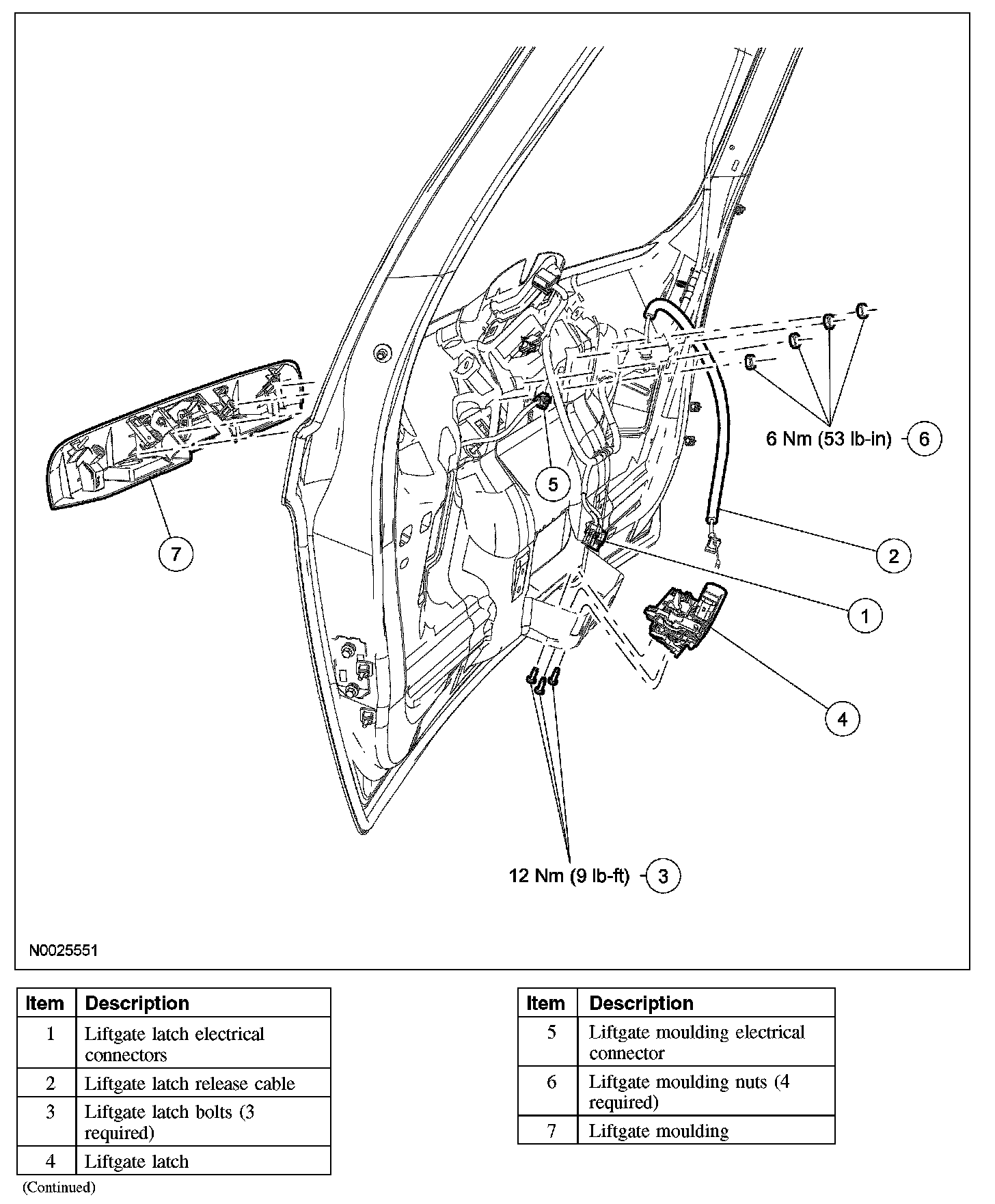

LIFTGATE HANDLE, LOCK AND LATCH - EXPLODED VIEW
Removal and Installation
1.
For additional information, refer to the procedures.
