Home >> Ford >> 2007 >> Freestyle AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Function Selector Switch Assembly

Function Selector Switch Assembly

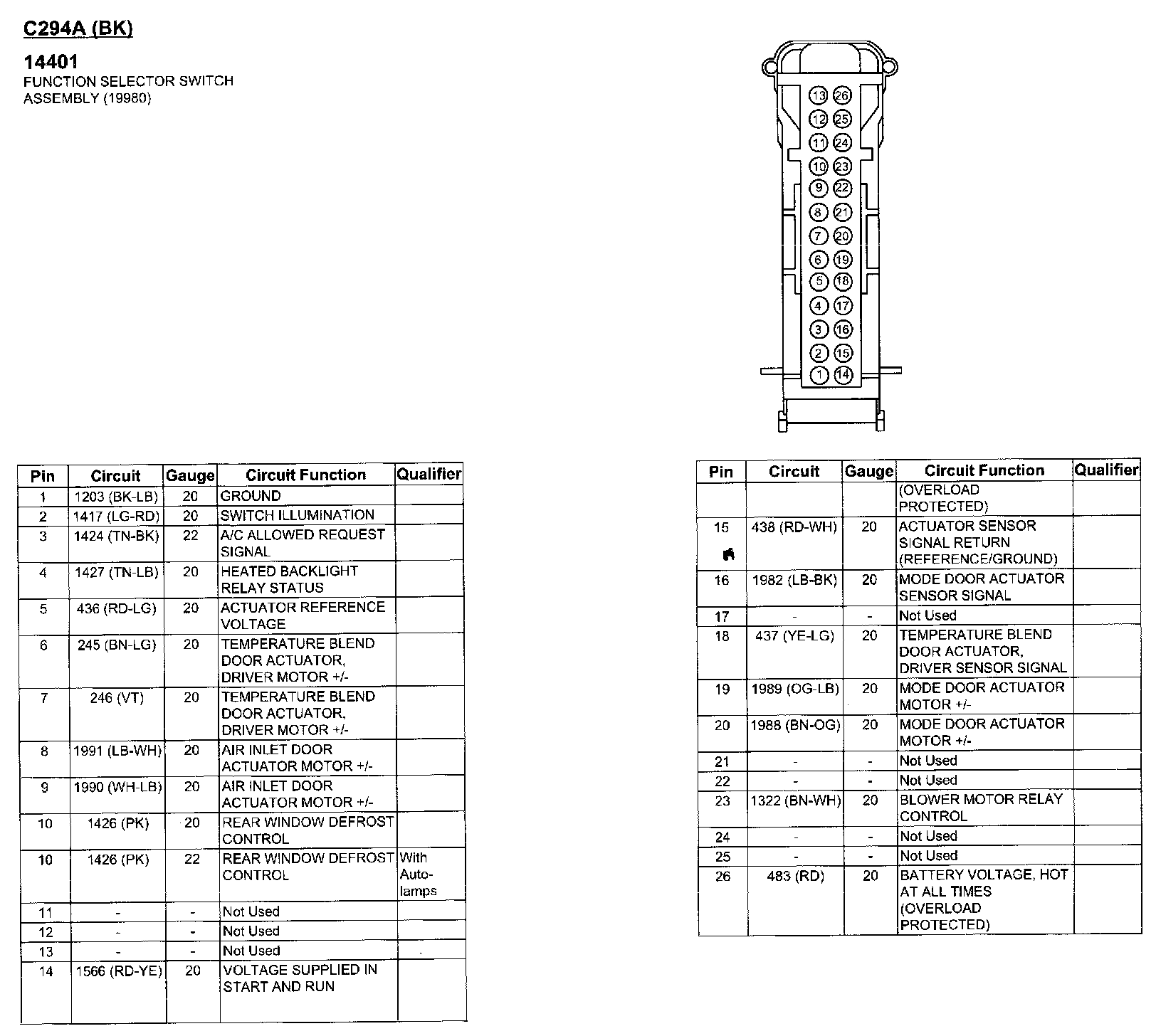

C294A:



C294B:
