Home >> Ford >> 2007 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Auxiliary Relay Box

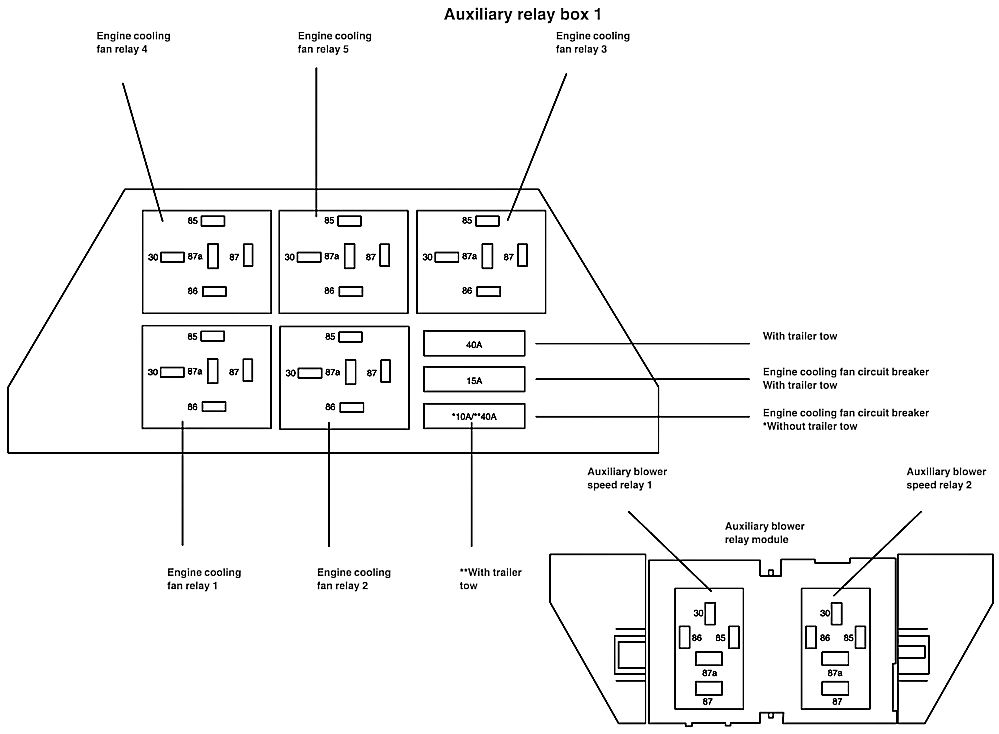

Auxiliary Relay Box
