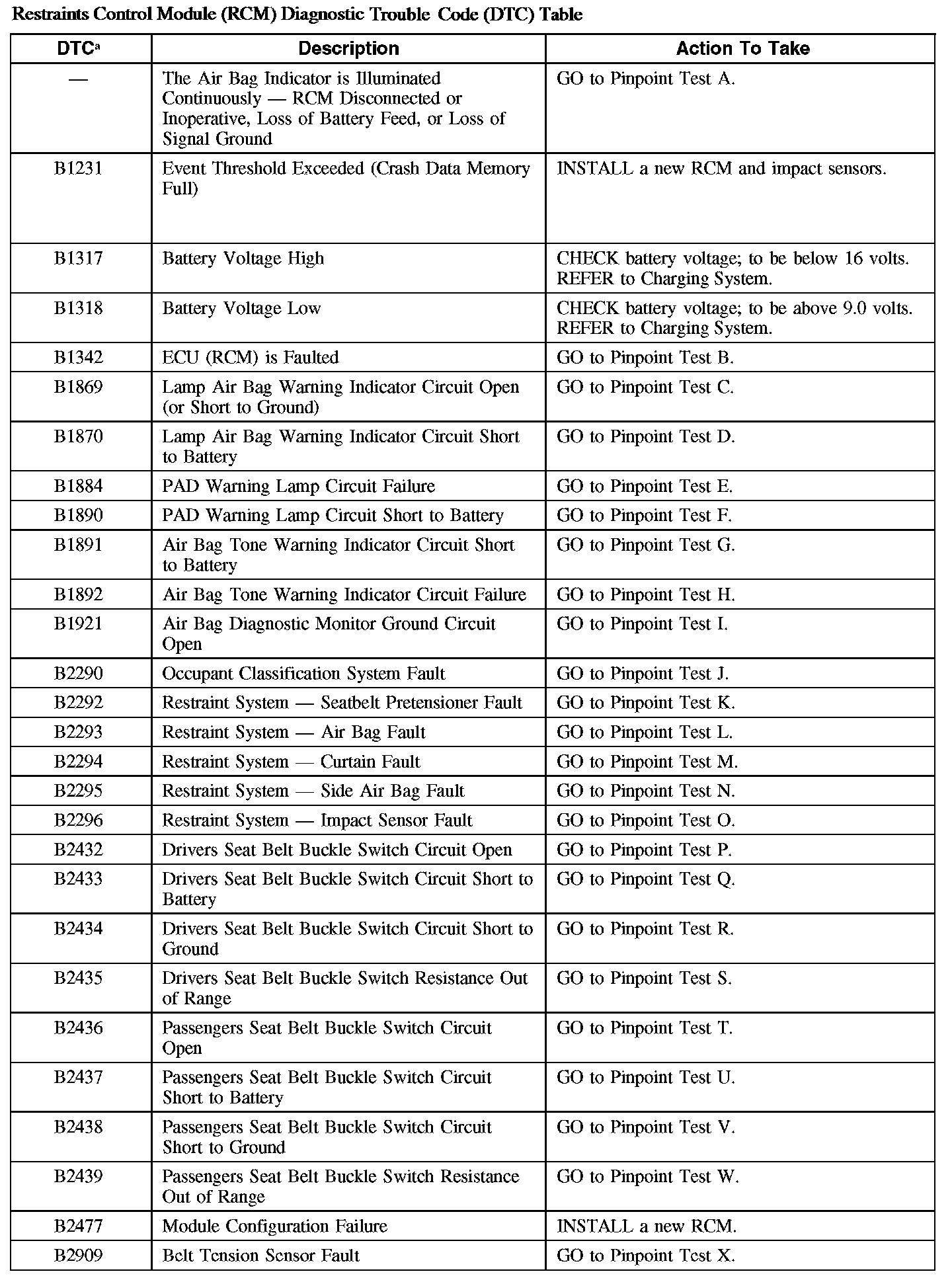

Restraints Control Module (RCM) Diagnostic Trouble Code (DTC) Table

RESTRAINTS CONTROL MODULE (RCM) DIAGNOSTIC TROUBLE CODE (DTC) TABLE


B1231-B2909:






C1414-C1982:






The DTCs can be retrieved from the RCM with a scan tool via the data link connector (DLC).
