Home >> Ford >> 2007 >> Freestar V6-3.9L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Switch

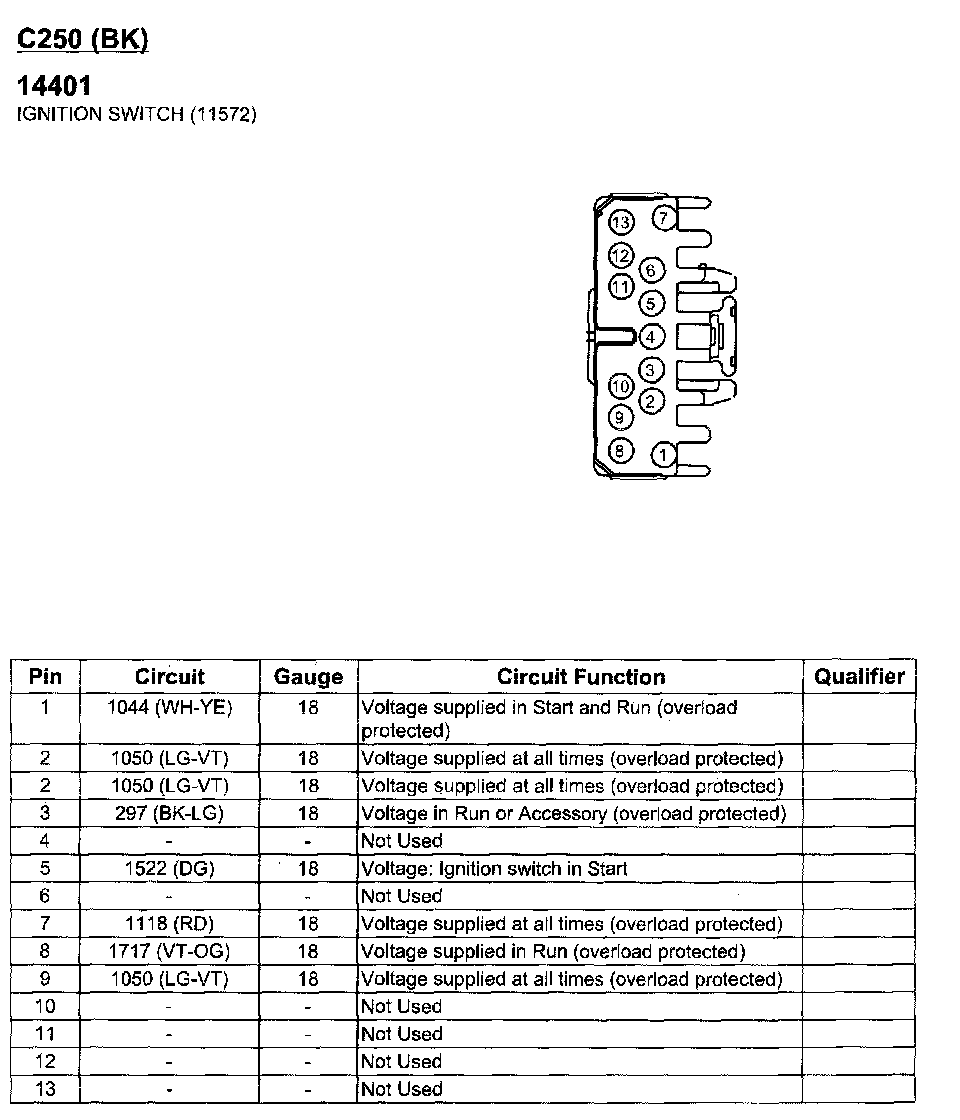

Ignition Switch

C250:
