Fog Lamp, Right Front Connector
Fog Lamp, Right Front Connector

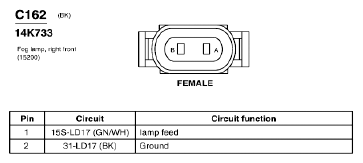

Fig 1: Fog Lamp, Right Front Connector End View (C162)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
