Home >> Ford >> 2007 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> General Specifications

General Specifications

General Specifications

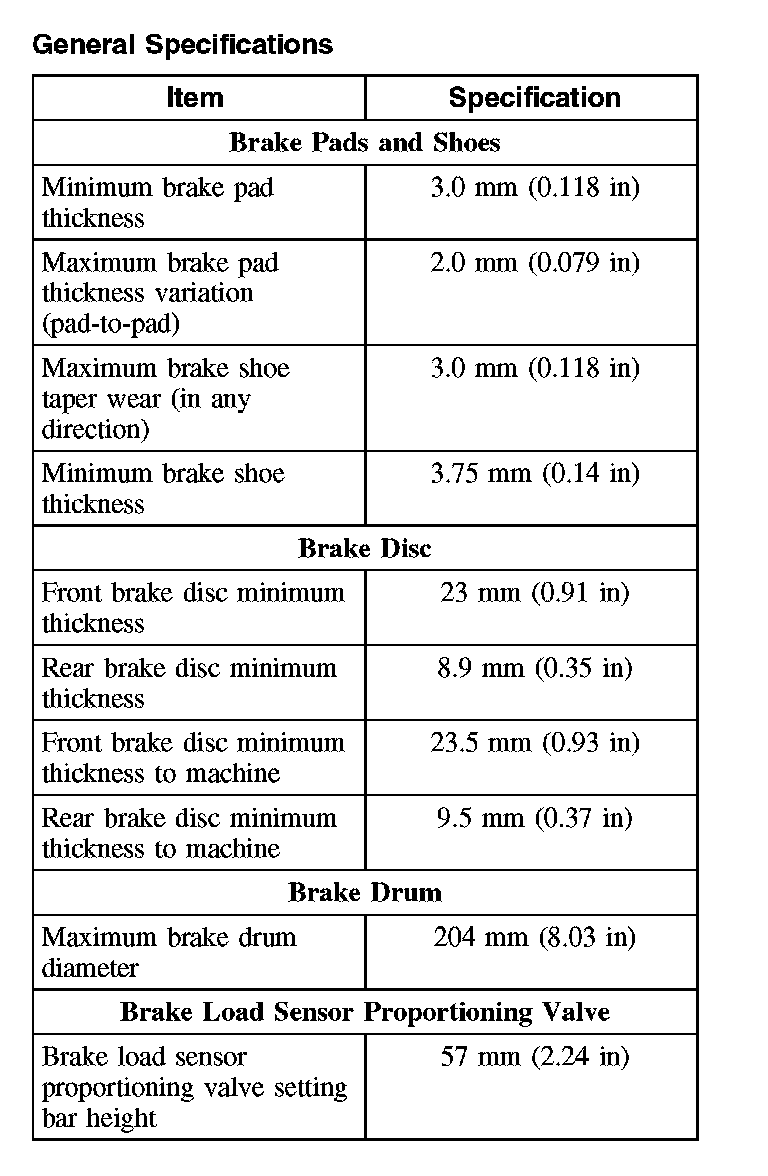

General Specifications:

General Specifications (Continued):

Front Disc Brake Specifications:

Rear Disc Brake Specifications:
