Air Injection Control Valve: Service and Repair

SECONDARY AIR INJECTION (AIR) VALVE - 2.0L

Part 1:

Part 2:

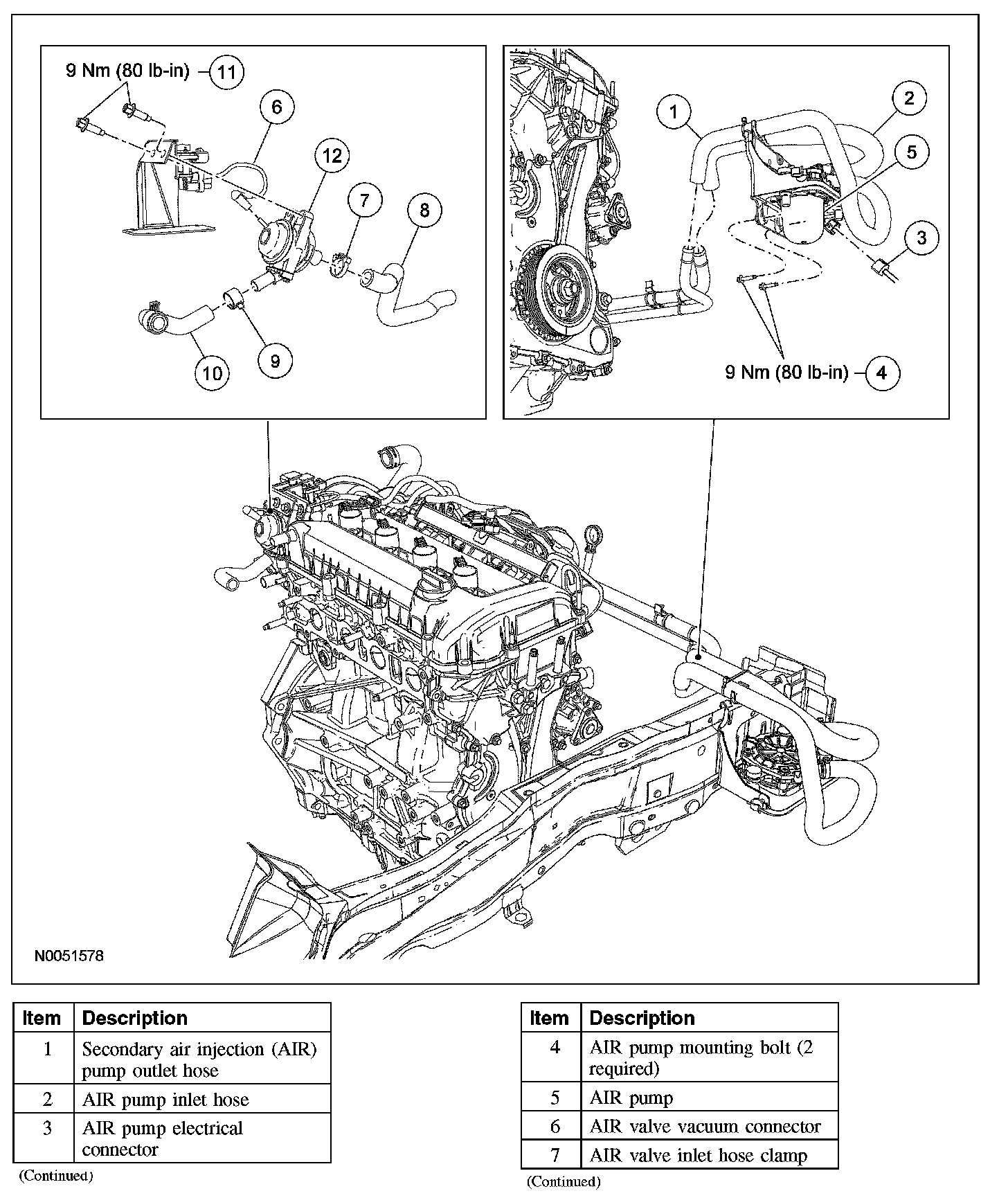

Exploded View

Removal and Installation
1. Disconnect the secondary air injection (AIR) inlet, outlet and vacuum control hoses from the AIR valve.
2. Remove the 2 bolts and the AIR valve.
- To install, tighten to 9 Nm (80 lb-in).

3. To install, reverse the removal procedure
