Home >> Ford >> 2007 >> F 150 2WD V6-4.2L VIN 2 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Trailer Brake Control Module >> Locations

Trailer Brake Control Module: Locations

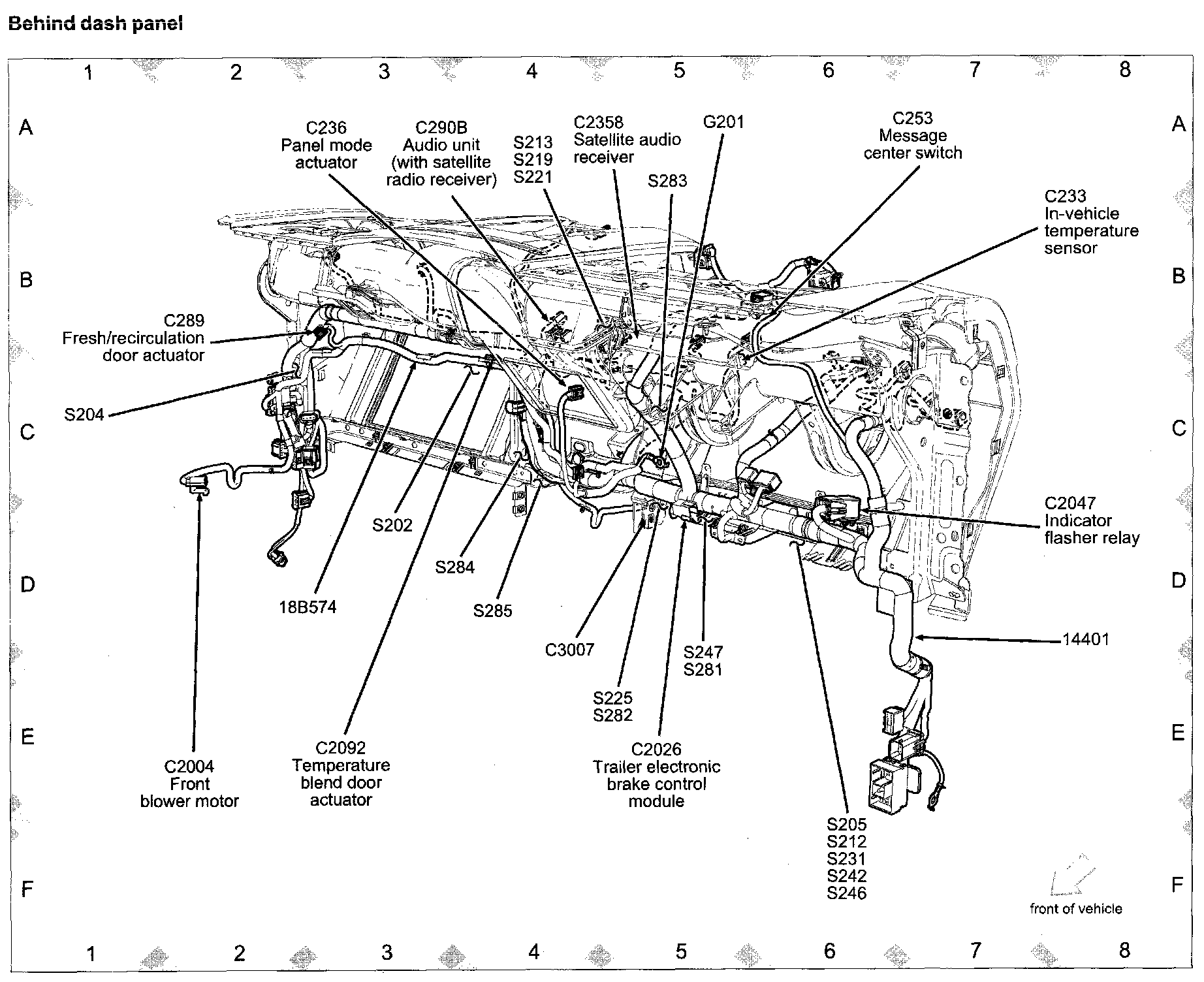

View 151-14 (behind Dash Panel):
