Home >> Ford >> 2007 >> F 150 2WD V6-4.2L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Knock Sensor >> Locations

Knock Sensor: Locations

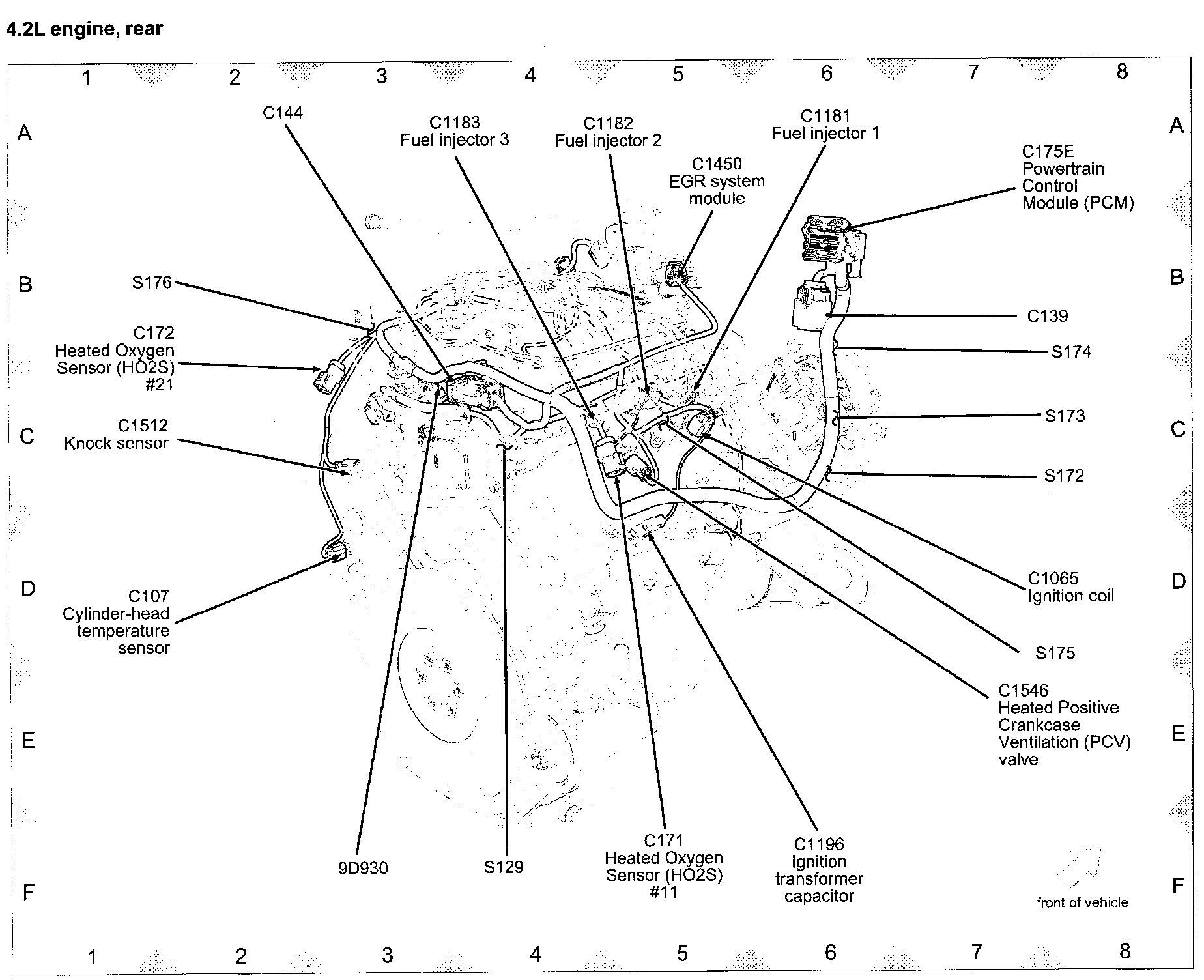

View 151-5 (4.2L Engine, Rear):
