Body Control Module: Locations

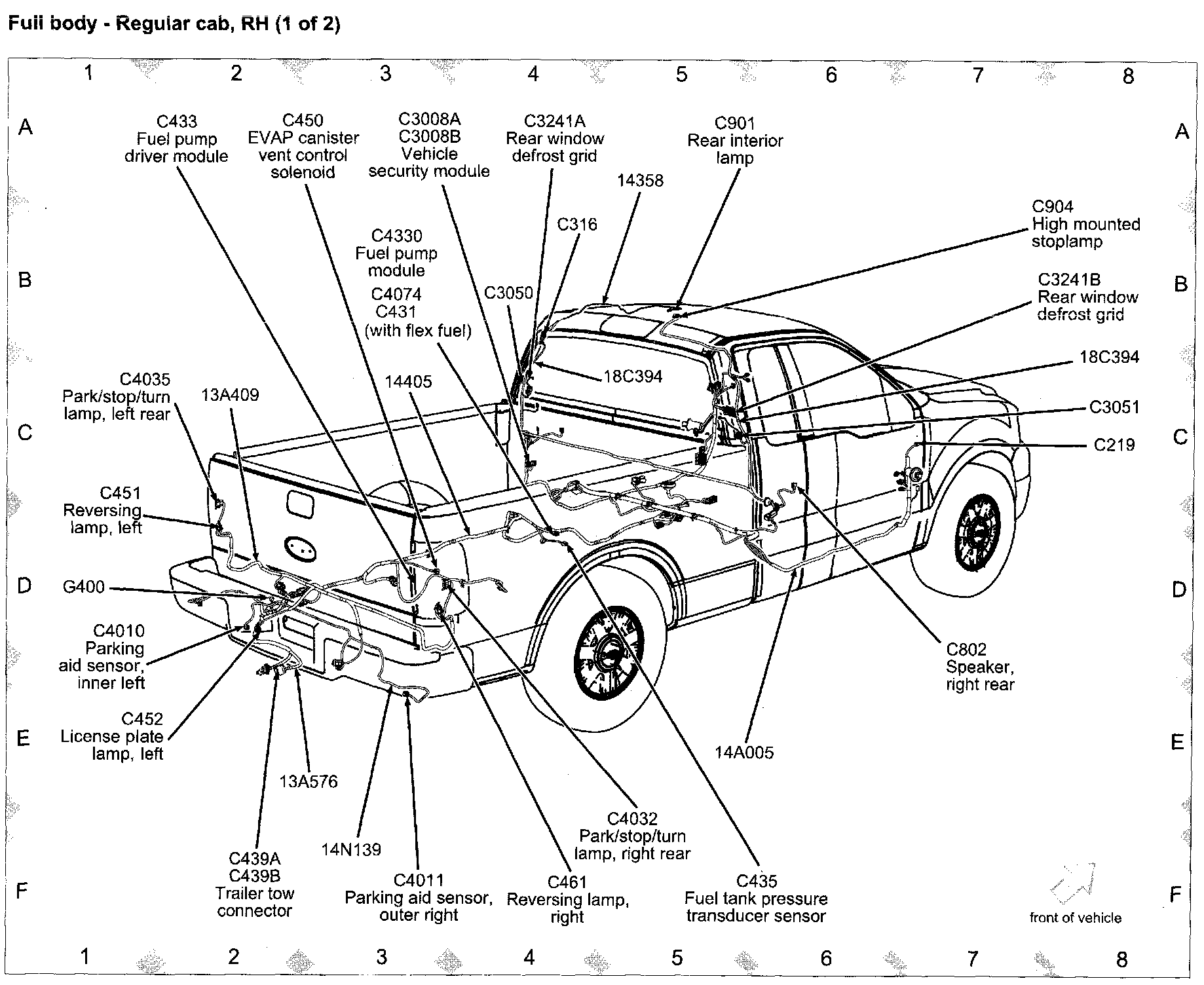

View 151-20 (Full Body - Regular Cab, RH (1 Of 2)):

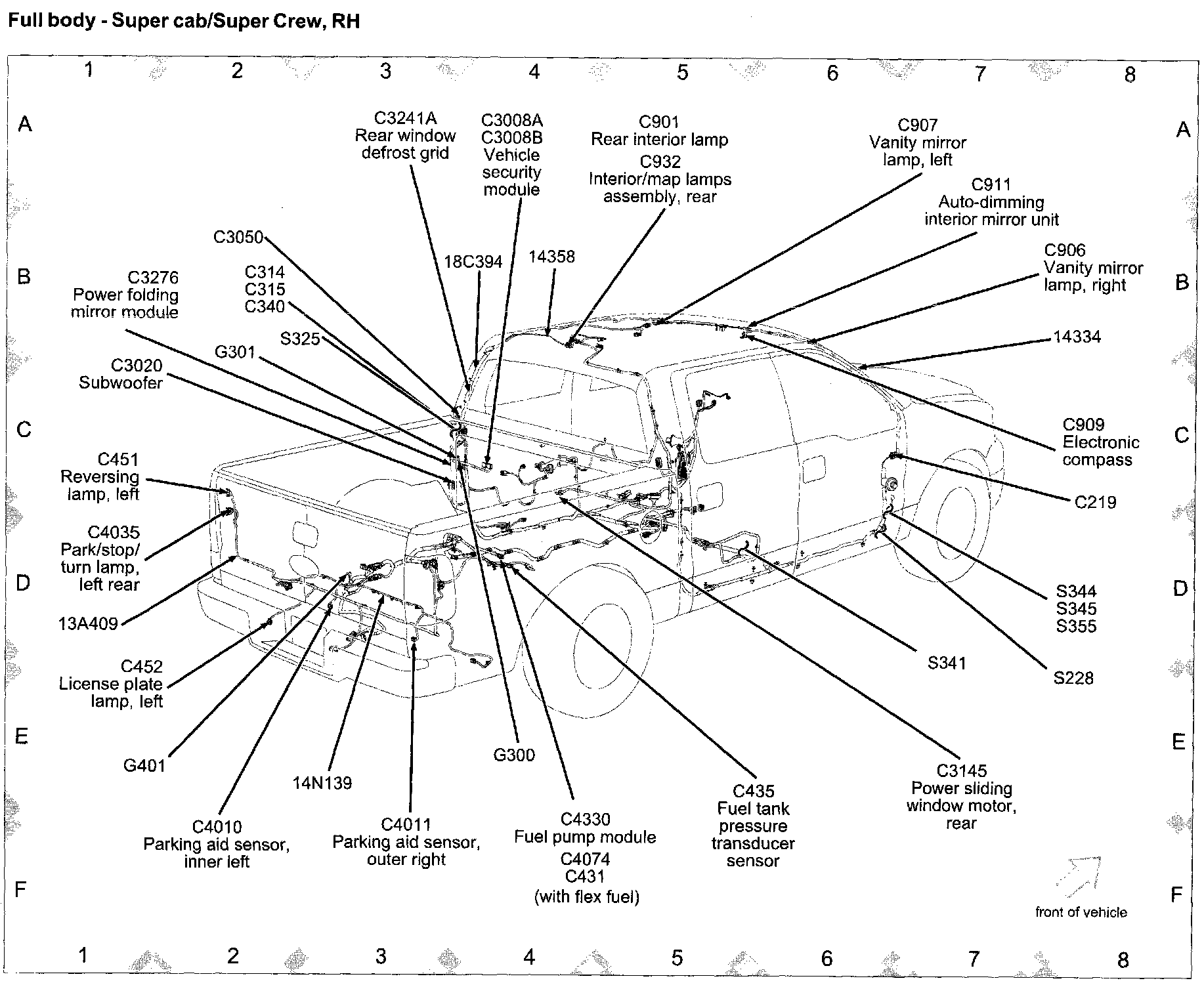

View 151-24 (Full Body - Super Cab/Super Crew, RH):
