Engine Lubrication

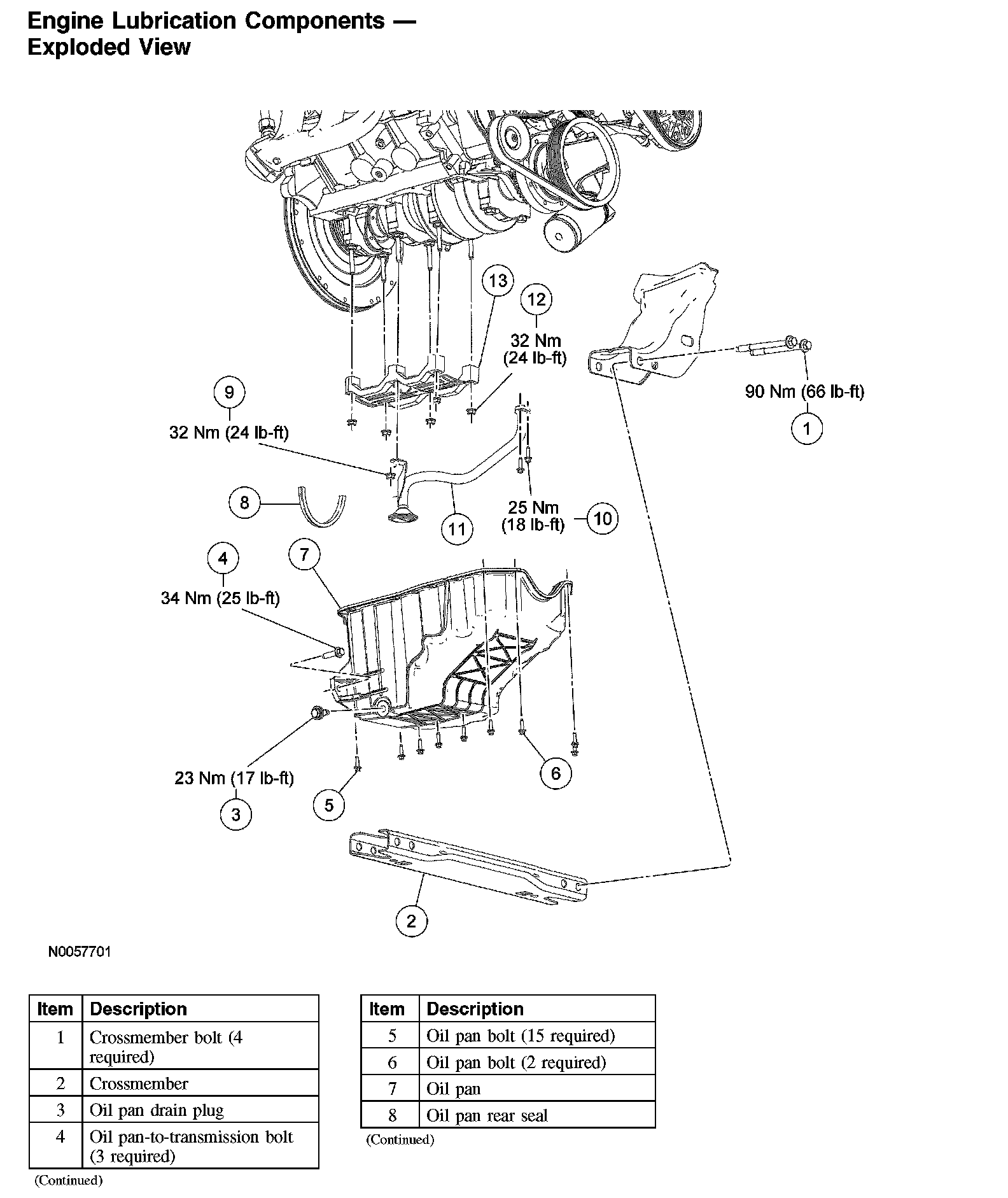

Engine Lubrication Components - Exploded View:

Engine Lubrication Components - Exploded View:
