Ford
>>
2007
>>
F 150 2WD V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Flow Meter/Sensor
Air Flow Meter/Sensor

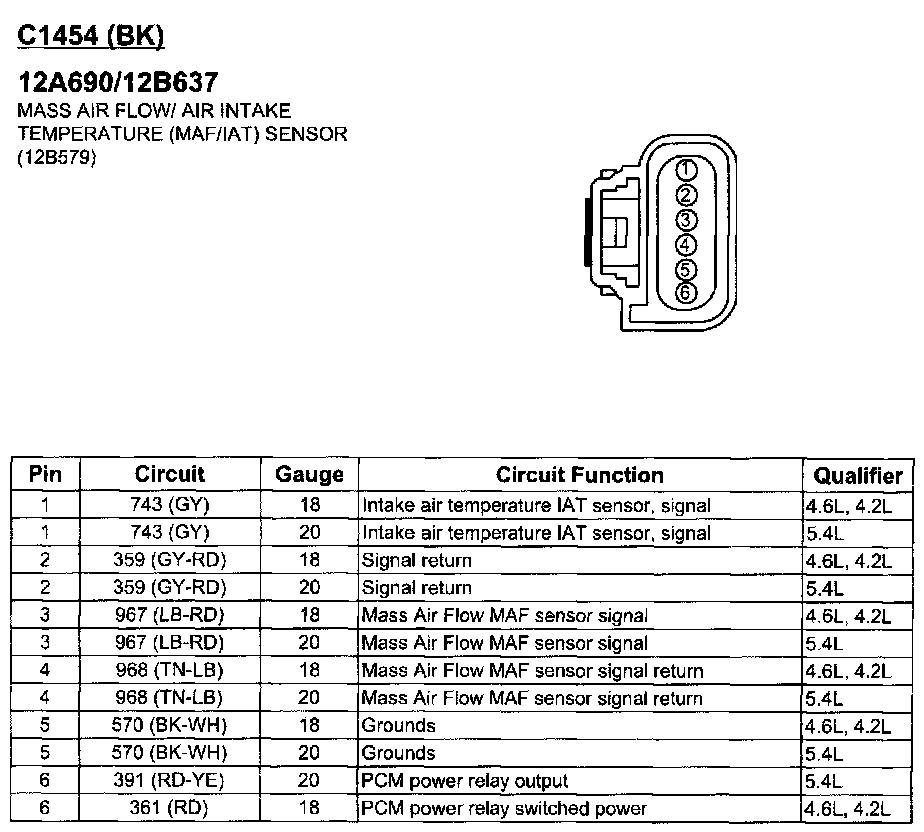

C1454:
