Home >> Ford >> 2007 >> F 150 2WD V6-4.2L VIN 2 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated Seat Module, Passenger Side Front

Heated Seat Module, Passenger Side Front

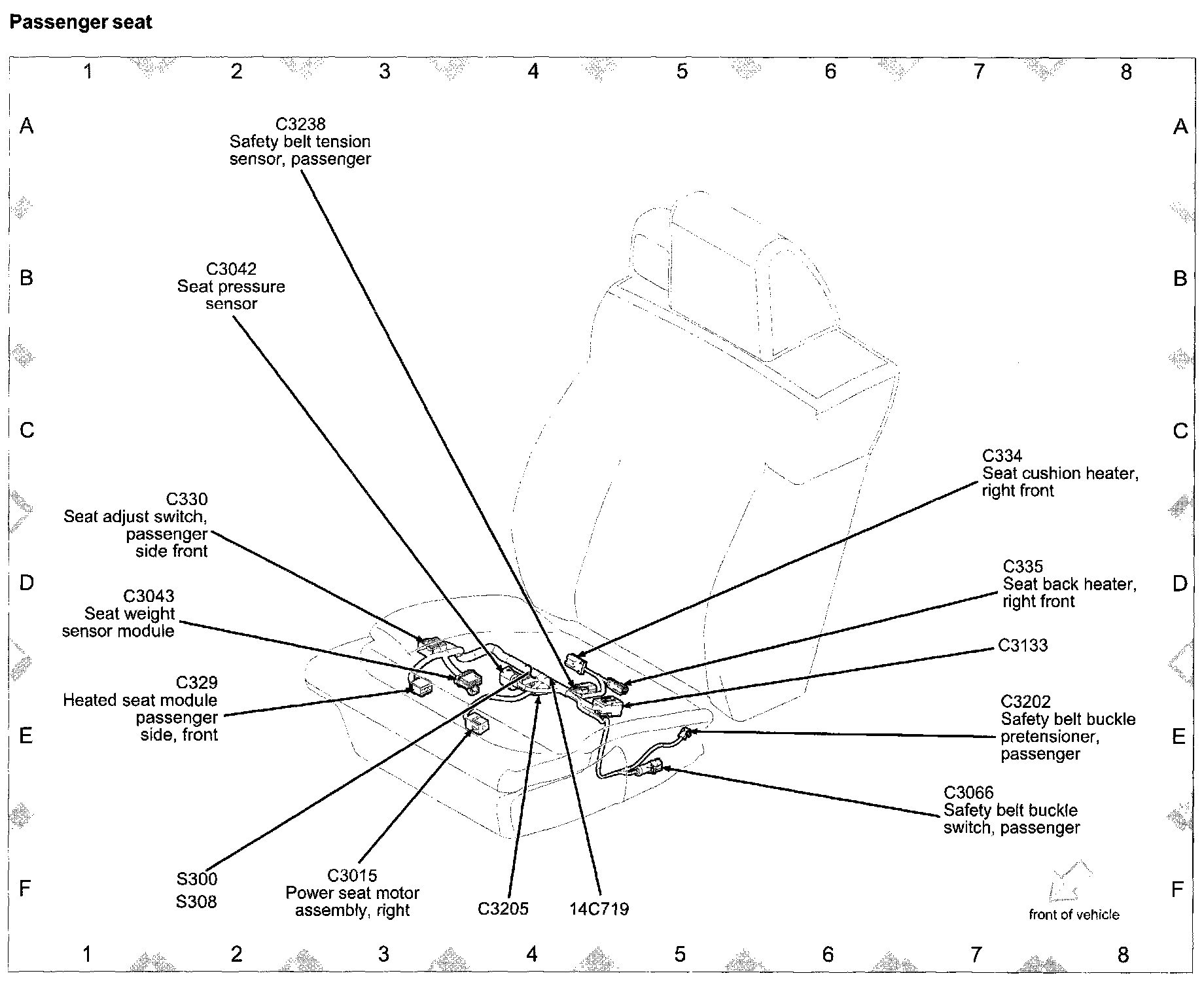

View 151-27 (Passenger Seat):
