Home >> Ford >> 2007 >> Explorer 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

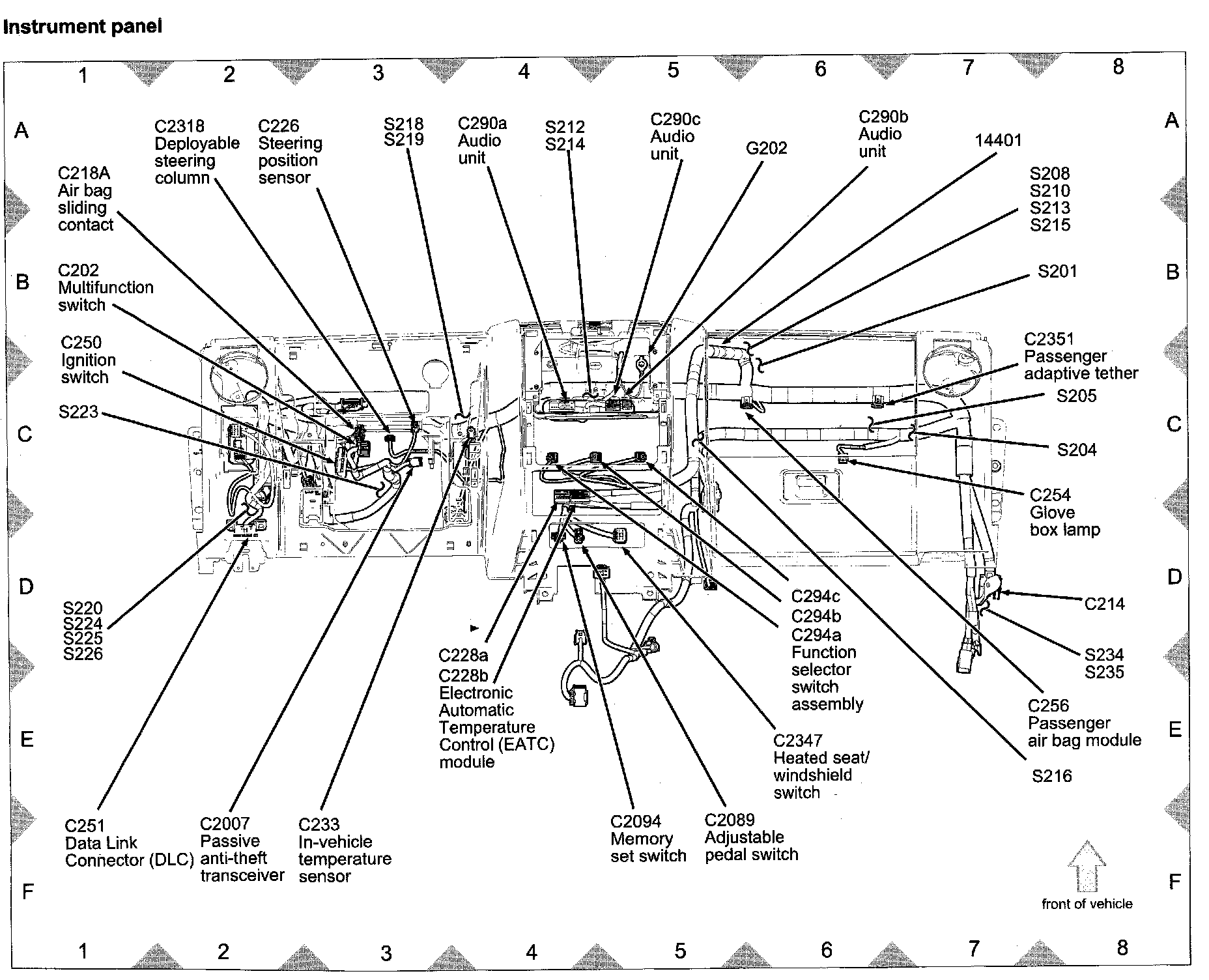

View 151-10 (Instrument Panel):
