Home >> Ford >> 2007 >> Explorer 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case

Transfer Case

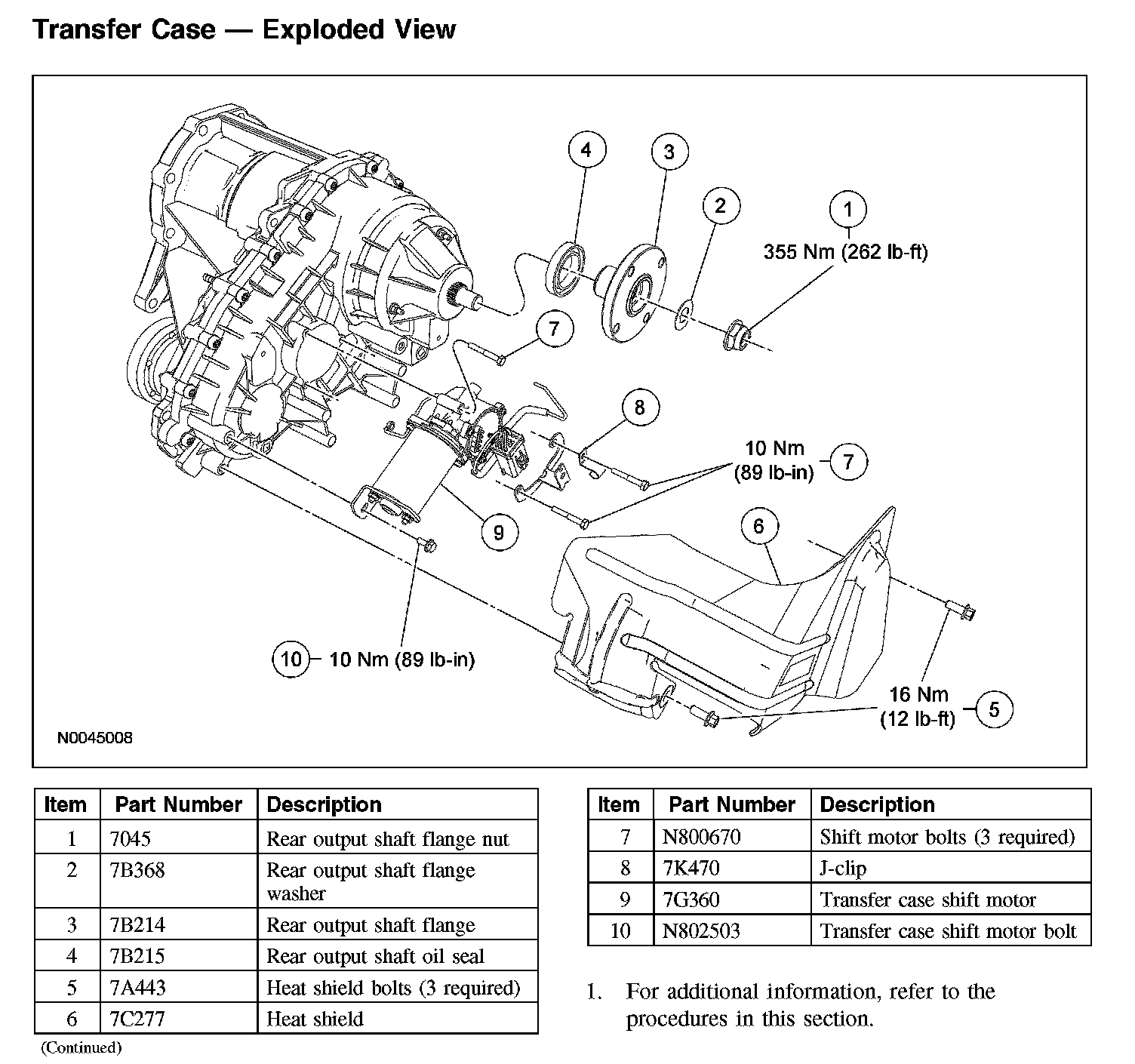

Transfer Case - Exploded View

Transfer Case - Exploded View:
