Home >> Ford >> 2007 >> Explorer 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case

Control Module, Transfer Case

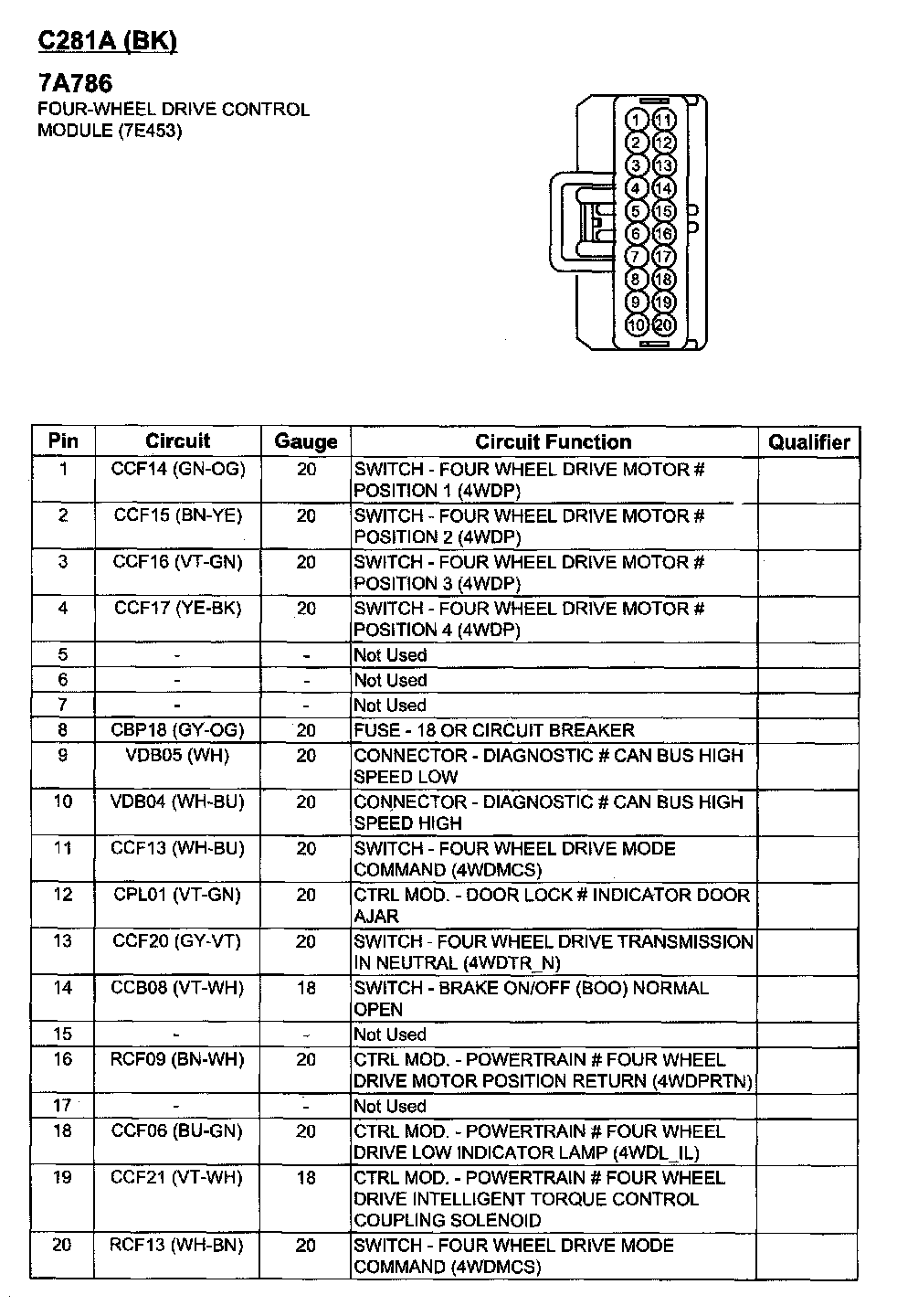

C281A:

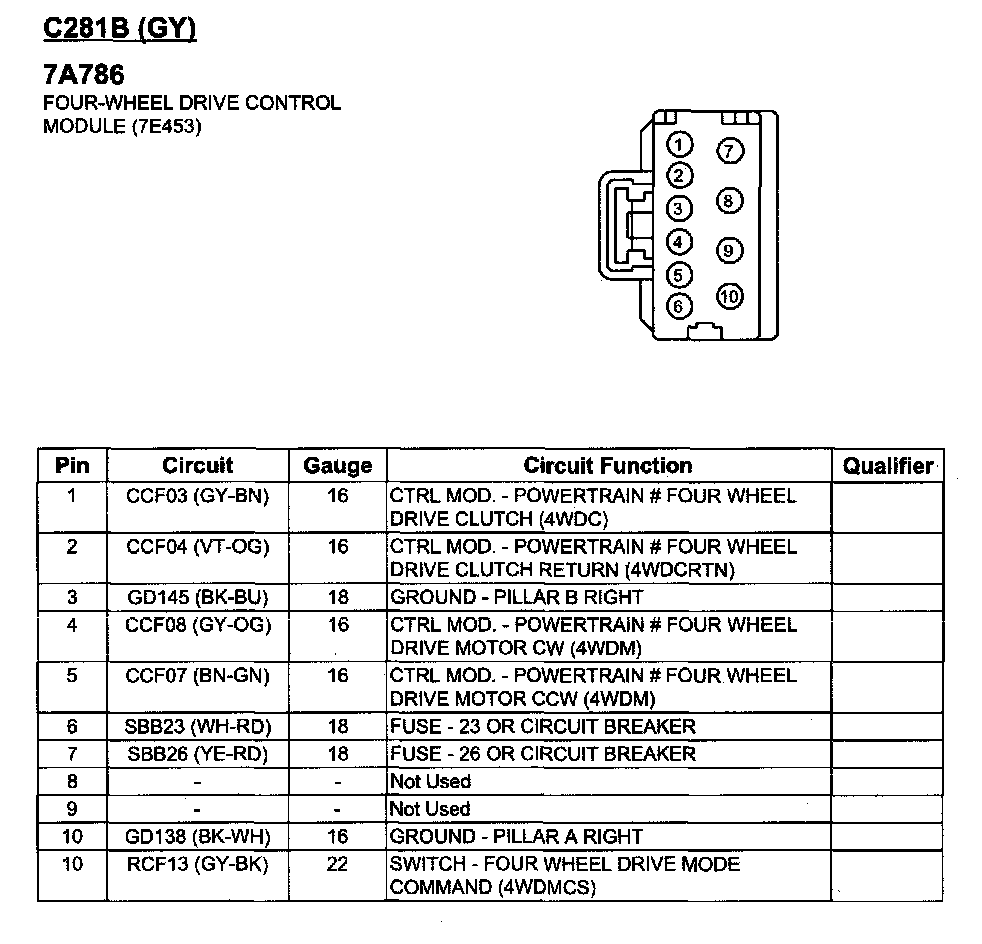

C281B:
