Home >> Ford >> 2007 >> Explorer 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Sensor >> Occupant Classification Sensor (OCS) Module

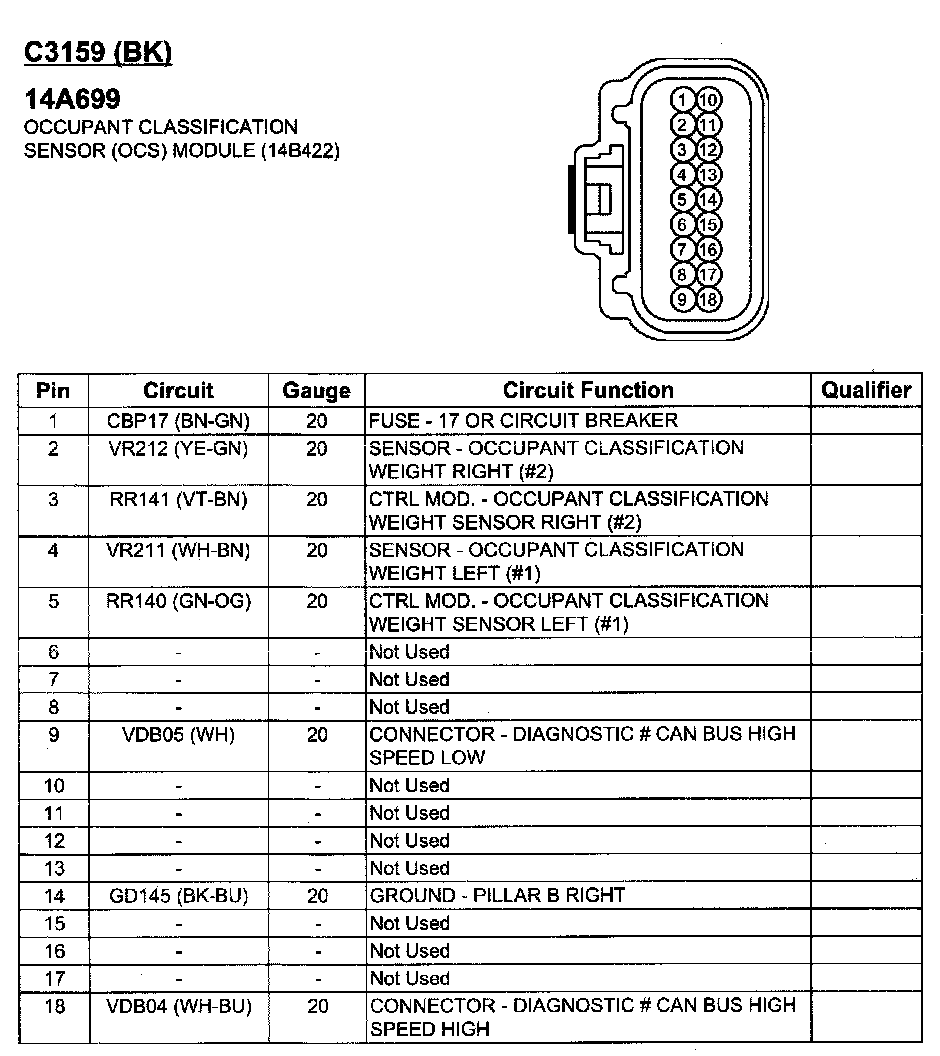

Occupant Classification Sensor (OCS) Module

C3159:
