Hood
Hood

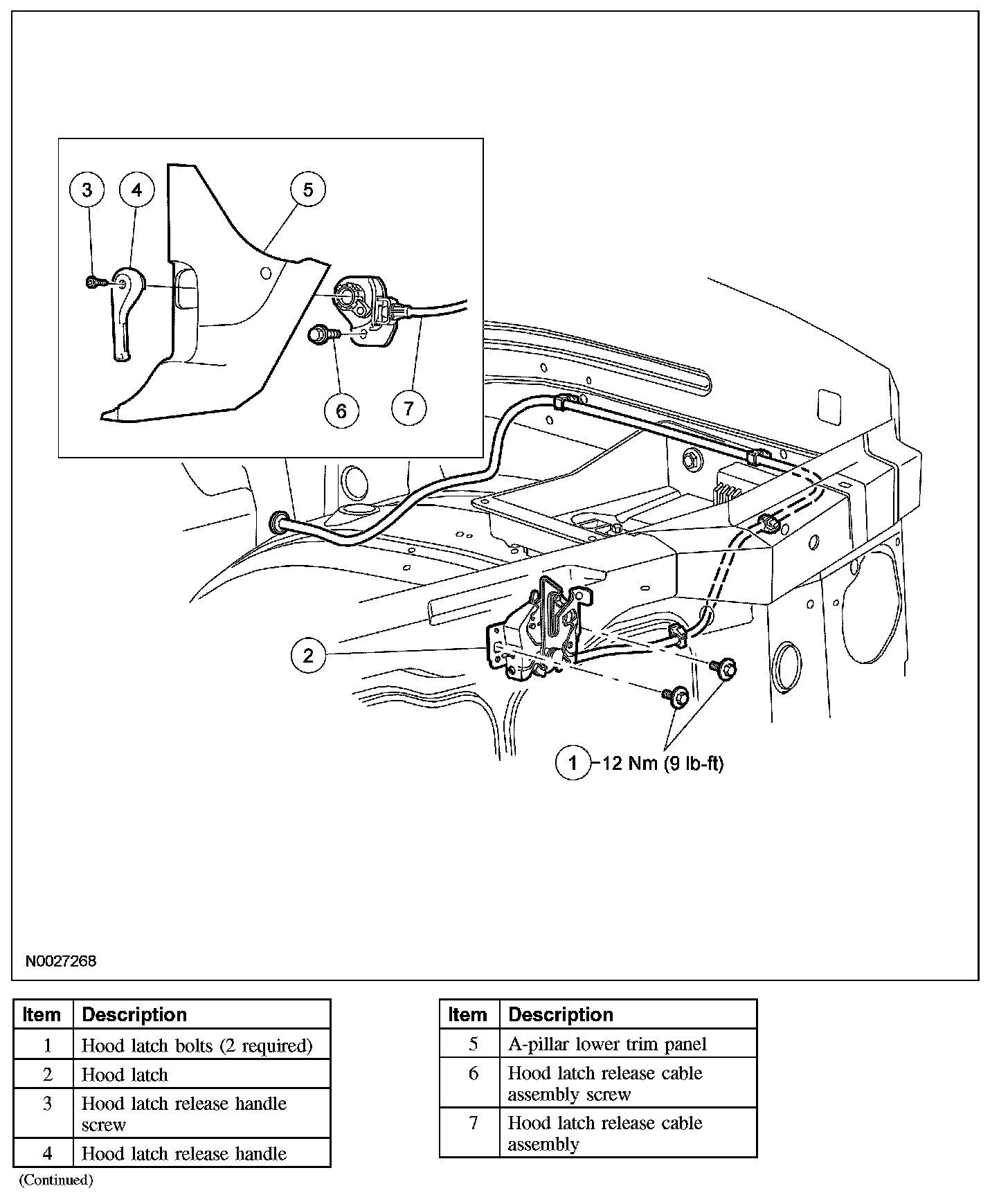

HOOD LATCH
AND COMPONENTS - EXPLODED VIEW
Removal and Installation
1. For additional information, refer to the procedures.
