Drive Belt
Drive Belt

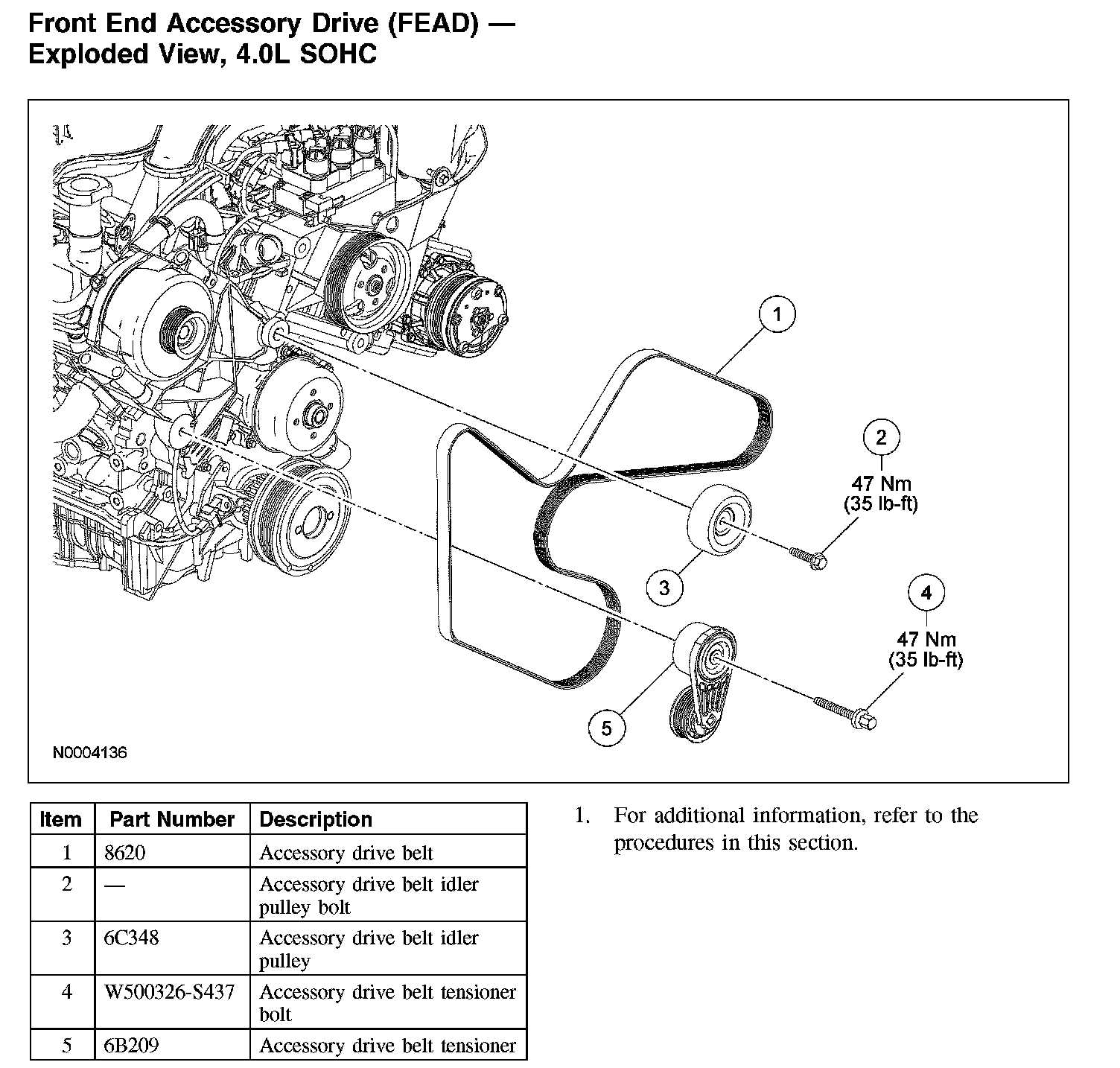

Front End Accessory Drive (FEAD) - Exploded View, 4.0L SOHC
Front End Accessory Drive (FEAD) - Exploded View, 4.0L SOHC:
