Antenna Control Module: Service and Repair

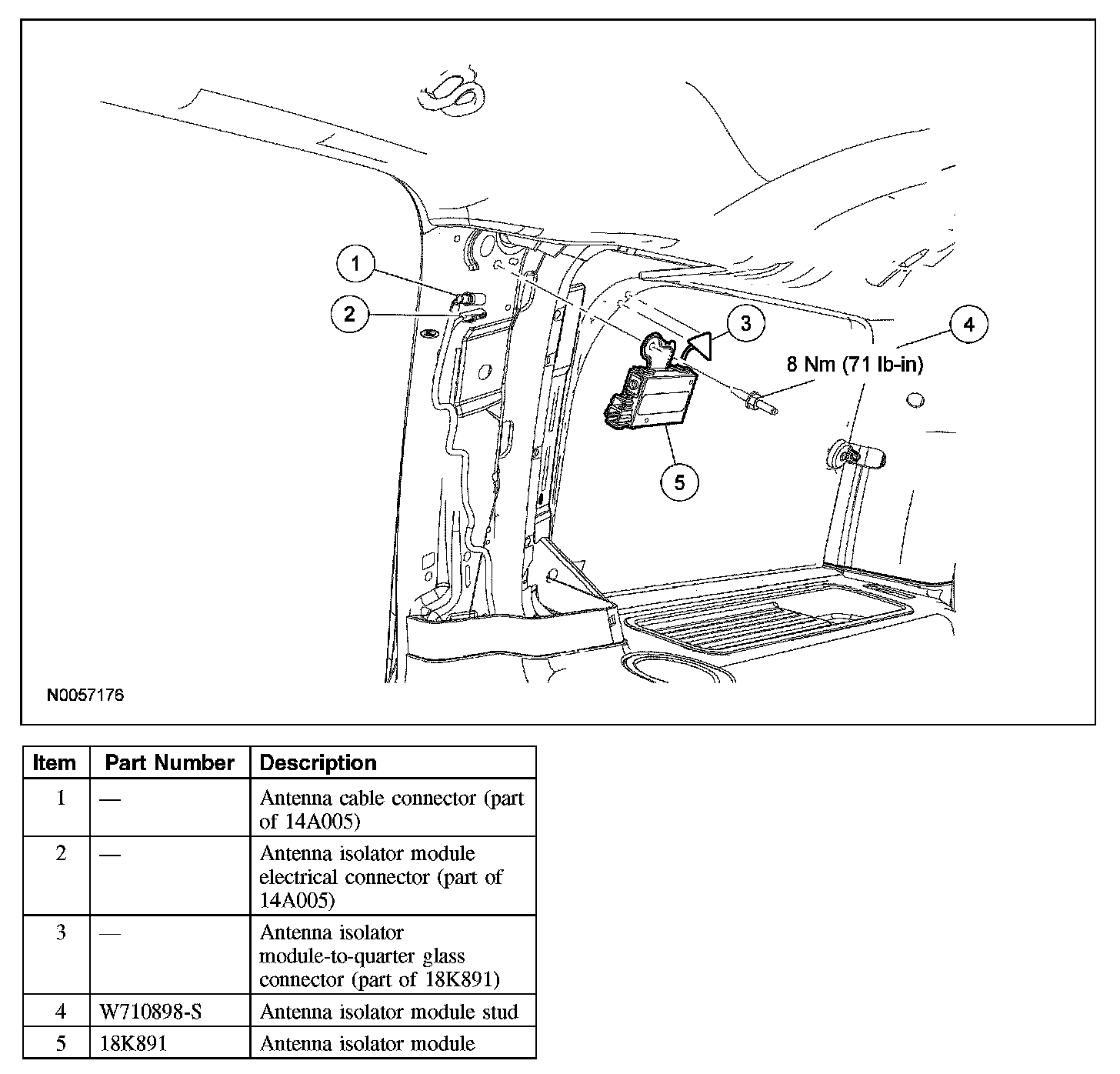

ANTENNA ISOLATOR MODULE







Removal and Installation
1. Remove the RH C-pillar trim panel.
2. Disconnect the antenna cable connector, the antenna isolator module electrical connector, and the antenna isolator module-to-quarter glass connector.
3. Remove the stud and the antenna isolator module.
- To install, tighten to 8 Nm (71 lb-in).

4. To install, reverse the removal procedure.
