Home >> Ford >> 2007 >> Expedition 4WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> System Diagram

System Diagram

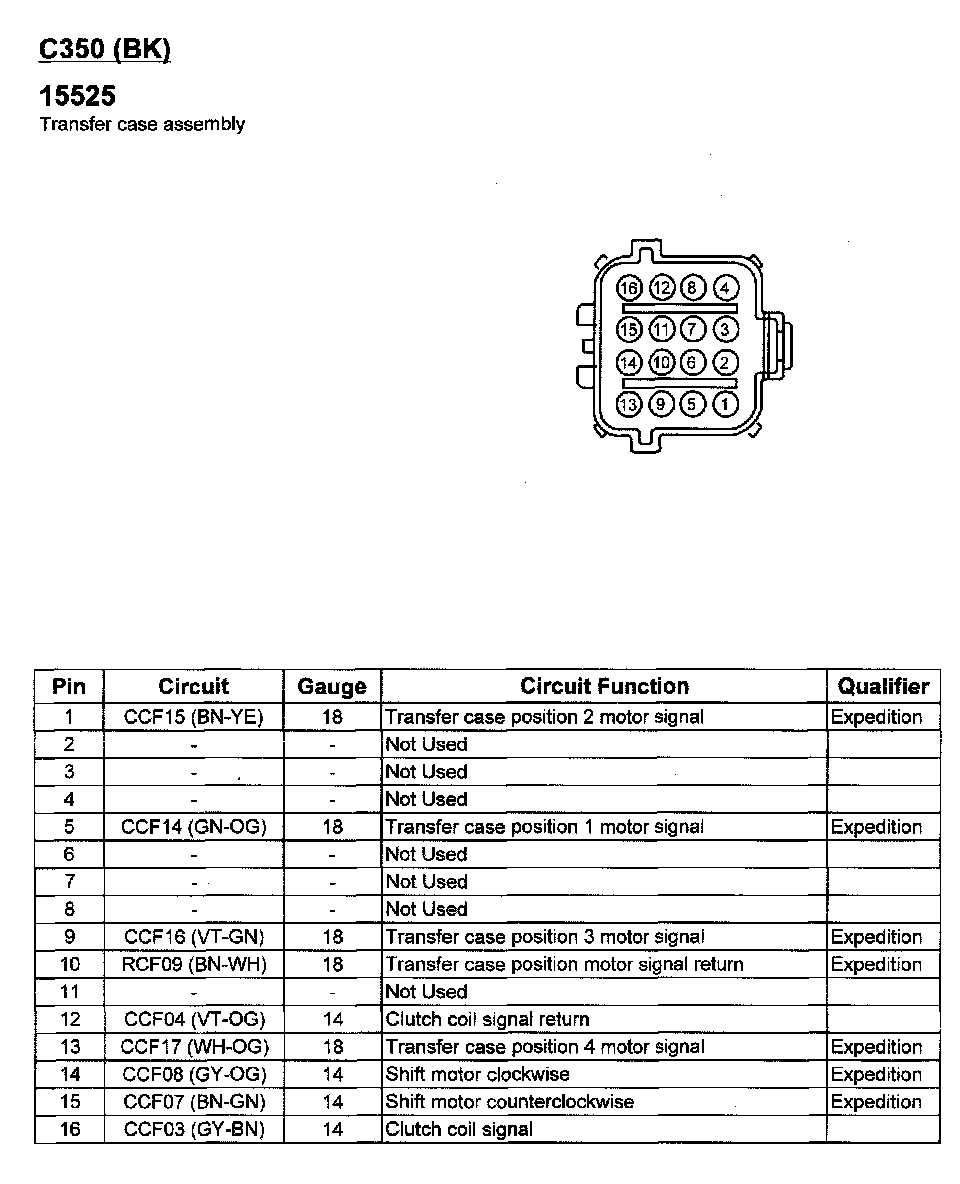

C350:
