Home
>>
Ford
>>
2007
>>
Escape 4WD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System
Exhaust System
- Exploded View

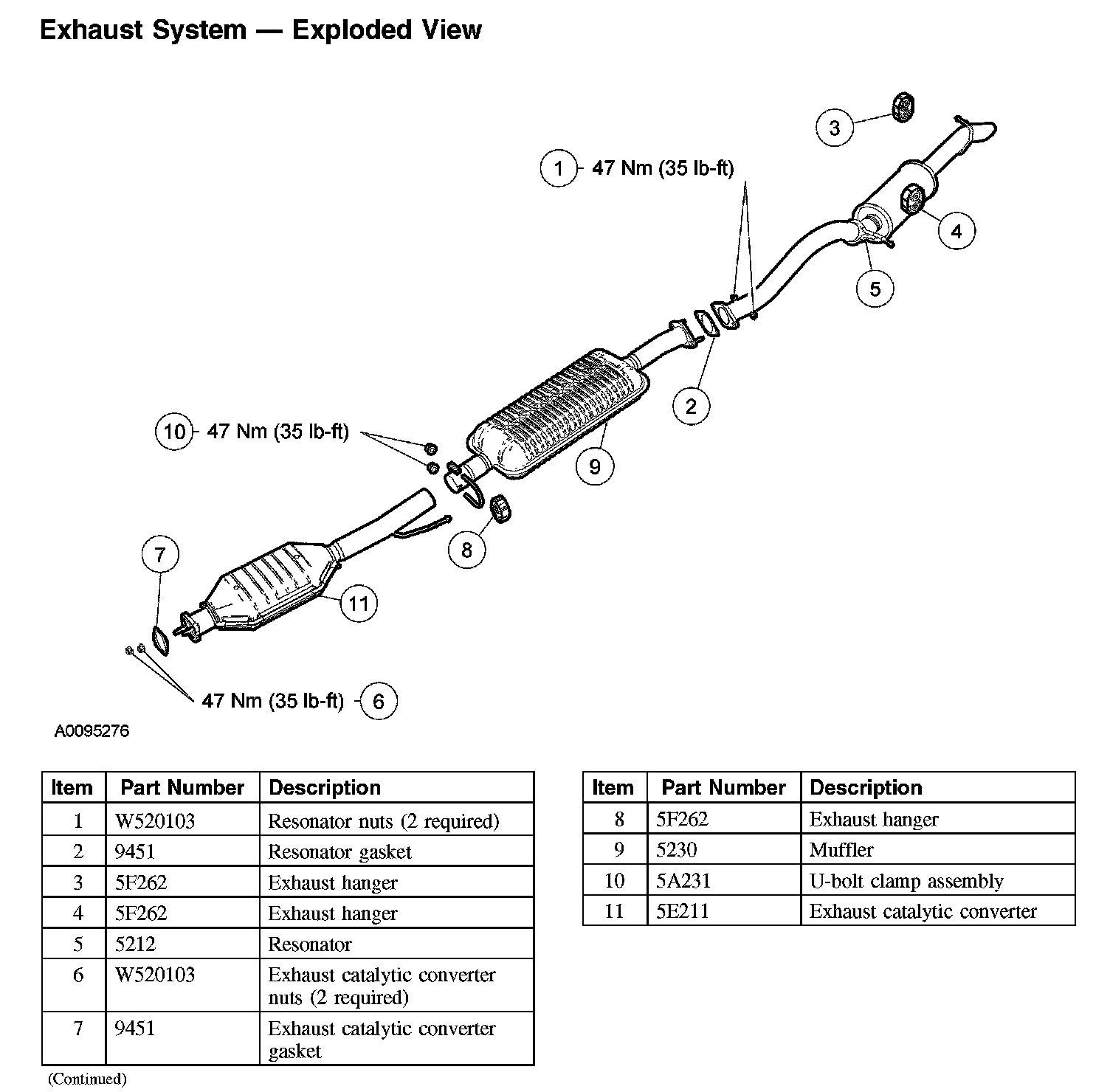

Exhaust System - Exploded View:
