Engine Lubrication

Engine Lubrication Components - Exploded View

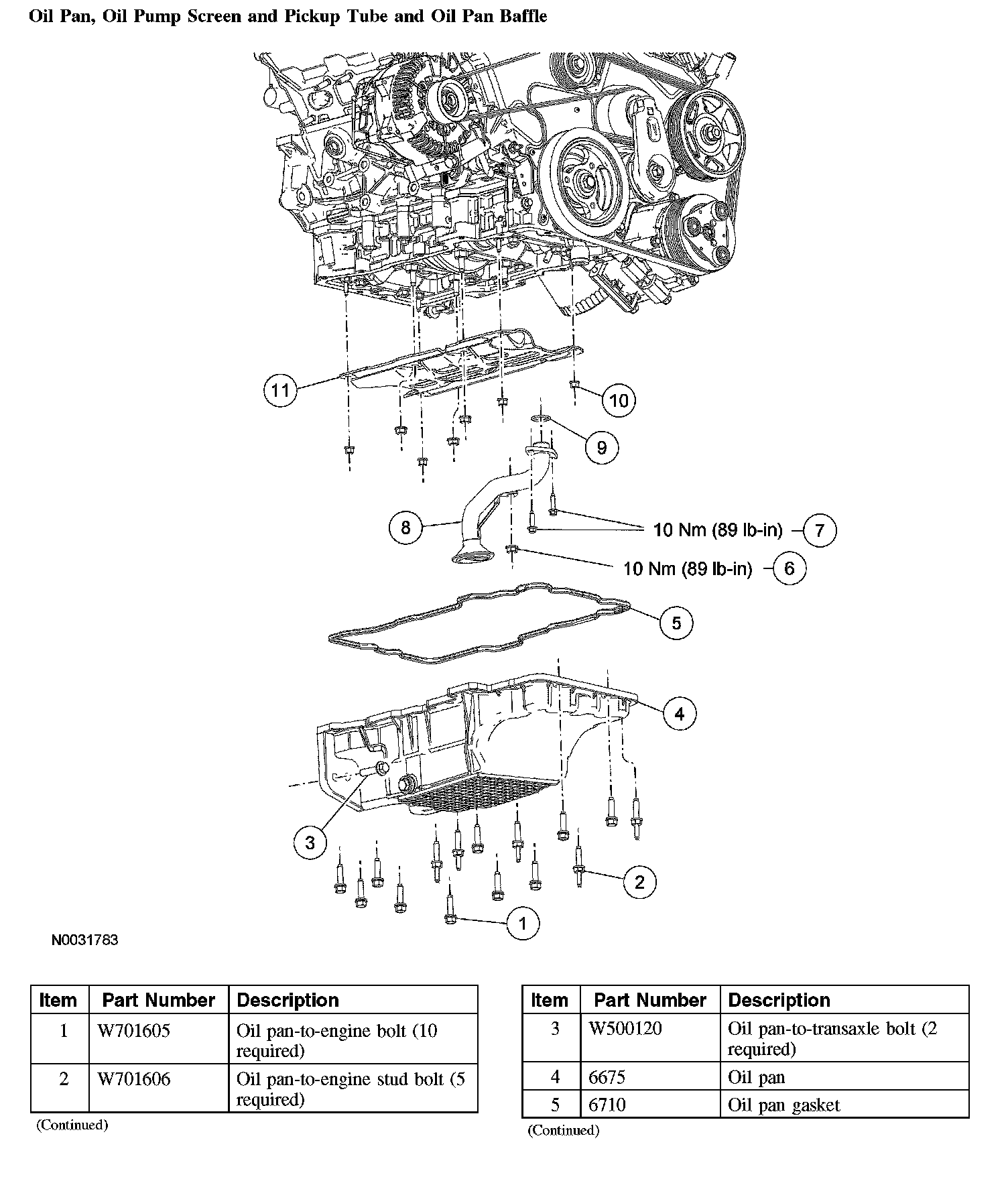

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle (Part 1):




Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle (Part 2):

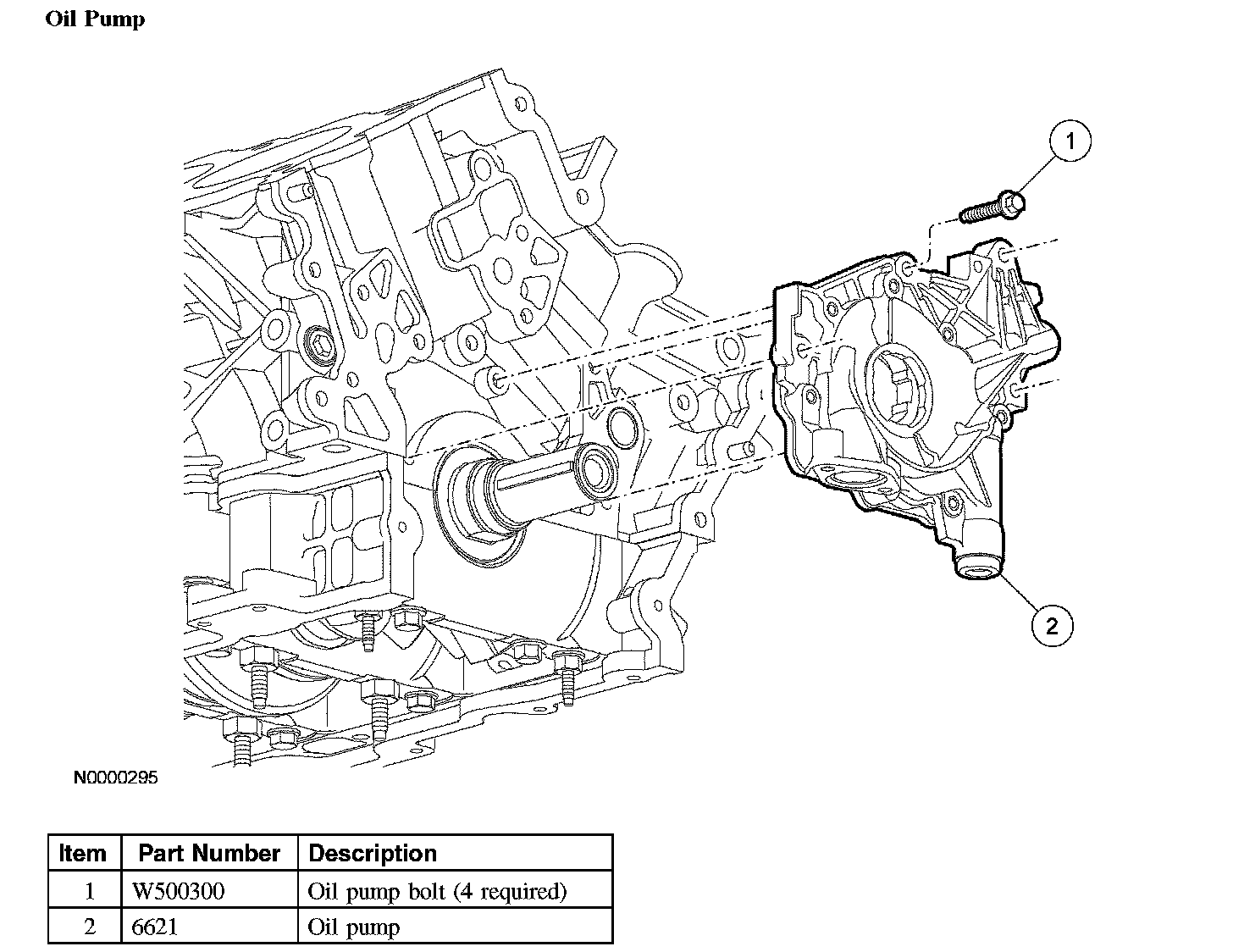

Oil Pump:
