Home >> Ford >> 2007 >> Escape 4WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case

Control Module, Transfer Case

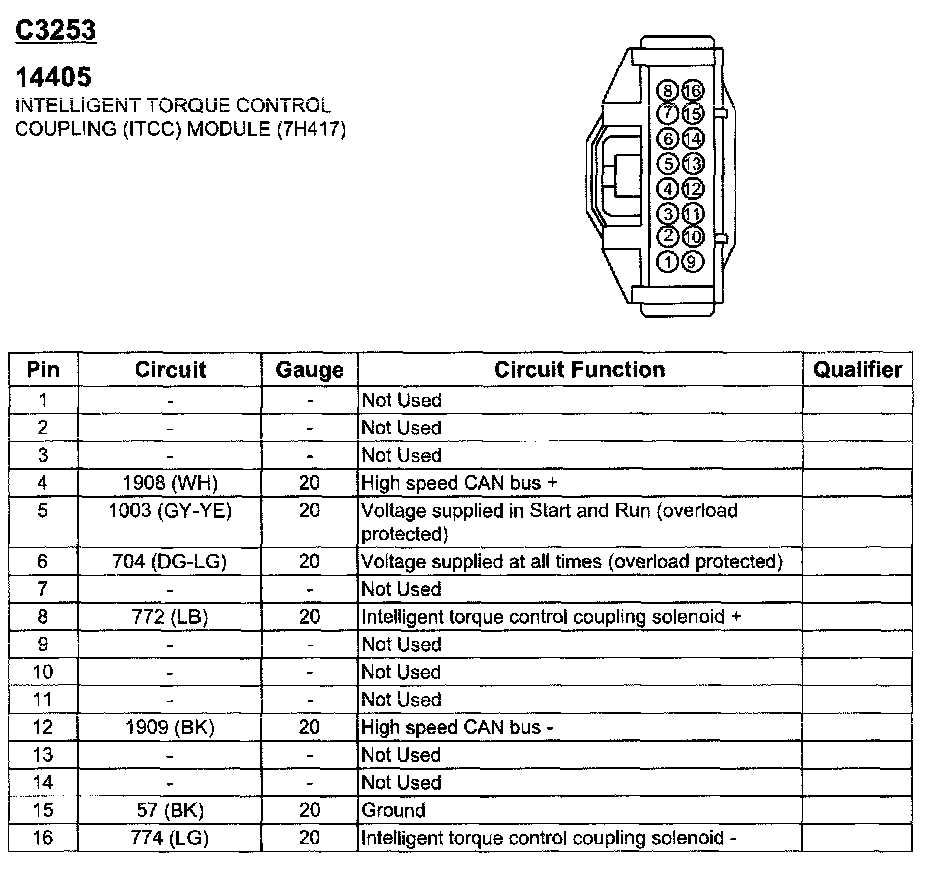

C3253:
