Home >> Ford >> 2007 >> Escape 4WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C340

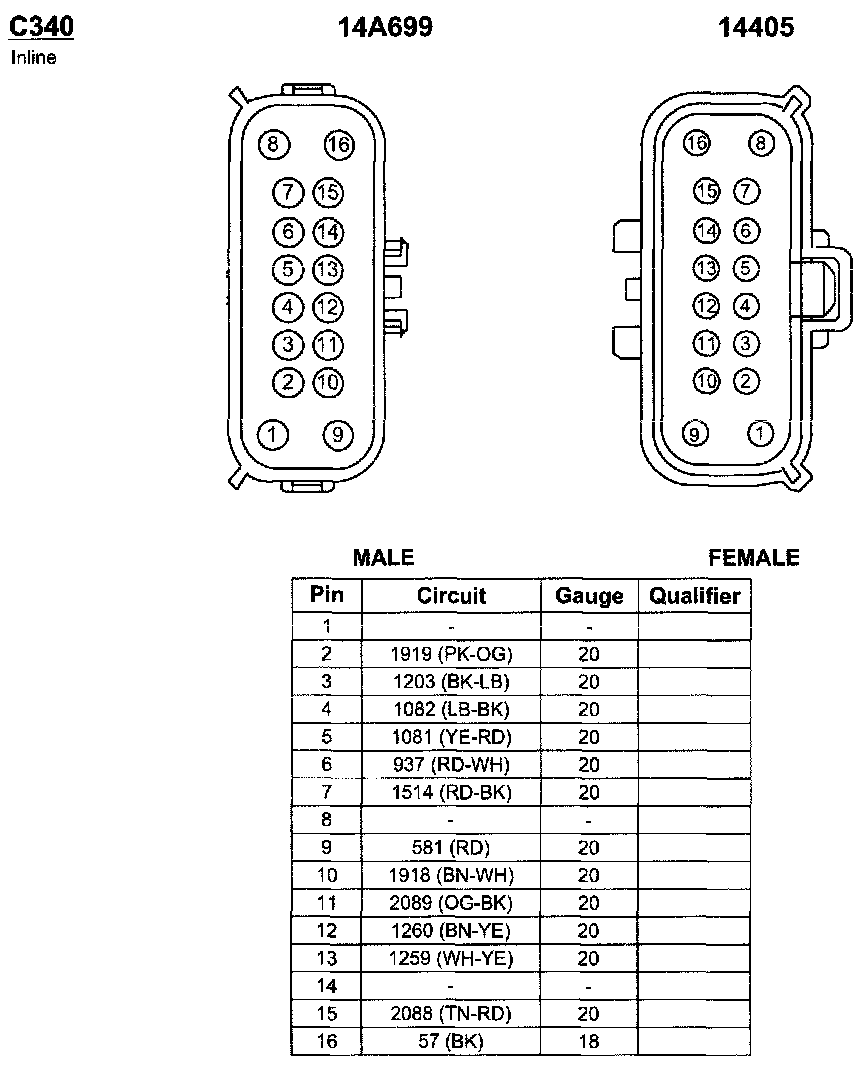

C340

C340:
