Home >> Ford >> 2007 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

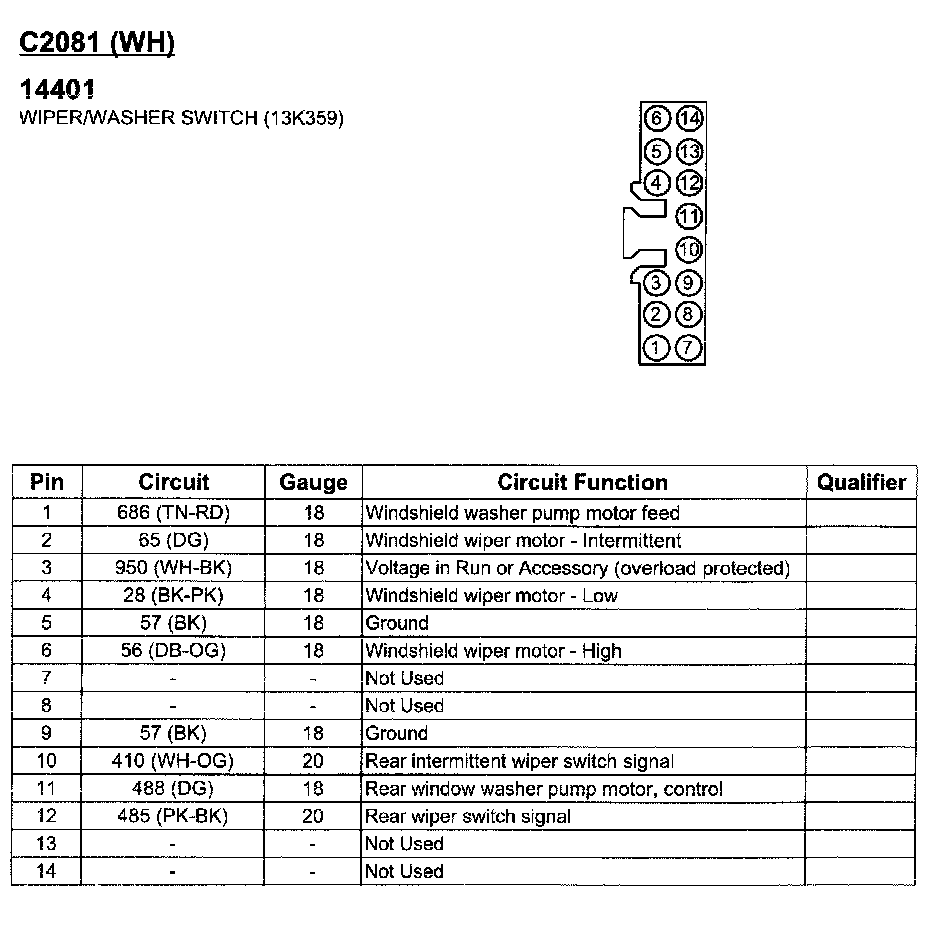

Wiper Switch

C2081:
