Home
>>
Ford
>>
2007
>>
Escape 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

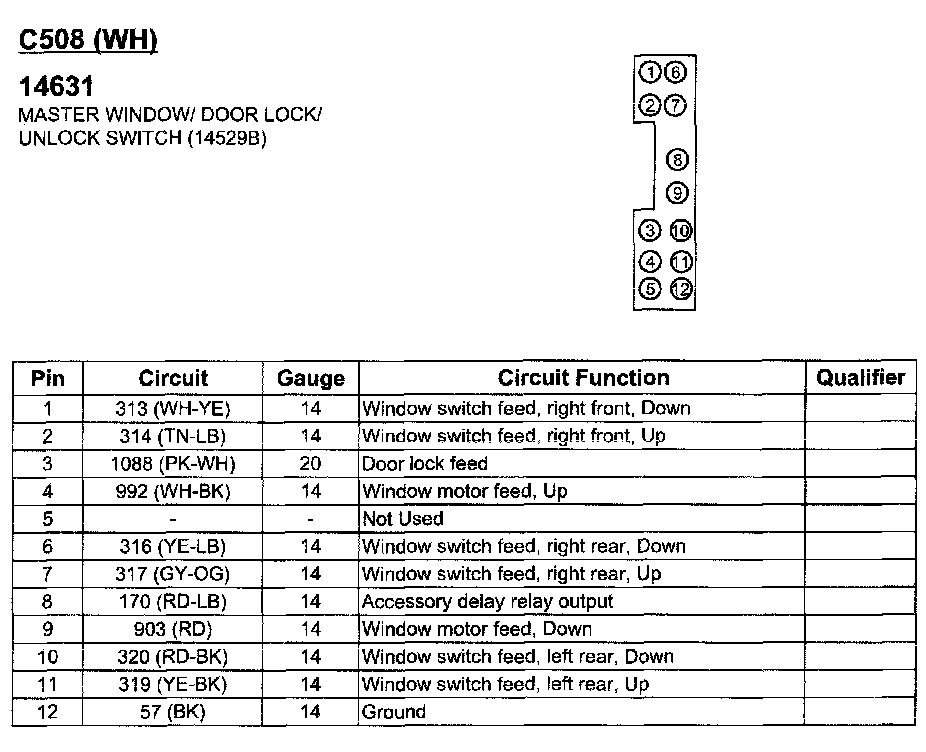

Master Window/Door Lock/Unlock Switch
Master Window/Door Lock/Unlock Switch
C508:
