Test A: Functional Test

Pinpoint Test A: Functional Test

CAUTION: This test must be carried out on a hard surface in an area without traffic.

NOTE: Conduct Steps 1 through 7 outlined in Inspection and Verification prior to carrying out this test. Inspection and Verification

Possible Causes
^ The concern description is inaccurate.

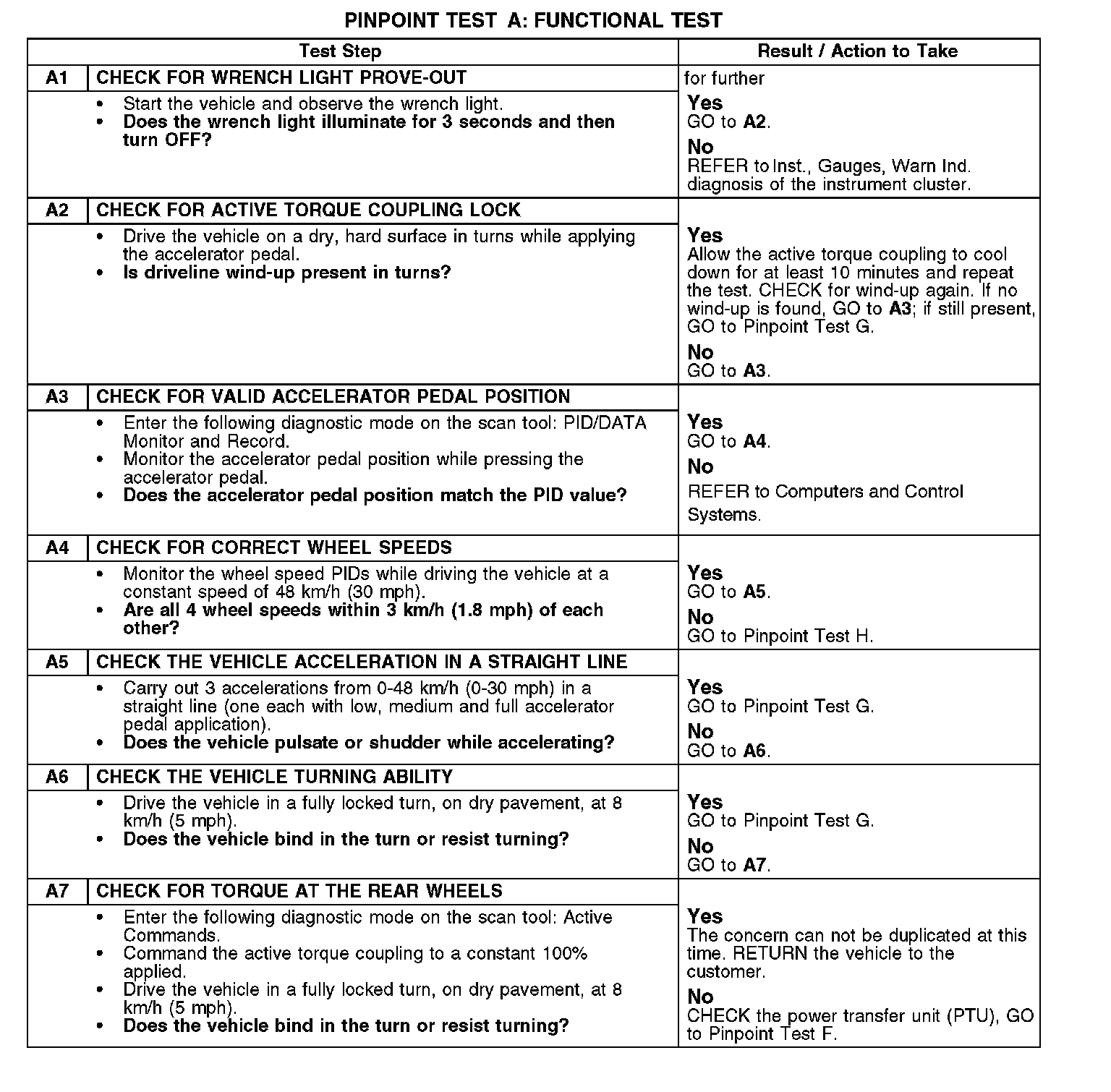

PINPOINT TEST A: FUNCTIONAL TEST

A1-A7:
