Tests DY: Engine Oil Temperature (EOT) Sensor

PINPOINT TEST DY: ENGINE OIL TEMPERATURE (EOT) SENSOR

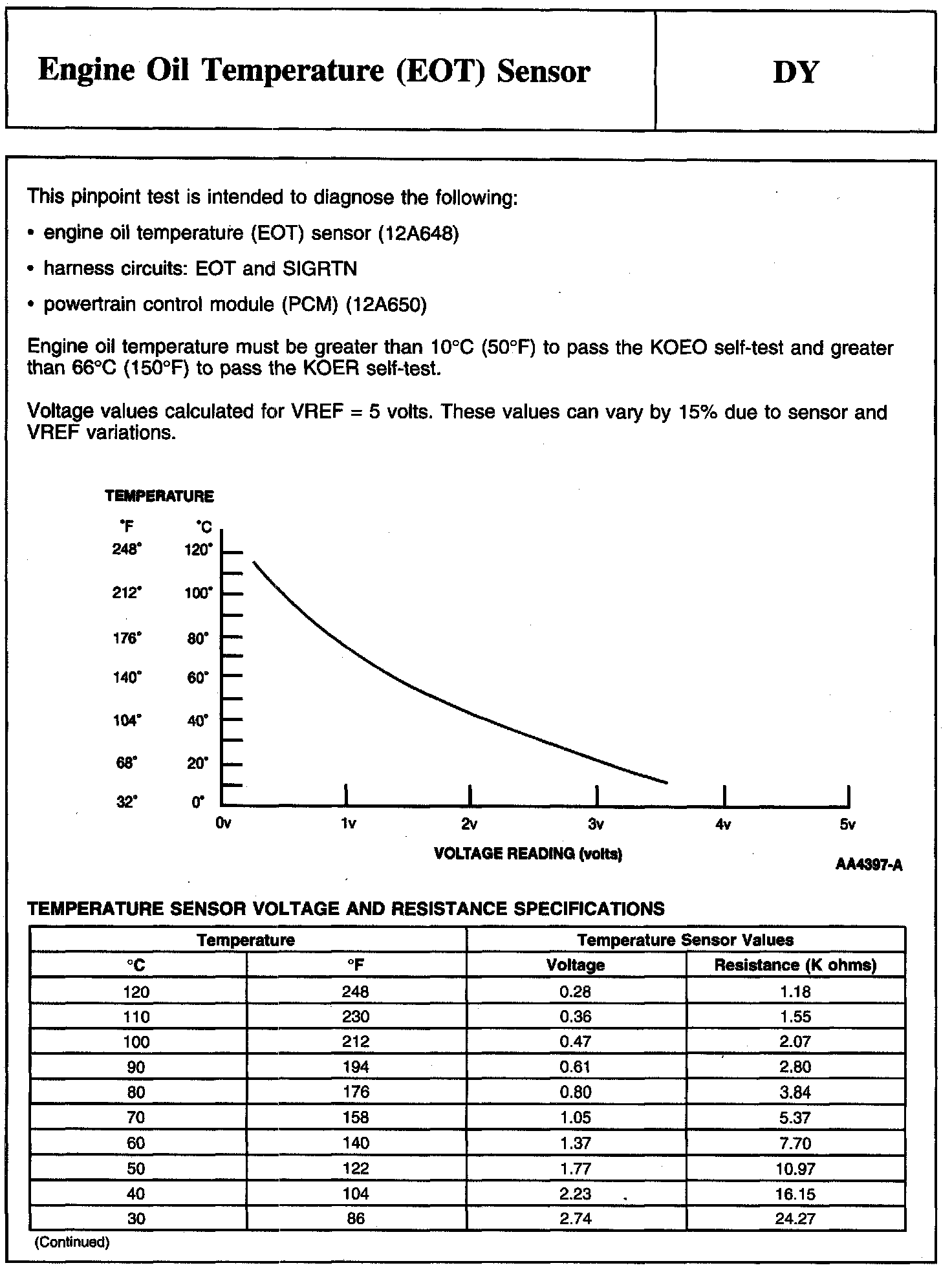

Graph And Table:

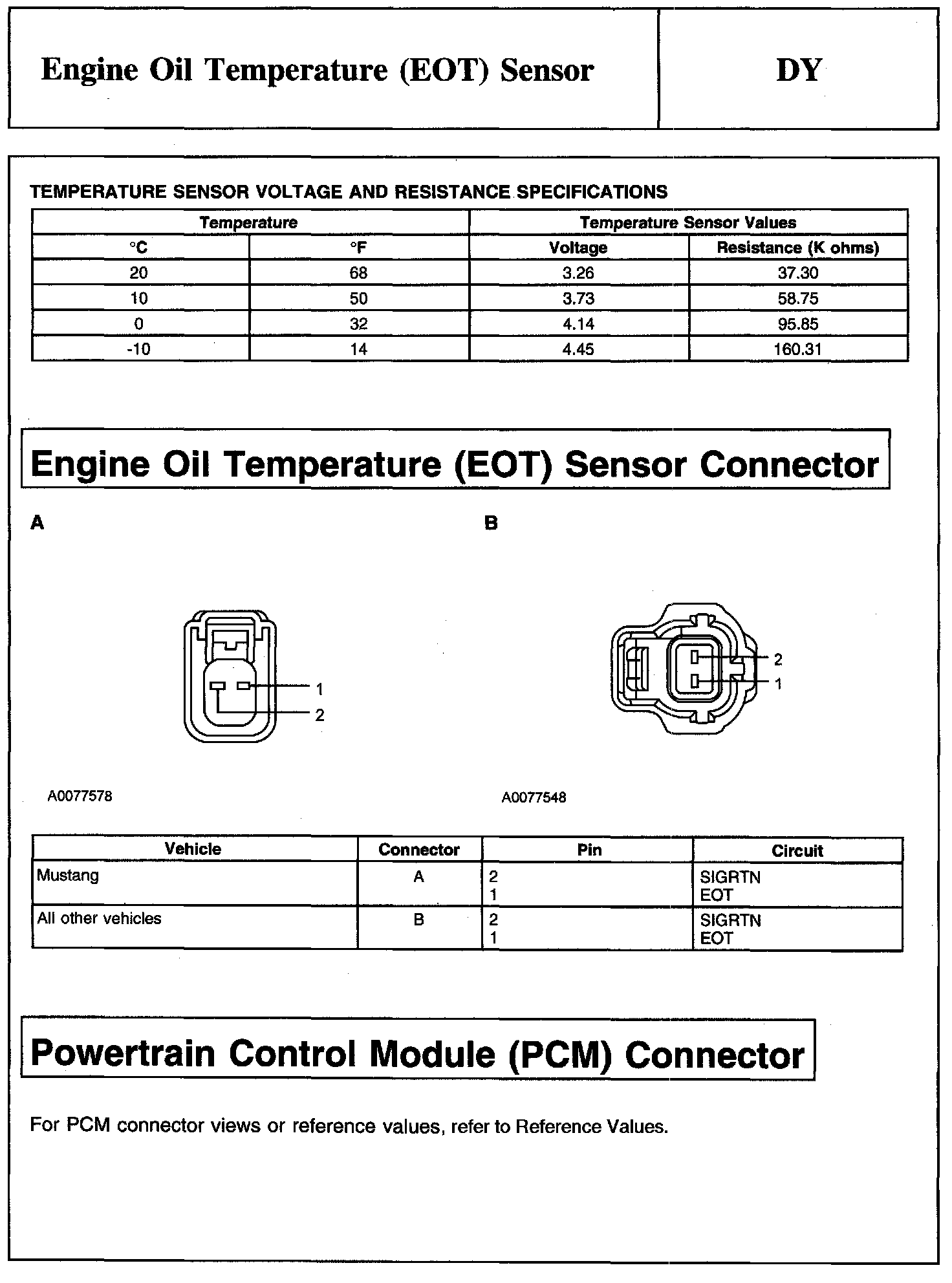

Table, Engine Oil Temperature (EOT) Sensor Connector And Powertrain Control Module (PCM) Connector:

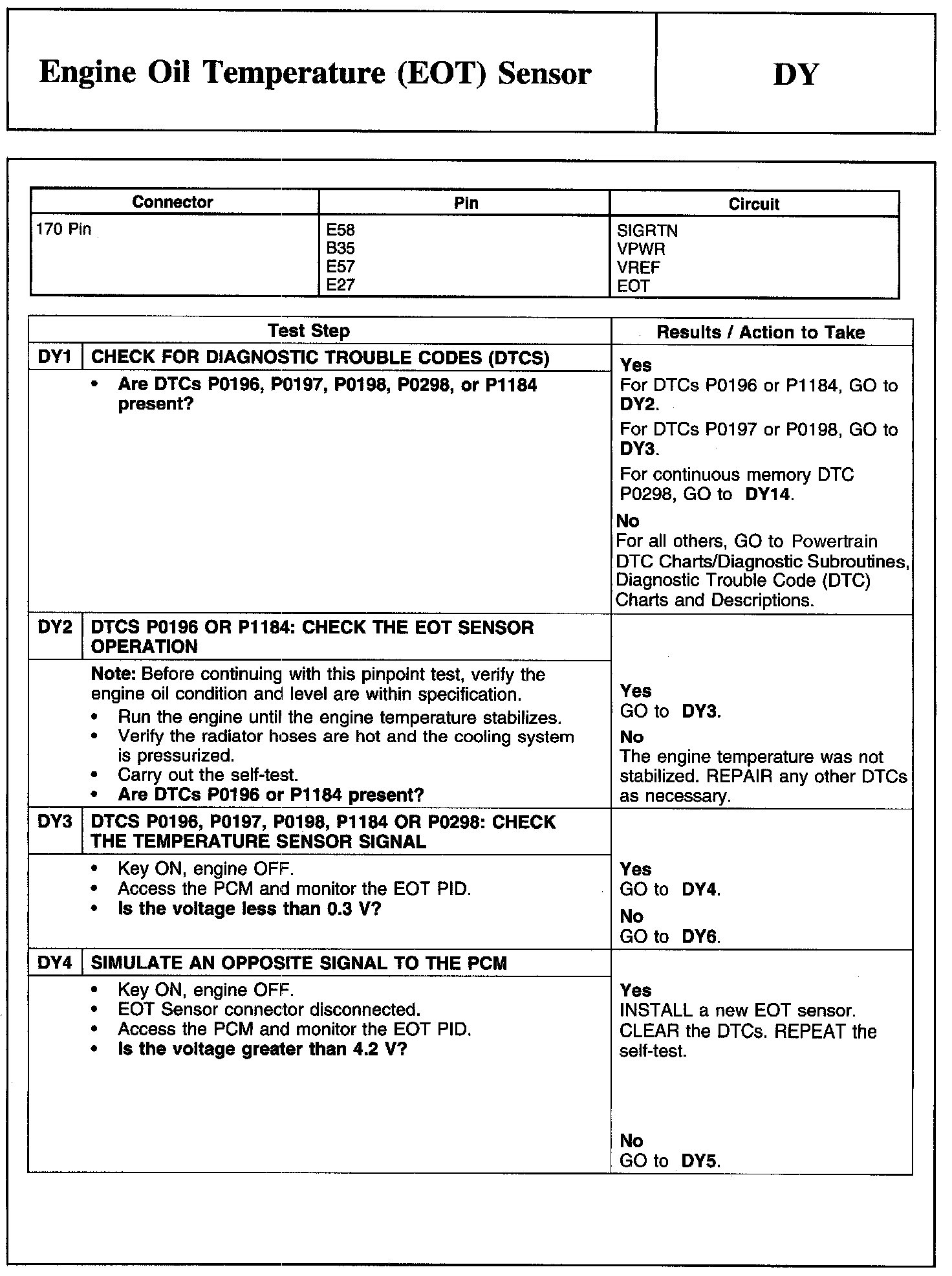

DY1-DY4:

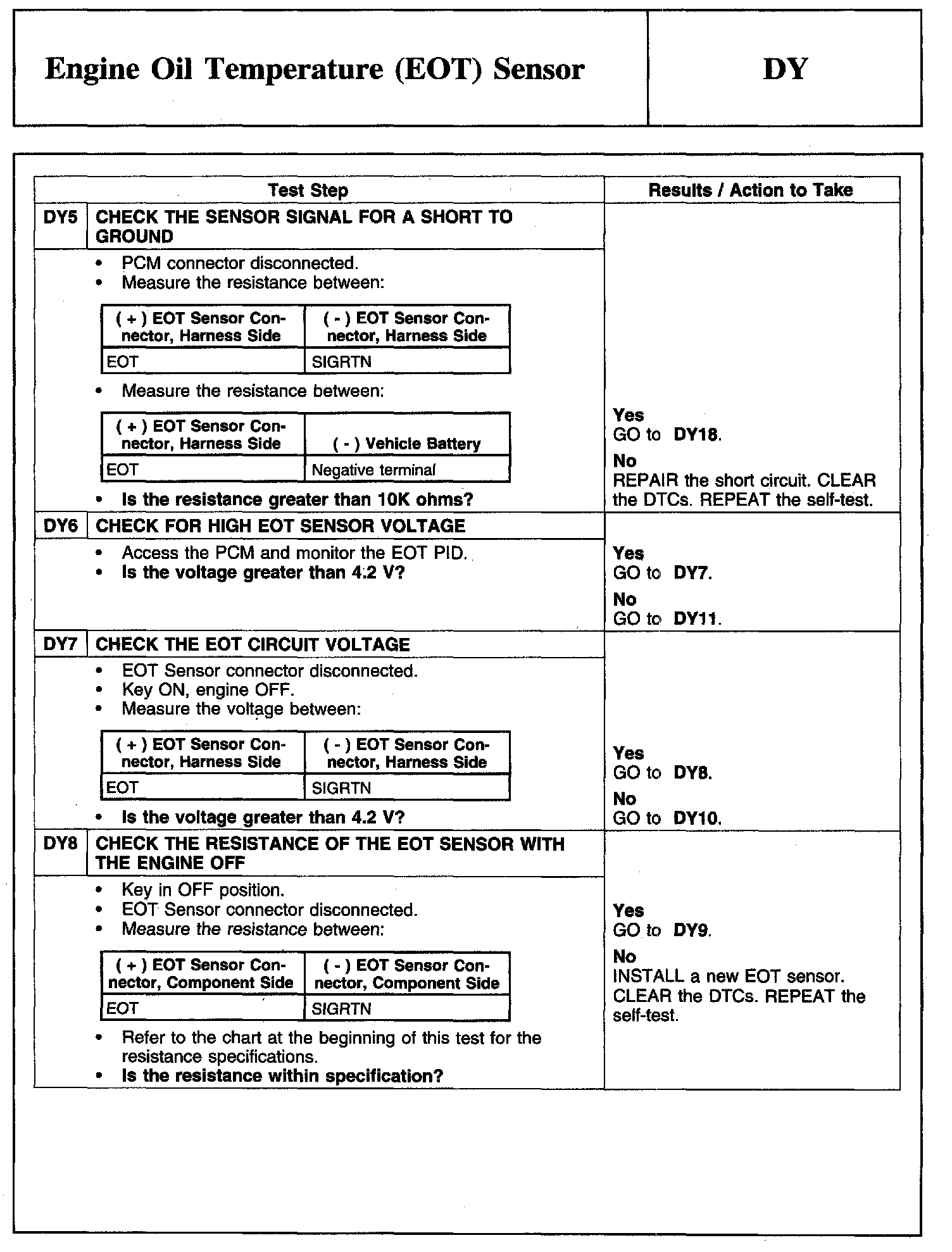

DY5-DY8:

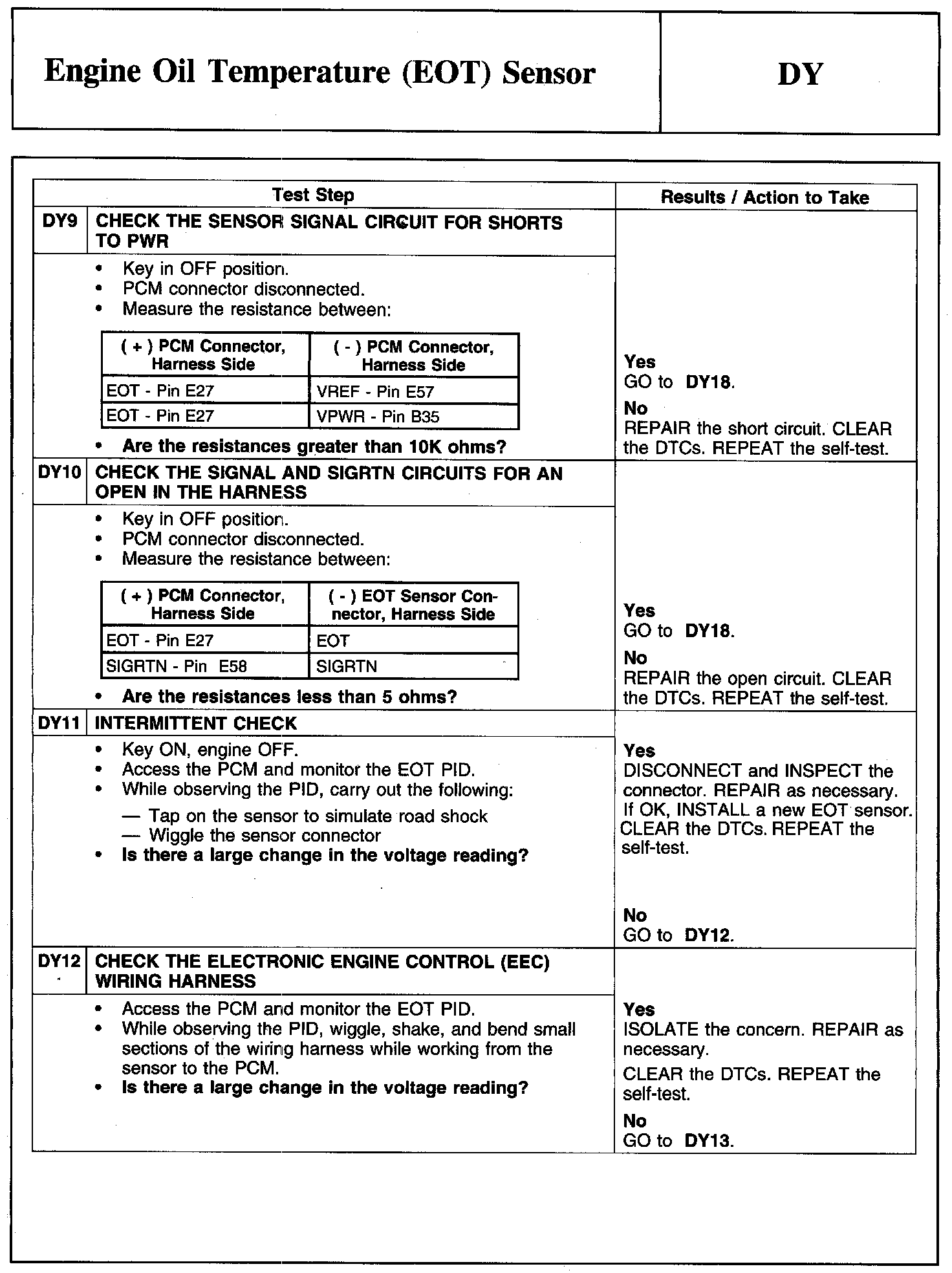

DY9-DY12:

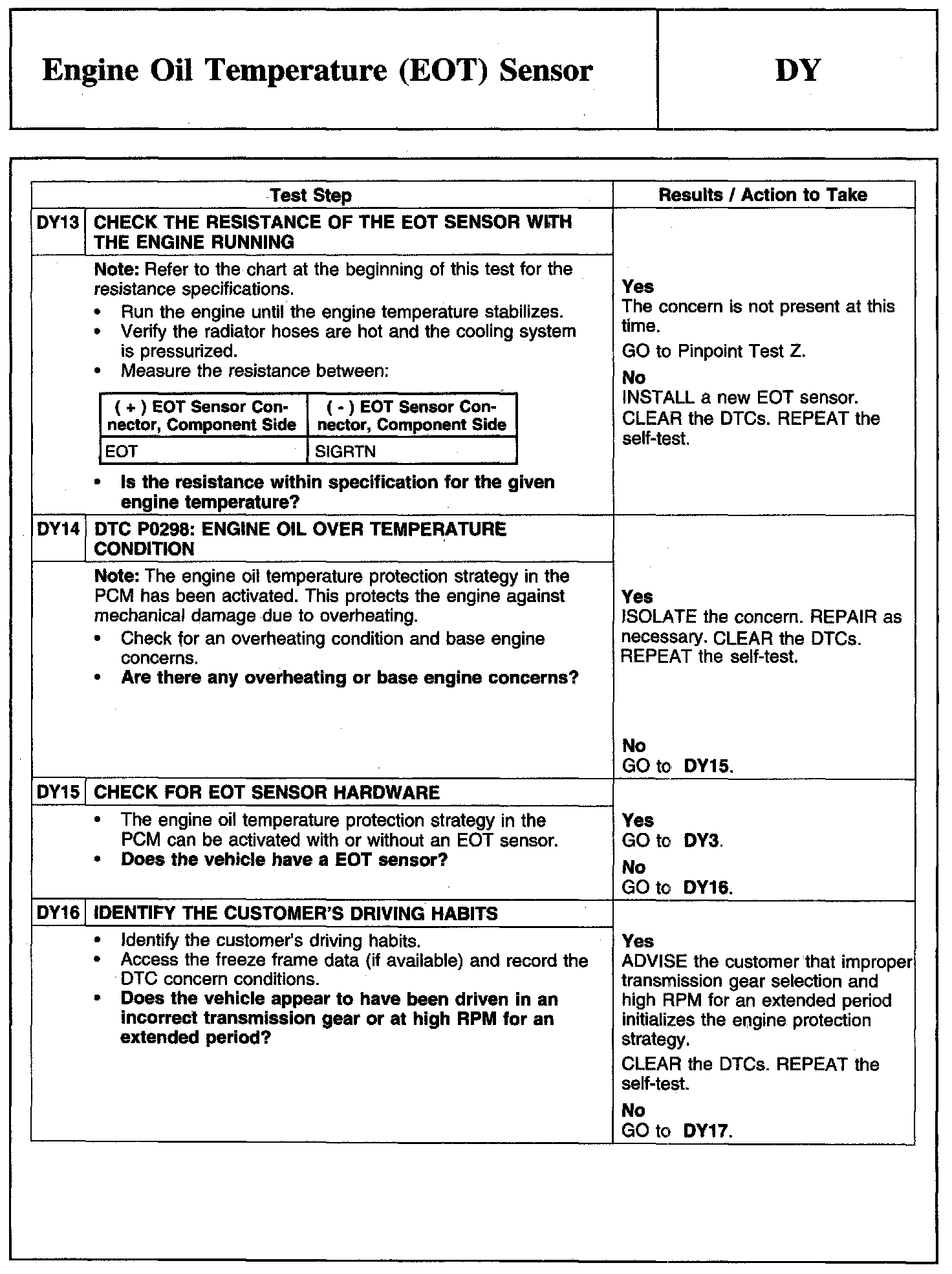

DY13-DY16:

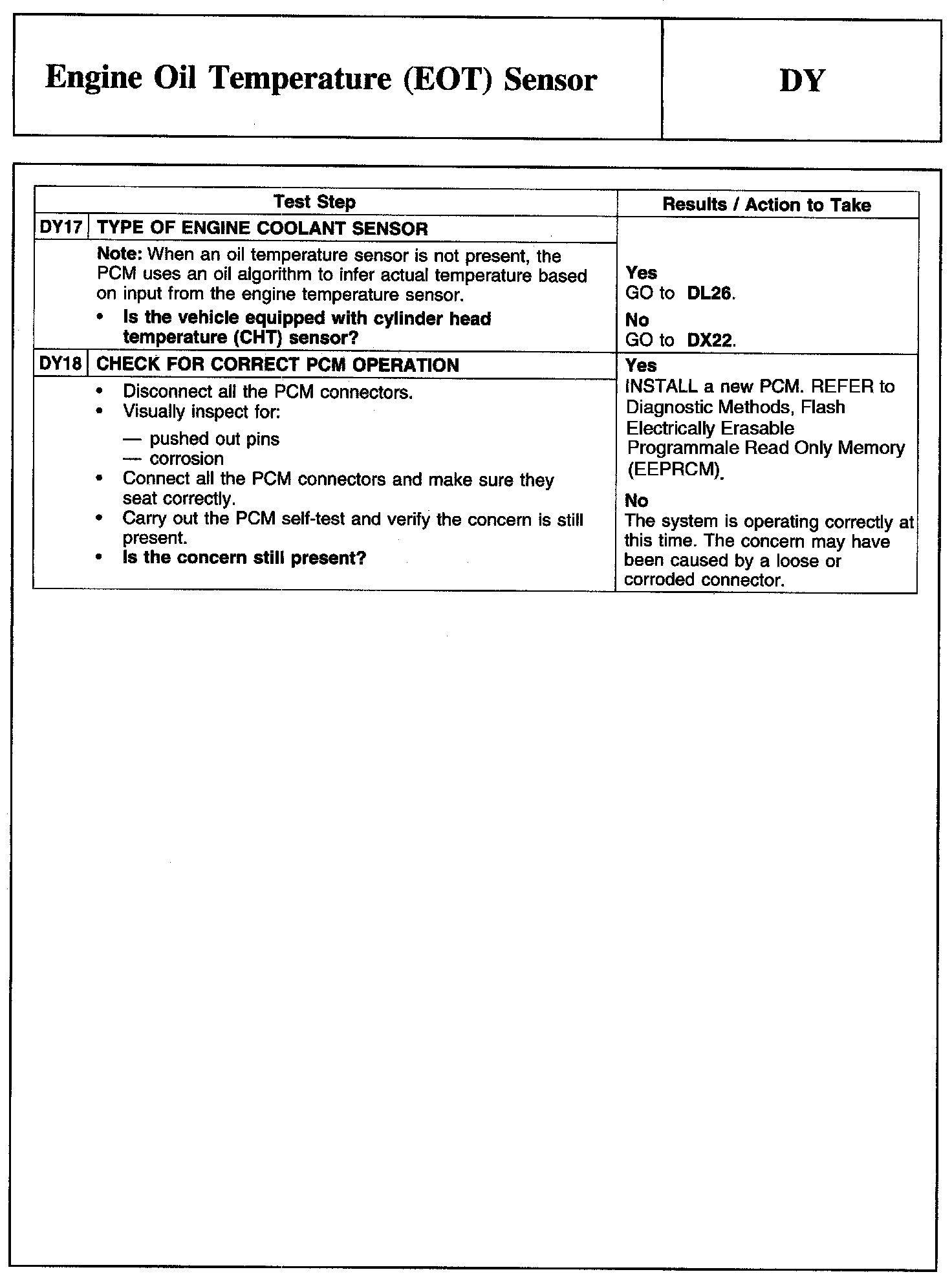

DY17-DY18:
