Test A: No Start



PINPOINT TEST A: NO START


ETPS Connector And DLC:

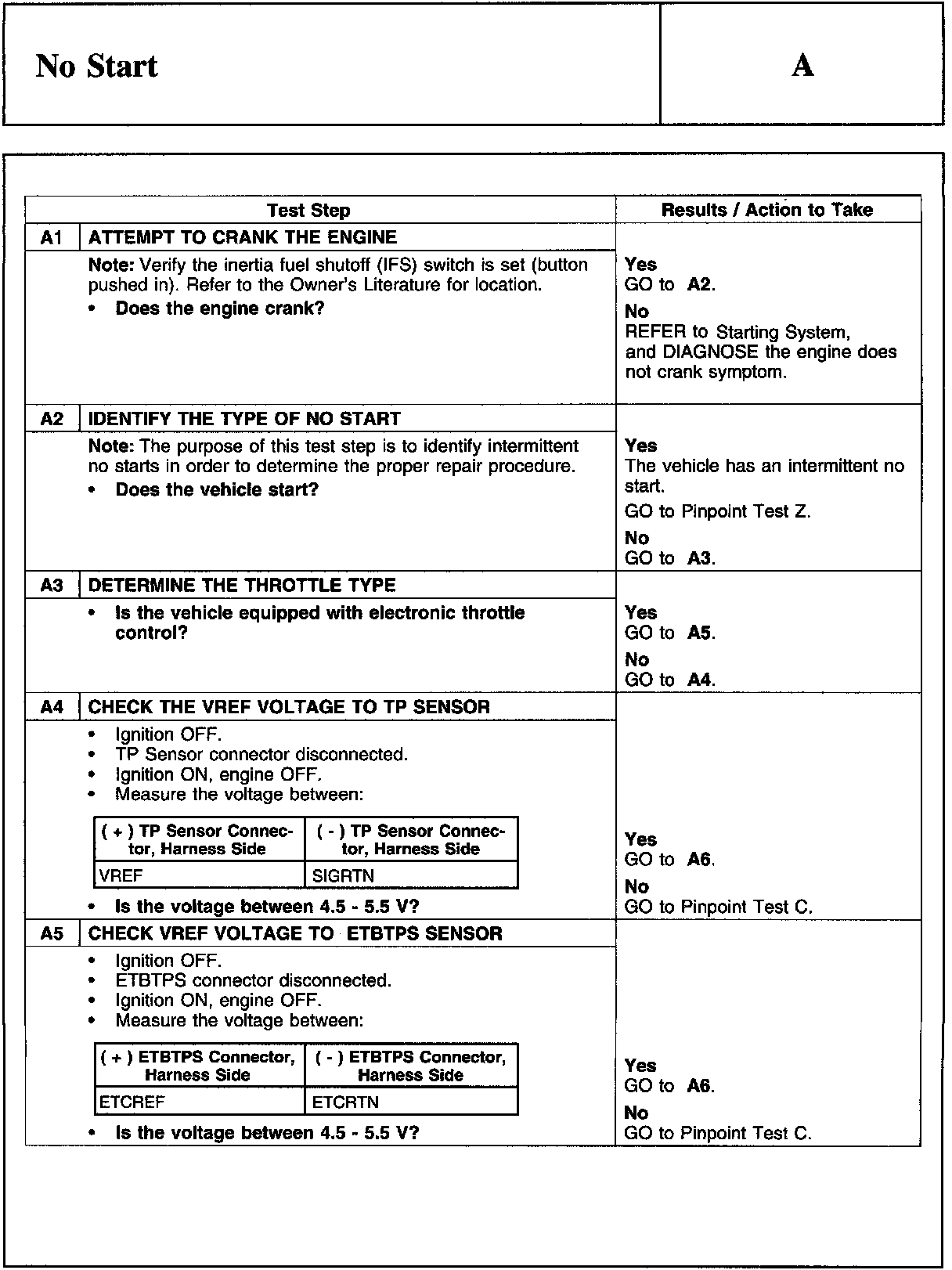

A1-A5:

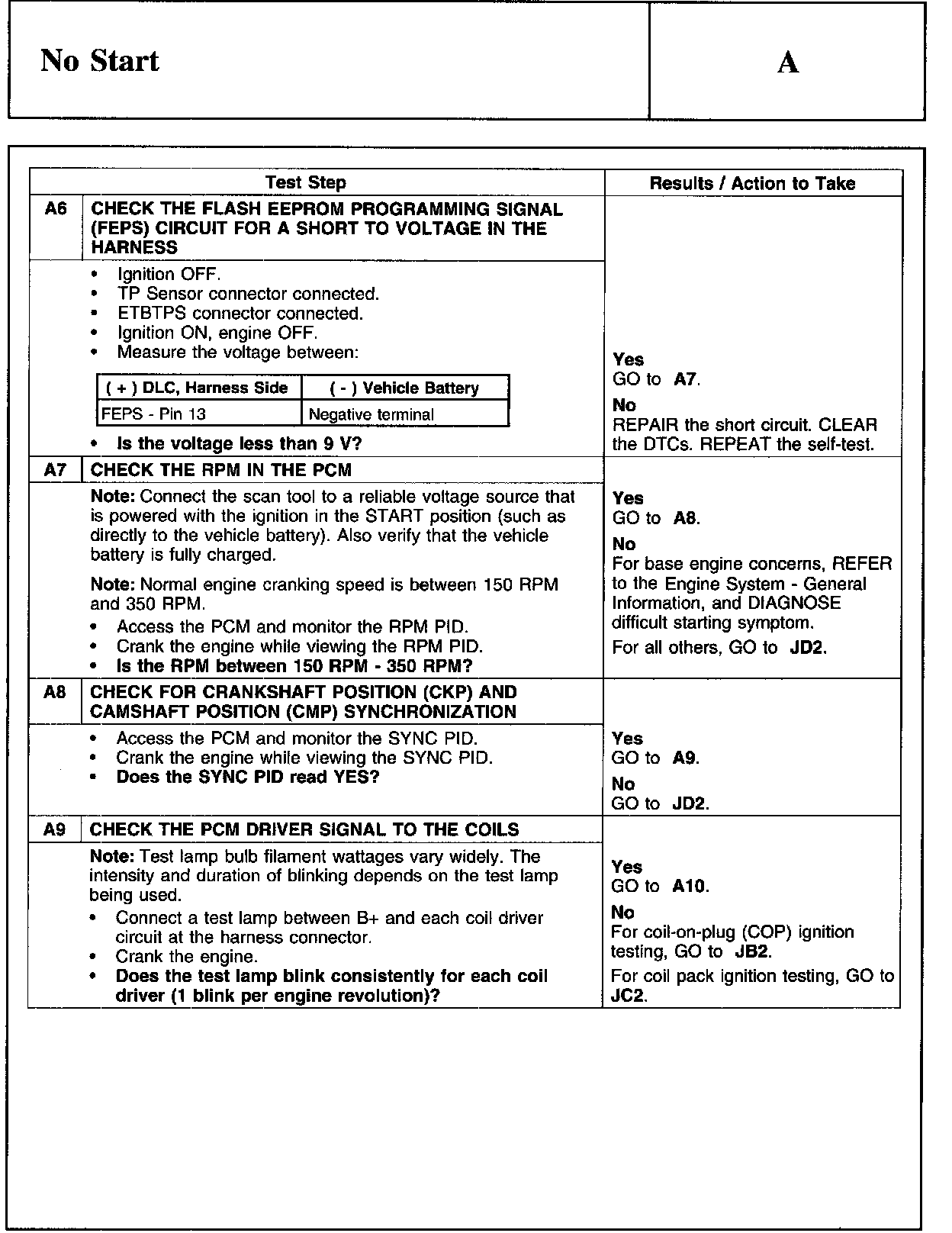

A6-A9:

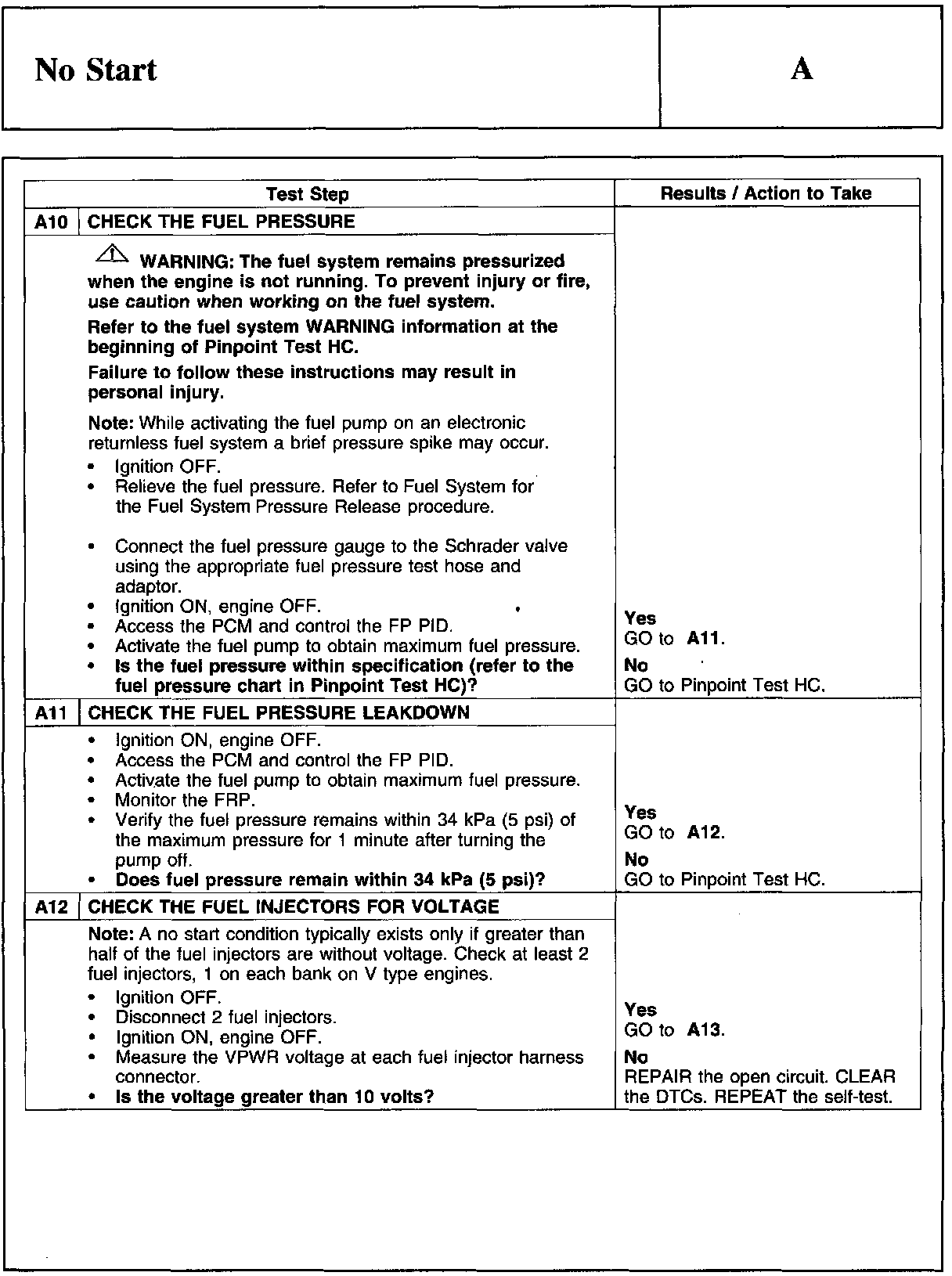

A10-A12:

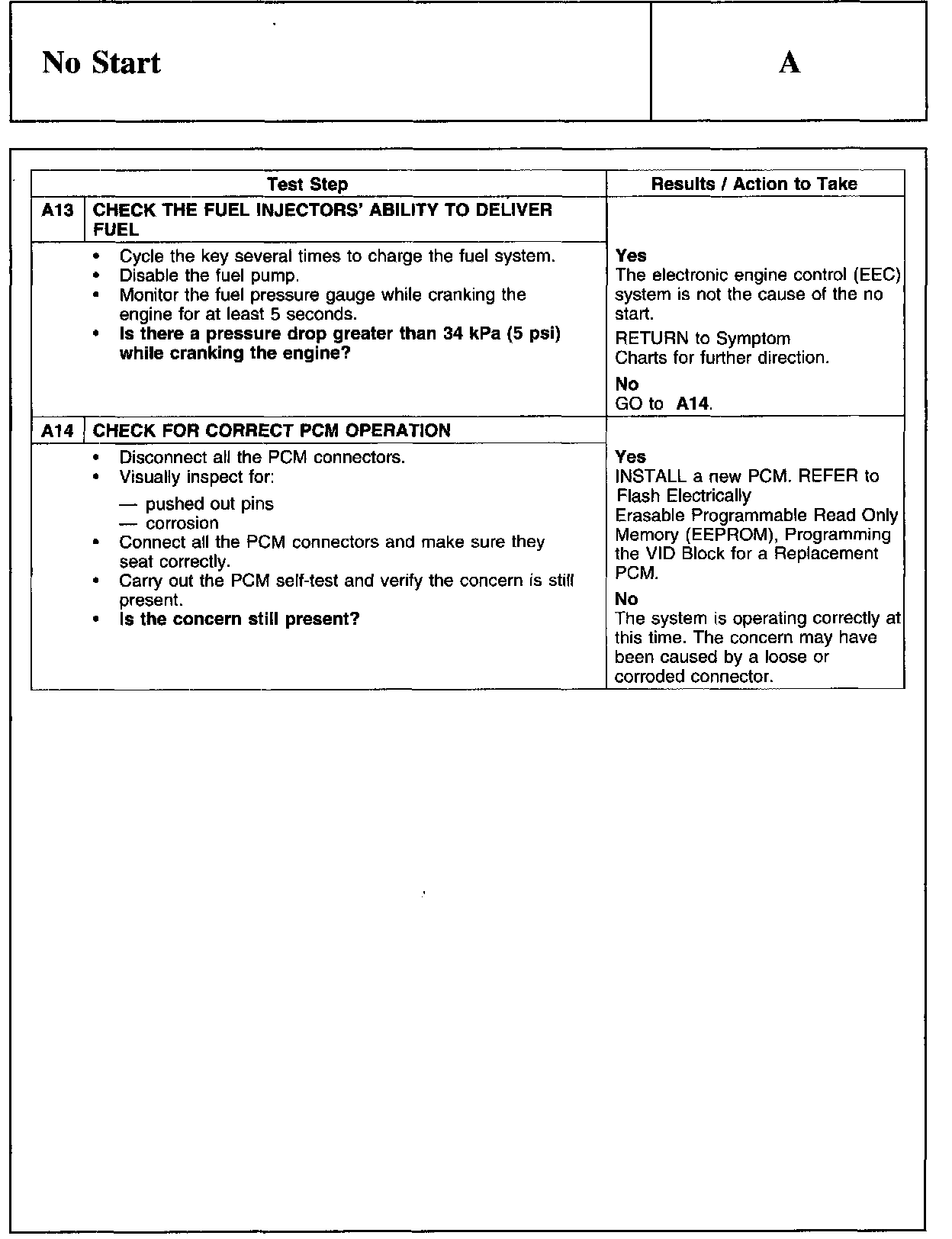

A13-A14:
