Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

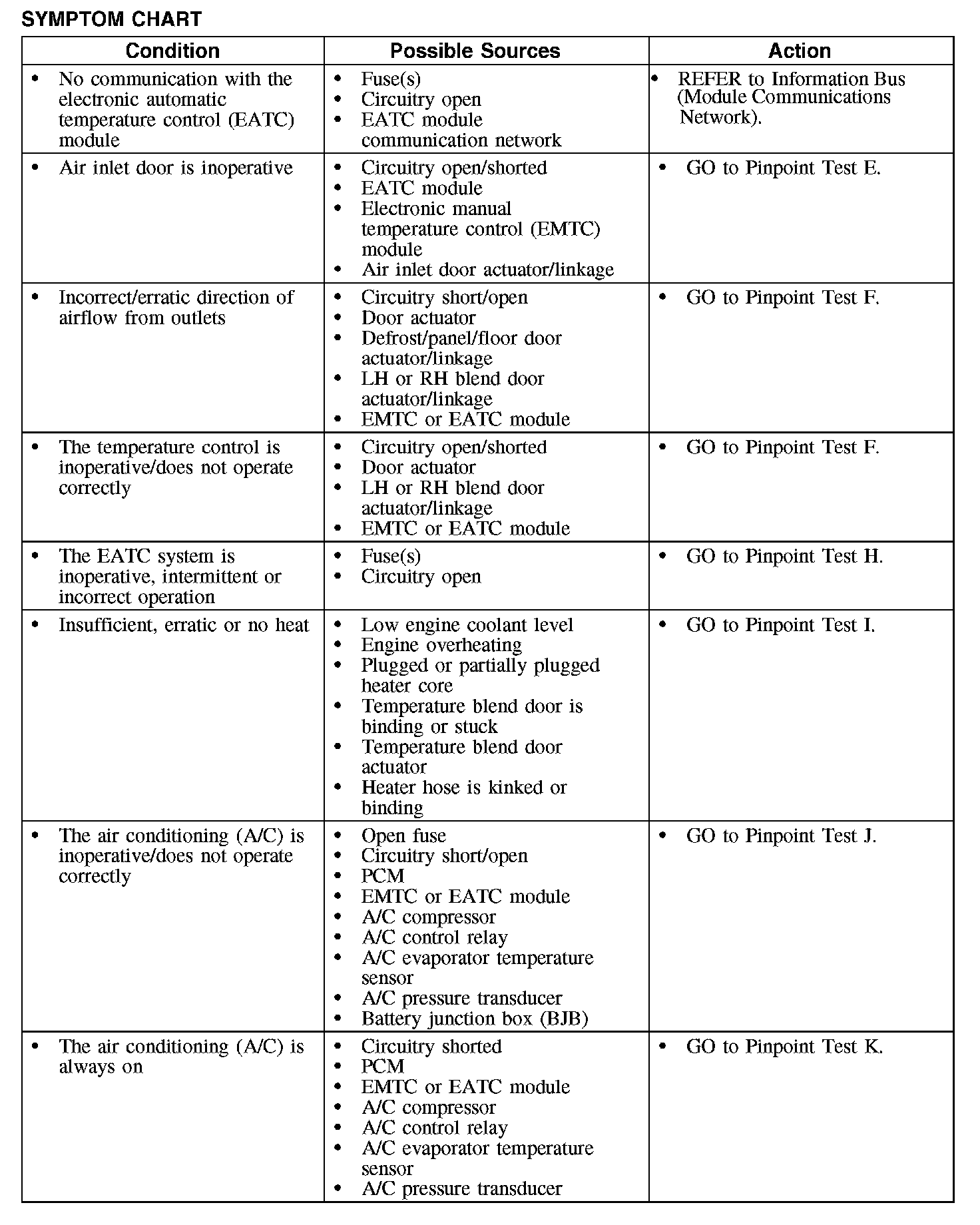

Symptom Chart (Part 1):

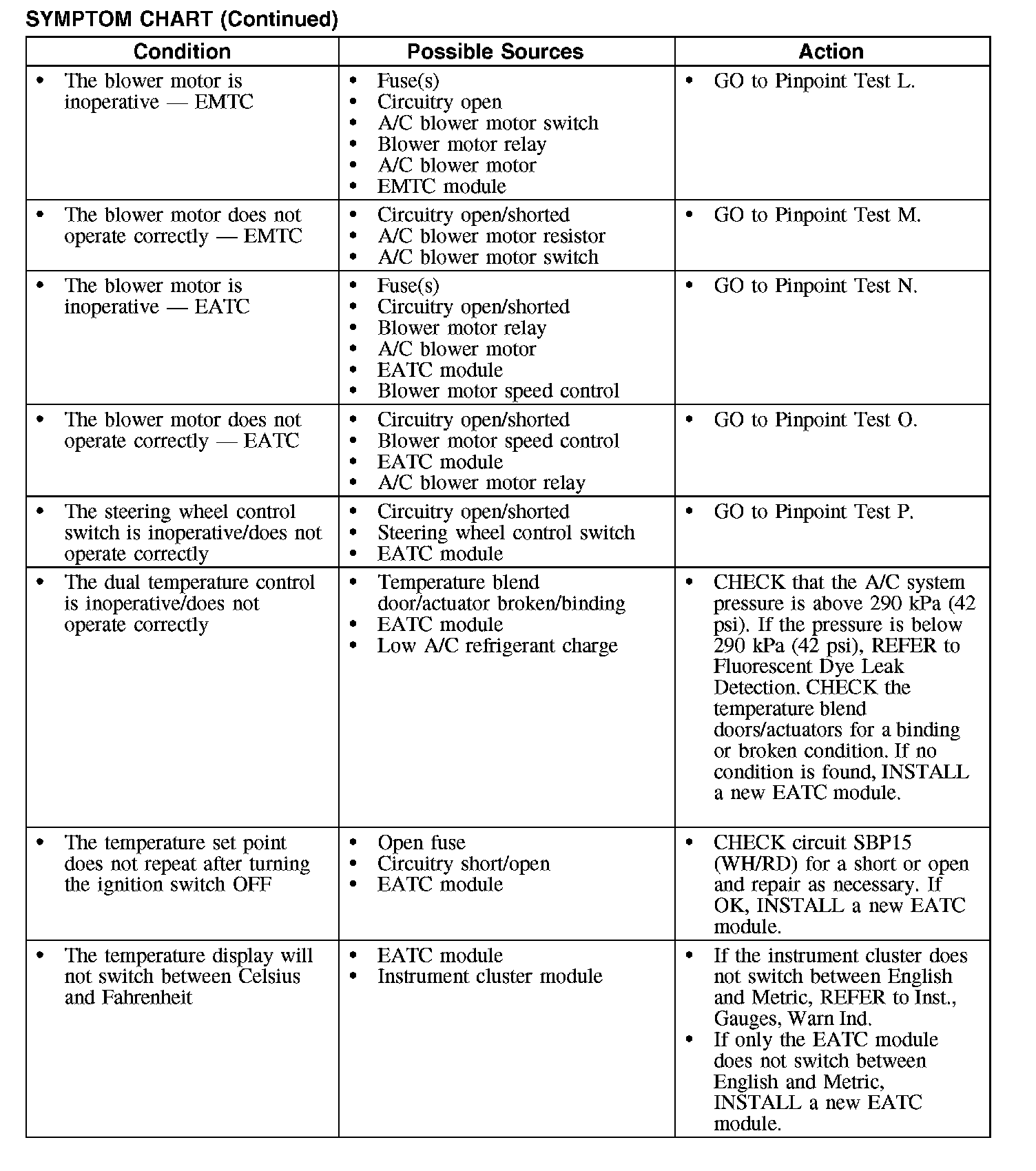

Symptom Chart (Part 2):

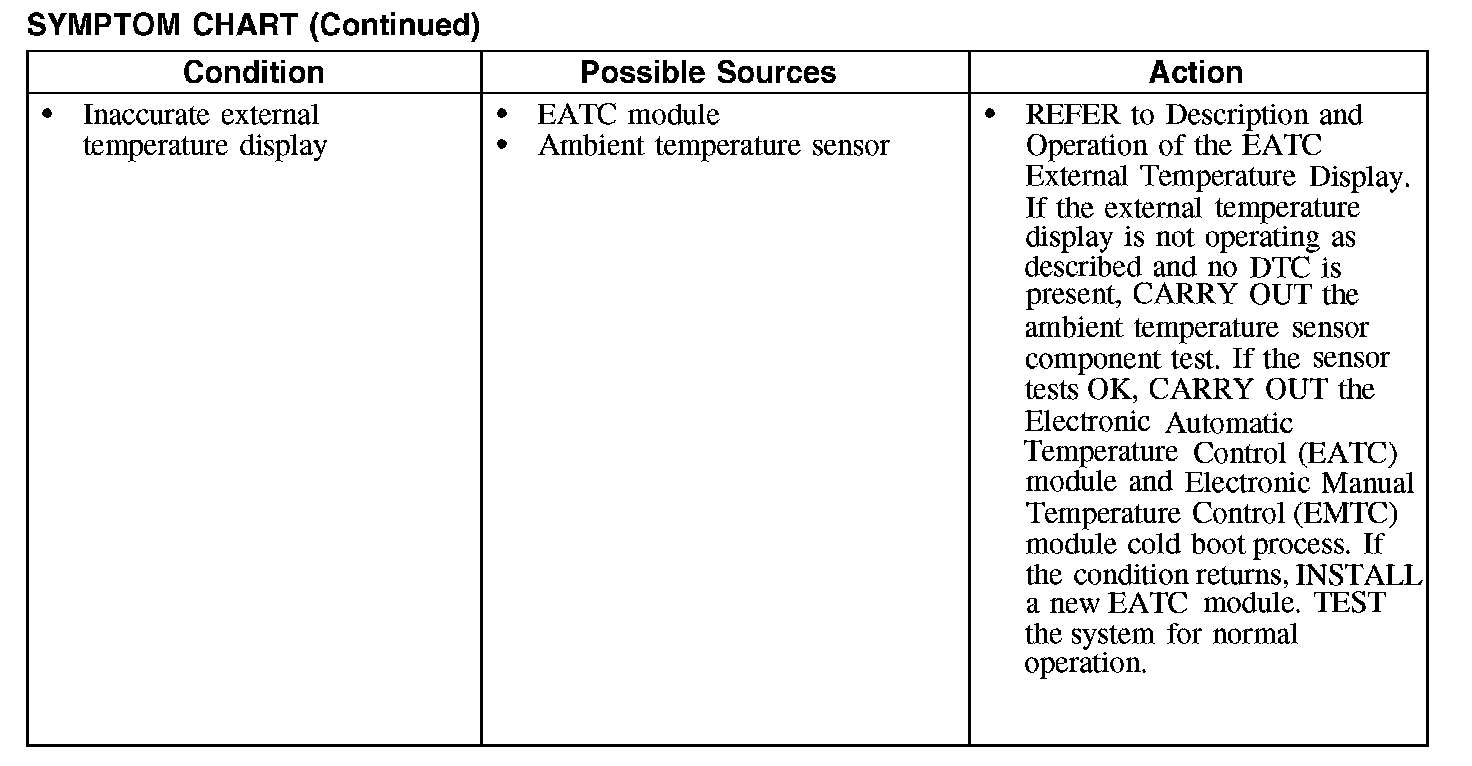

Symptom Chart (Part 3):
