Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Switch >> Locations

Blower Motor Switch: Locations

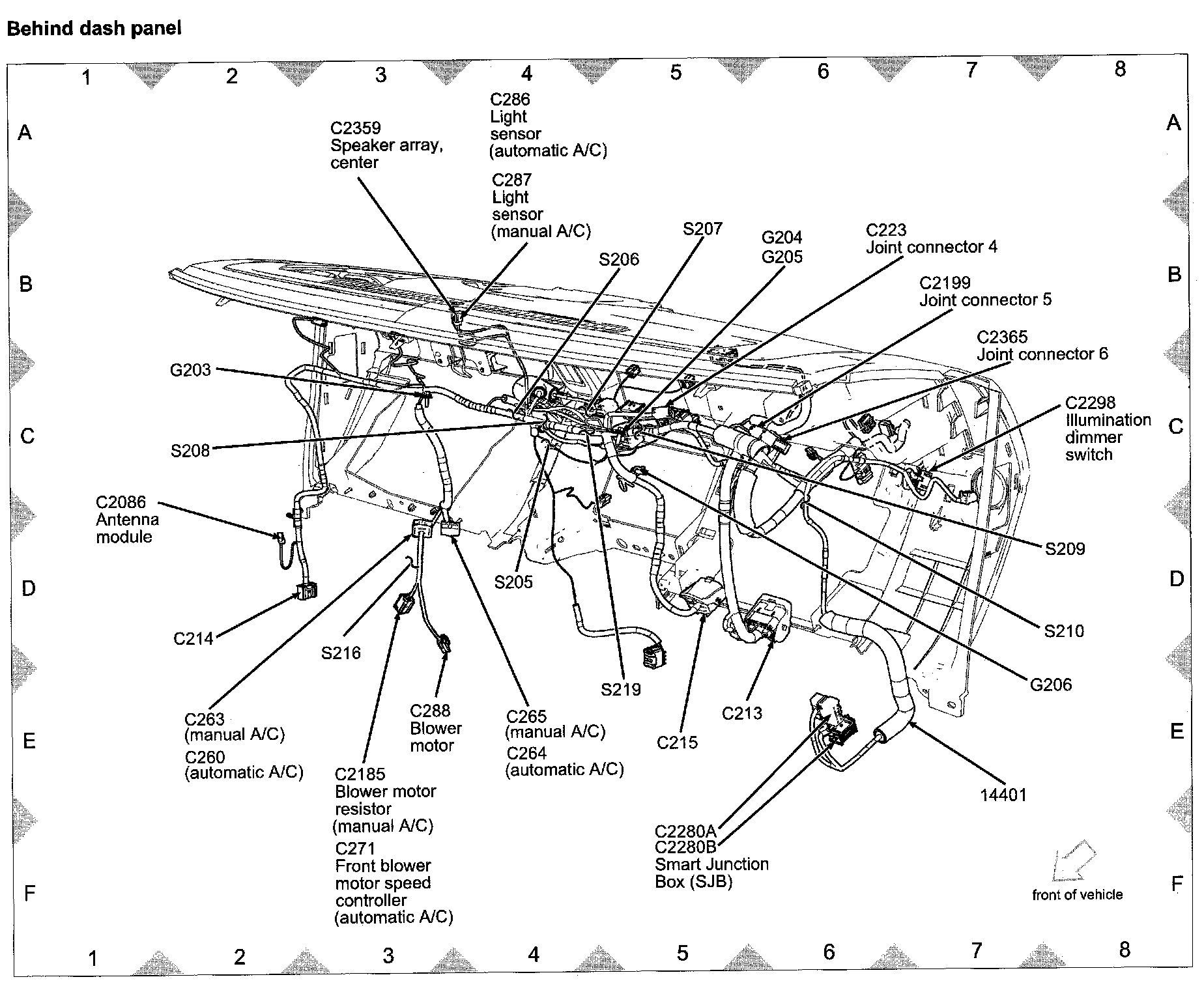

View 151-8 (behind Dash Panel):
