System Diagram

Engine - Lower End

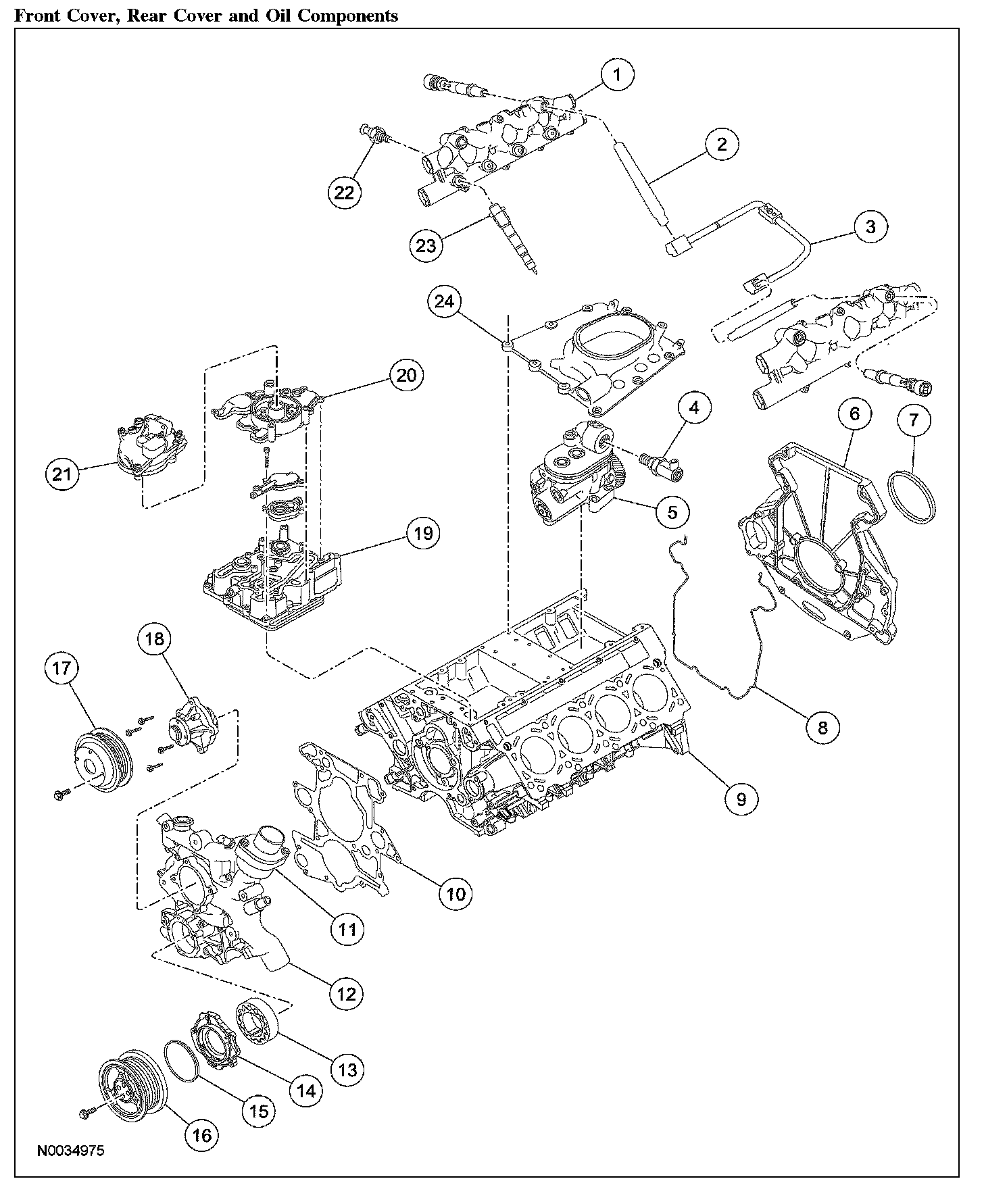

Front Cover, Rear Cover and Oil Components (Part 1):

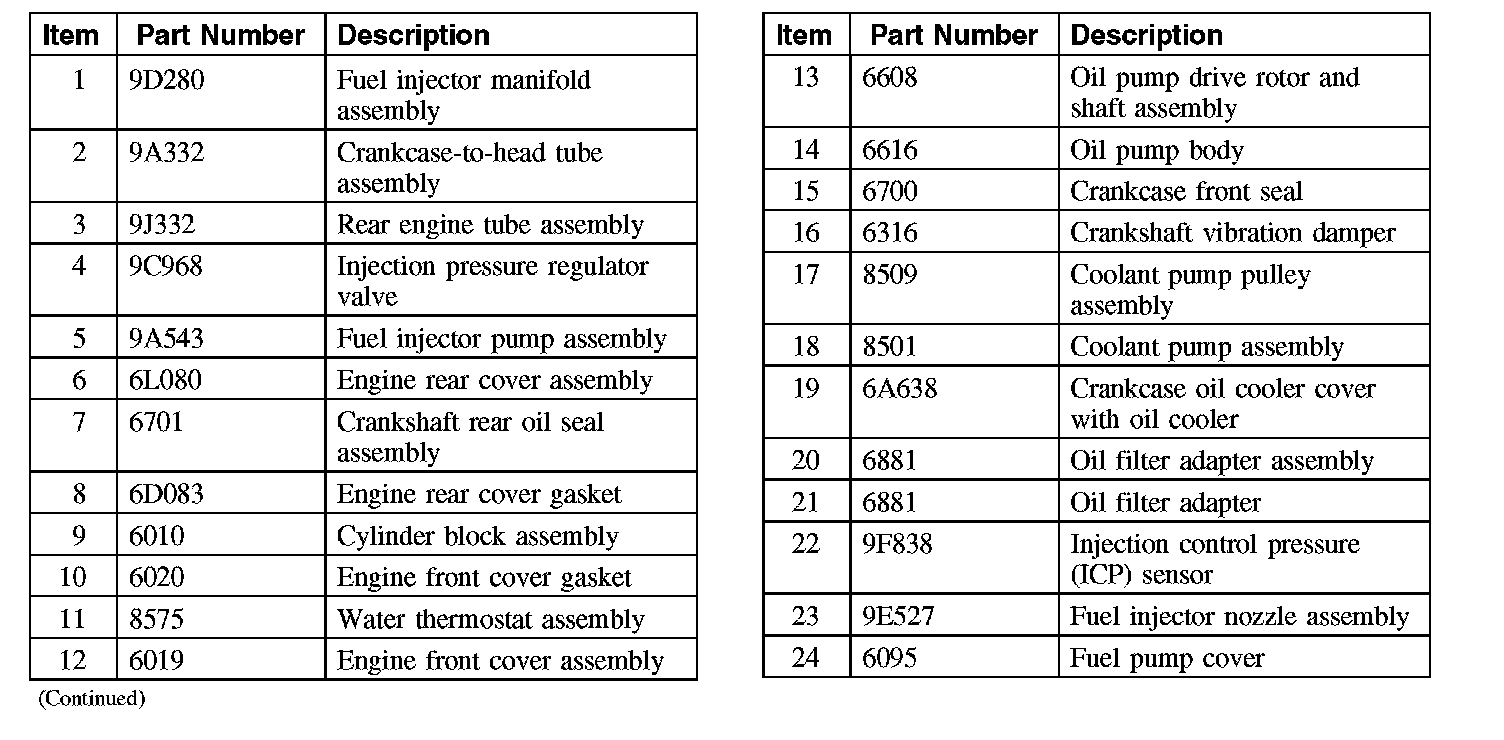

Front Cover, Rear Cover and Oil Components (Part 2):
