Home >> Ford >> 2007 >> E 450 V8-6.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Injector Driver Module

Injector Driver Module

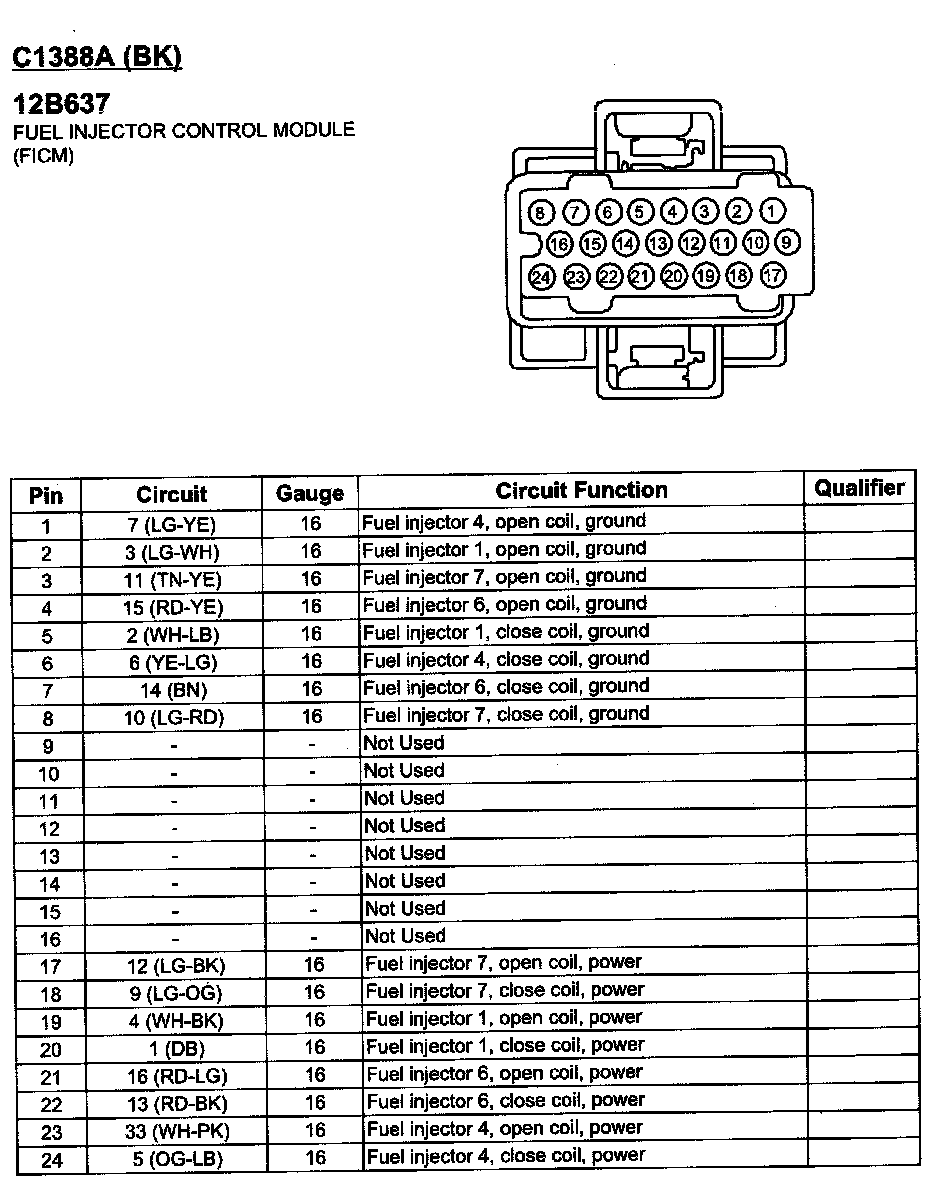

C1388A:

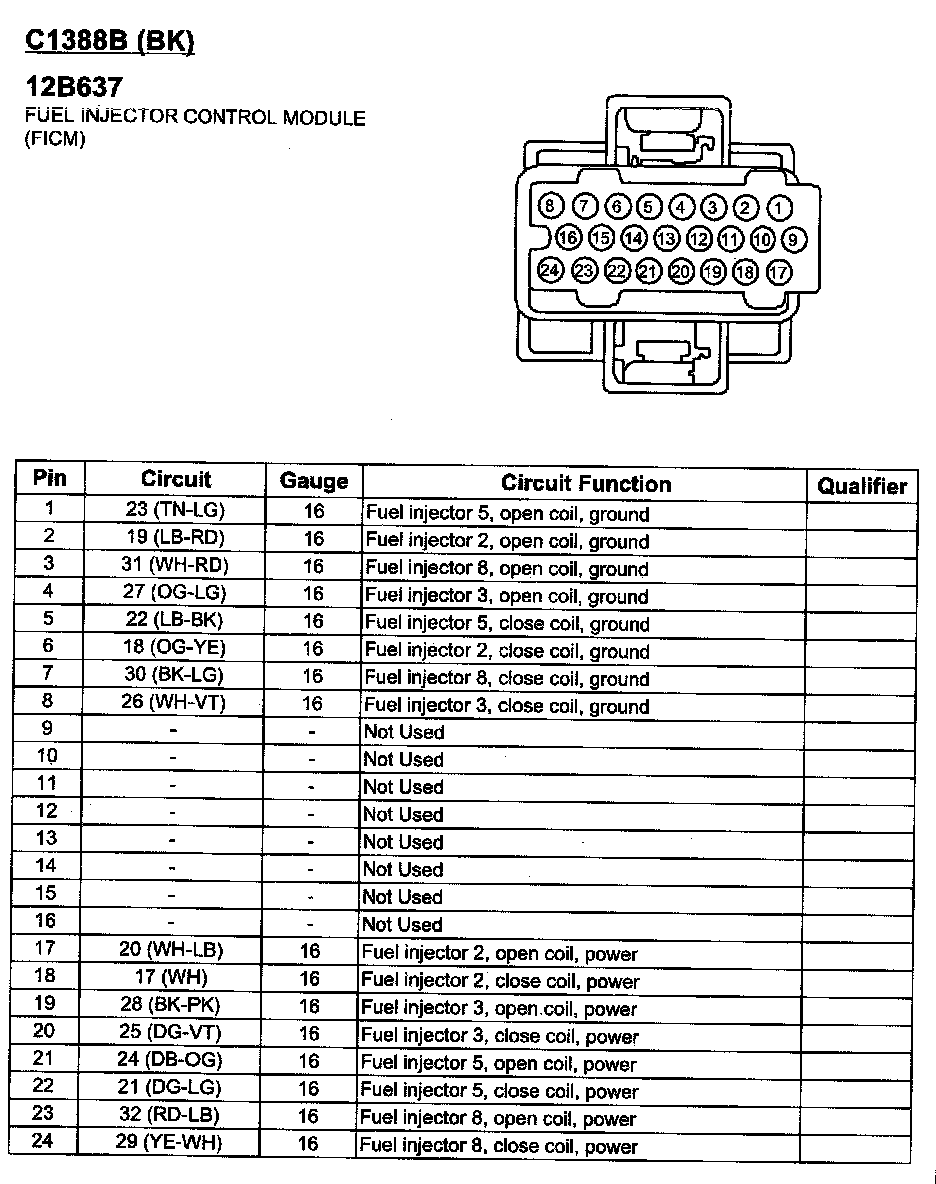

C1388B:

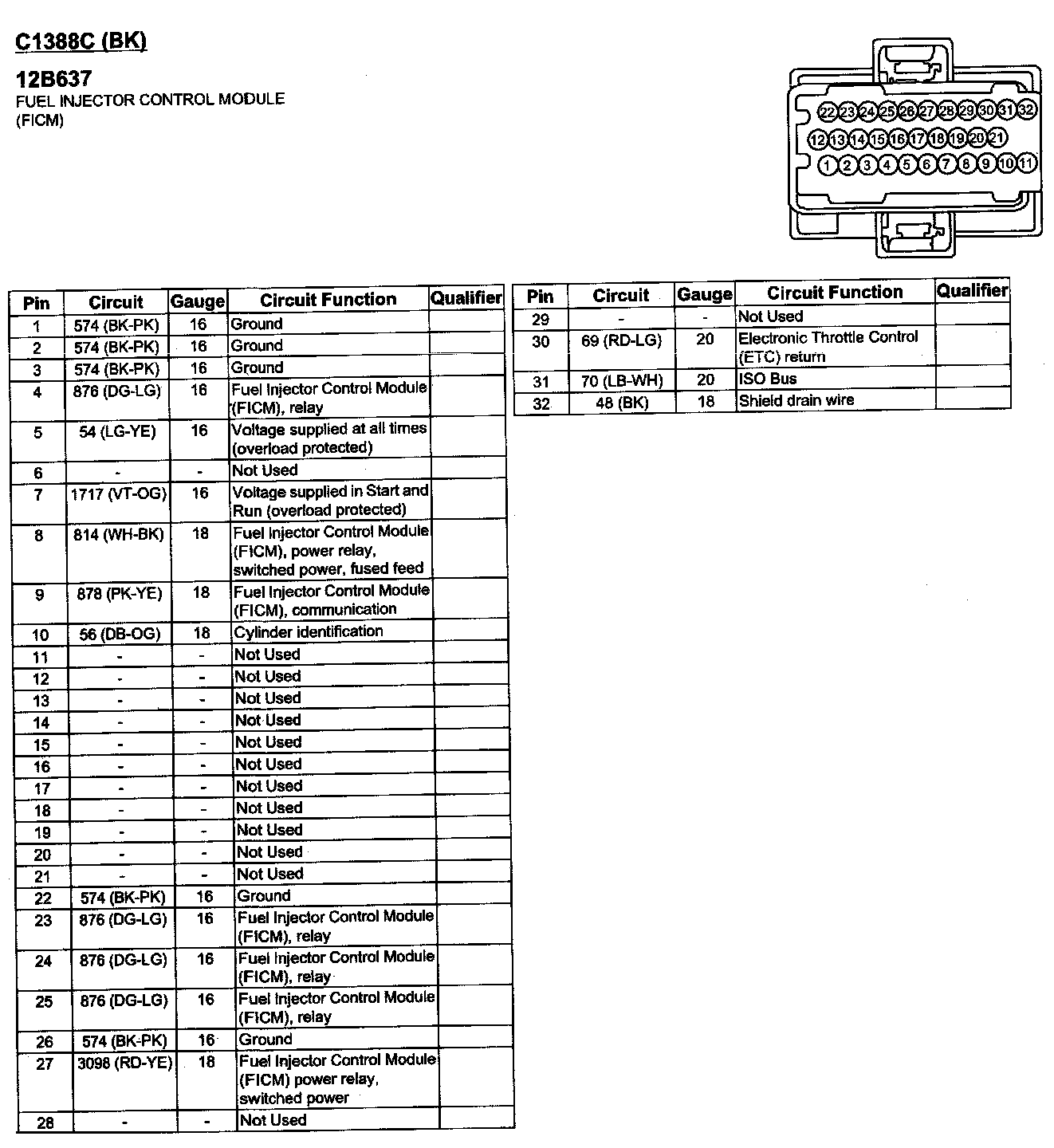

C1388C:
